A2D-JP evaluation board

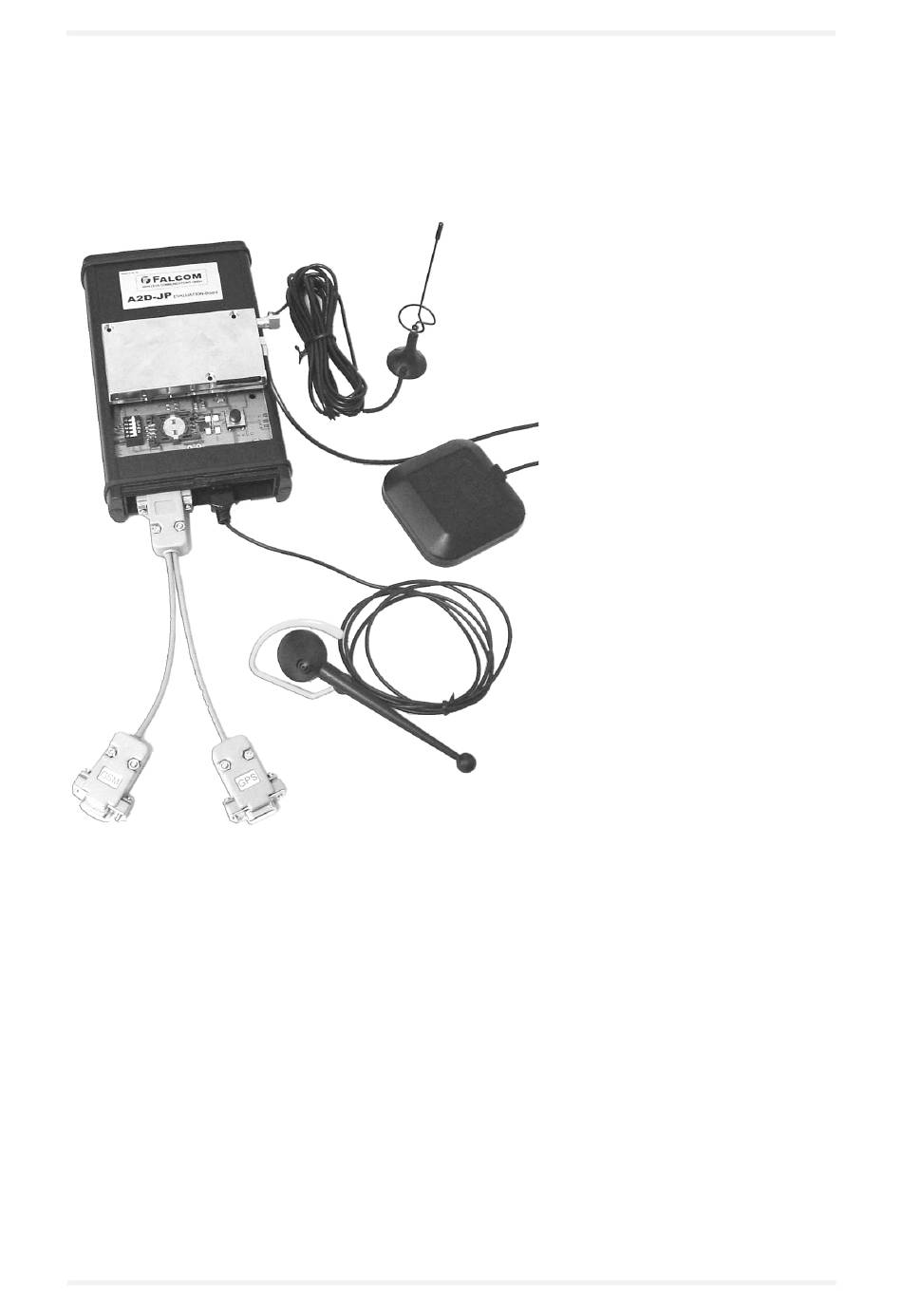

Figure 8: The A2D-JP evaluation board
A2D–JP
The quickest way to get first results with the embedded GSM/GPS
module is the activation by the A2D-JP evaluation board by means
of a terminal program.
Figure 8 shows the A2D-JP evaluation board in complete packaging
i. e.
– A2D-JP evaluation board
– A2D-JP module
– power supply FRIWO type FW 3299 (12 VDC/580 mA)
– GPS antenna ANT-006
– RS232 combined cable KA08
– headset with RJ45 plug
The evaluation board transfers data from GSM module and GPS re-
ceiver to two separate serial RS232 interfaces.
For voice communication by the GSM module there is a headset
