Figure 5: Gpio 1 - FALCOM A2D-JP Description

Description
→ → → → Flash_LED

Figure 5: GPIO 1

A2D–JP
Pin 30 (EN)
This signal is an input of the internal voltage regulator.
❐
Pull to LOW to switch the voltage regulator off (for minimum
current consumption).
❐
Pull to HIGH or leave the signal open if EN is not used.
Pin 27 (GPIO 1 → → → → Flash_LED)
This signal can be used to show the current status of the module:
❐
If GPIO 1 is LOW then the module is off.
❐
If it is continuously HIGH then module is on, but not registered
into a network.
❐
If GPIO 1 is flashing in a 2sec period then the module is on and
registered into a network.
❐
If it flashes in a 1sec period then the module is on and a call is
in progress (incoming or outgoing).

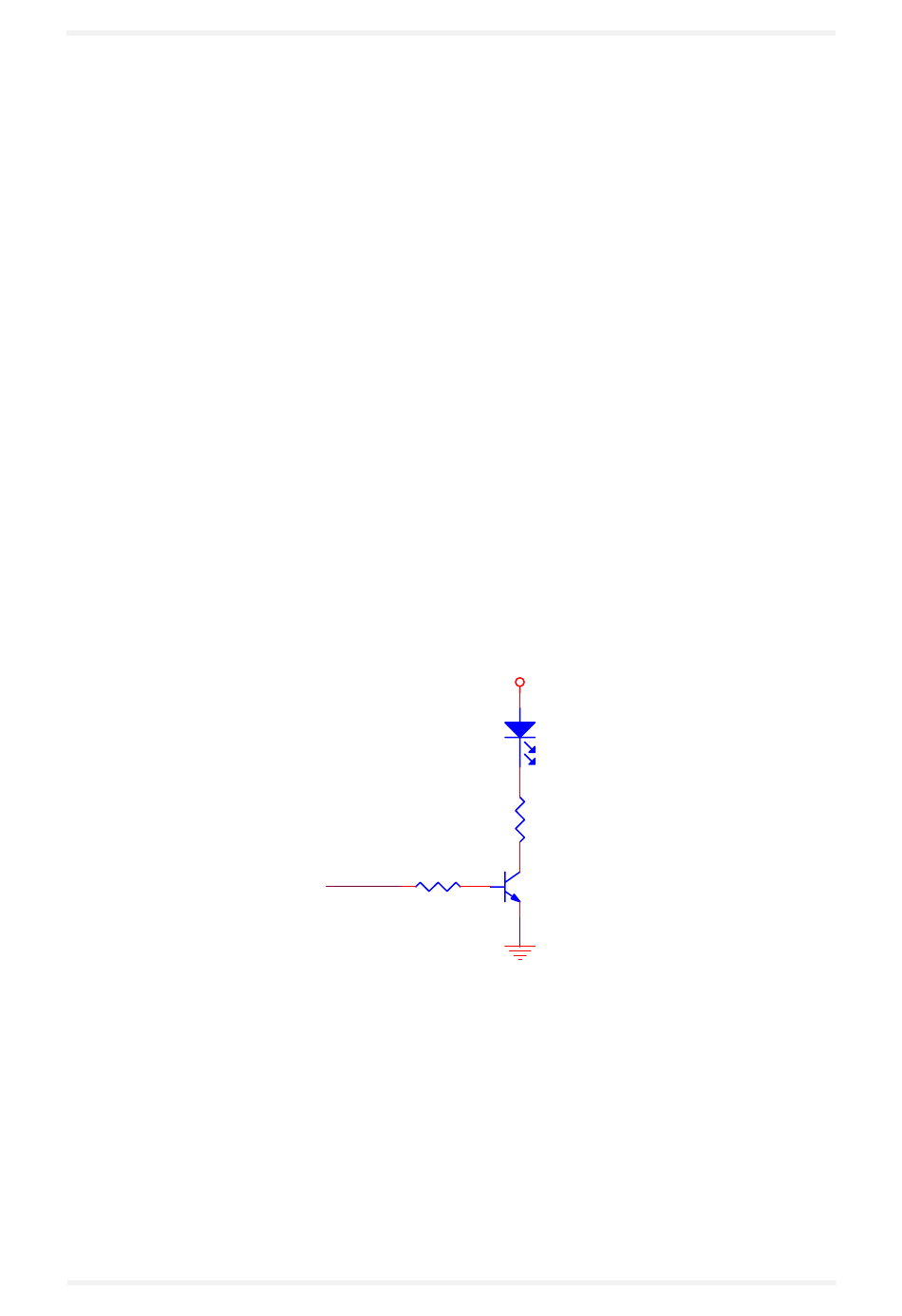

GPIO 1 can be an input into a controller (here it needs to be driven
by an open collector circuit) or used together with a LED (see picture
below):
R 1
GPIO 1
4 7 K
Pin 35 (SIMPREK)
This signal needs to be driven by an open collector circuit. It is used
by the module's firmware to detect a SIM card exchange when the
module is online. A high to low transition means SIM card is inserted
and the module will be able to accept the AT+CPIN command. A low
to high transition means SIM card has been removed, the mo-dule
will de-register from the network and show the unsolicited error code
CME ERROR: 10.
Version 1.03
V C C 3 V
D 1
L E D
R 2
3 3 0
Q 1
N P N
GSM–modem
Side 17
