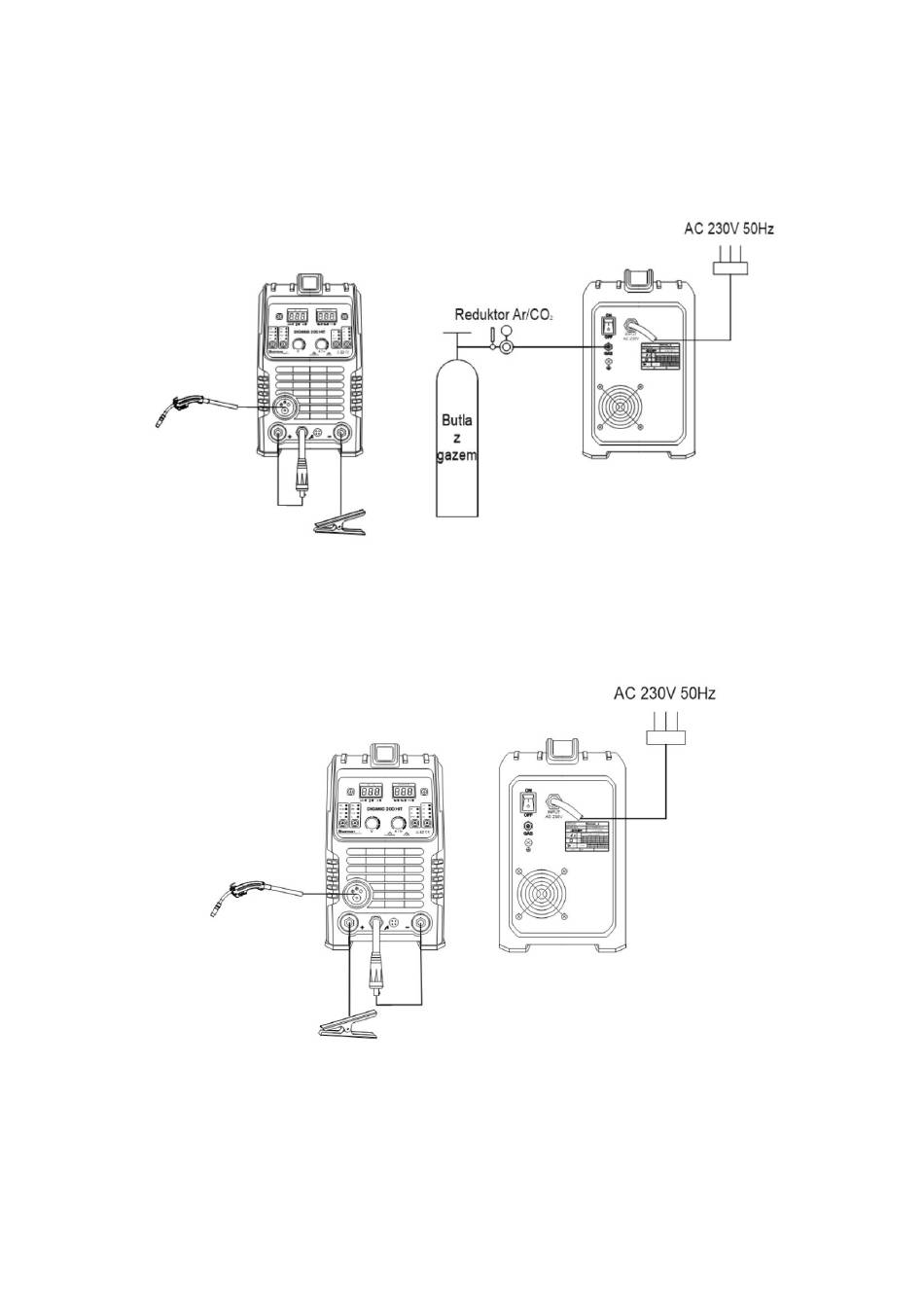

The current clamp of the torch should be connected to the MIG torch socket (1). The gas line from the reducer
should be led and fixed to the gas connector (7) located on the back wall of the device. Insert the polarity change
plug (3) into the "+" socket (2). Connect the negative pole of the source (5) with the welded material using a
cable with a clamp. Connect the plug of the device to a 230V 50Hz power socket.
5.1.3.2 Welding with self-shielding steel wire
The current clamp of the torch should be connected to the MIG torch socket (1). Insert the polarity change plug
(3) into the "-" socket (5). Connect the positive pole of the source (2) with the welded material using a cable with
a tong clamp. Connect the plug of the device to a 230V 50Hz power socket.
5.1.3.3 Welding with a Spool Gun (optional)
The current clamp of the torch should be connected to the MIG torch socket (1). Insert the polarity change plug
(3) into the "+" socket (2). Connect the negative pole of the source (5) with the welded material using a cable
with a clamp. Connect the plug of the device to a 230V 50Hz power socket.
Set the switch (13) inside the feeder chamber to the Spool Gun position.
