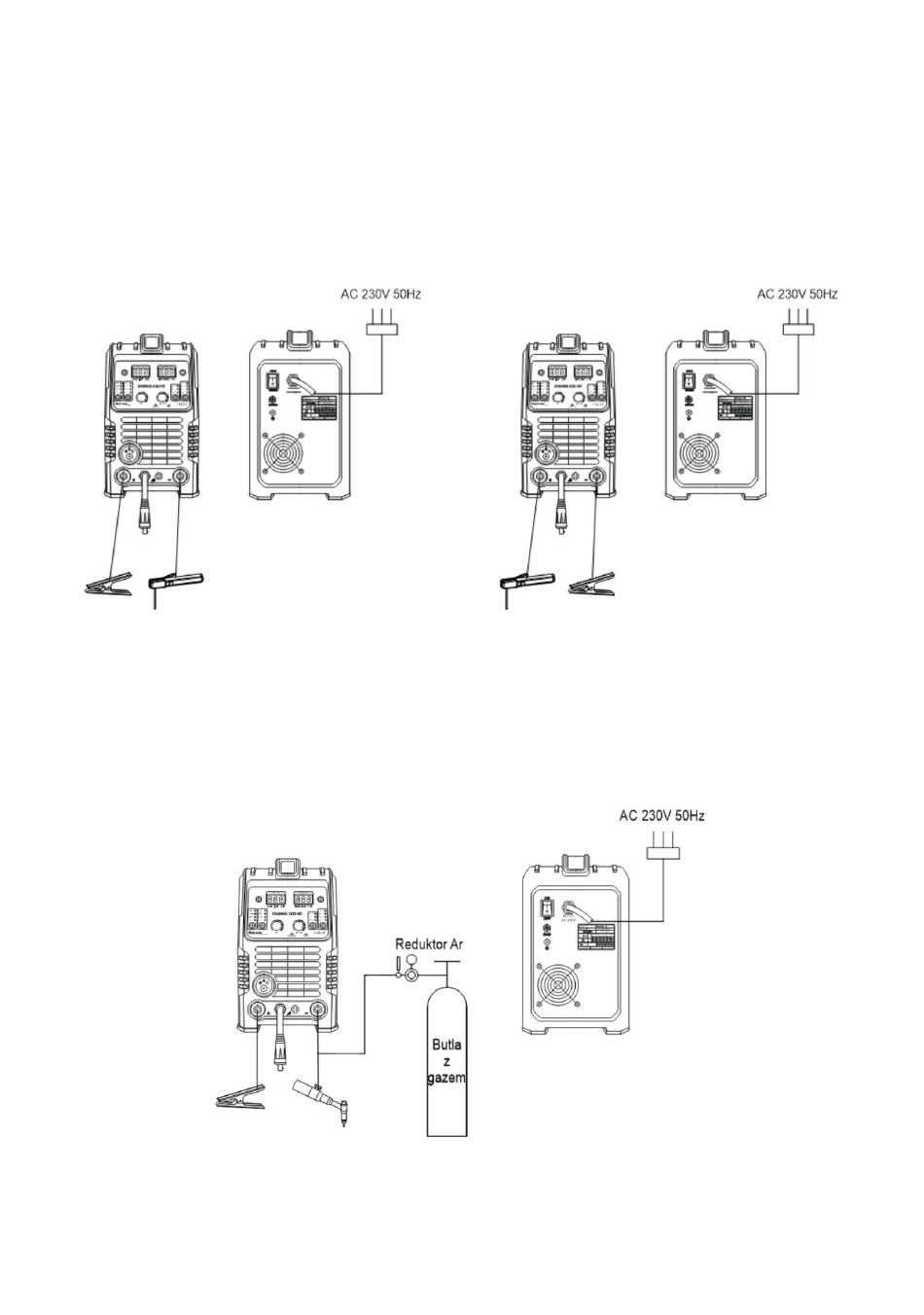

5.1 Connecting the wires
5.1.1 MMA method
The ends of the welding cables should be connected to the sockets (2) and (5) located on the front plate so that
the correct pole for the given electrode is on the electrode holder. The polarity of the welding cables connection
depends on the type of electrode used and is indicated on the packaging of the electrodes (negative polarity
DCEN or positive polarity DCEP). The work clamp must be carefully fastened to the work piece. Connect the plug
of the device to a 230V 50Hz power socket.
5.1.2 TIG method
For welding with this method, it is necessary to use an additional TIG torch. A 200A gas-cooled torch with a
shielding gas control valve is required.
The current terminal of the handle should be connected to the socket with negative polarity (5), and the gas hose
to the reducer on the gas cylinder. Connect the positive pole of the source (2) with the welded material using a
cable with a tong clamp. Connect the plug of the device to a 230V 50Hz power socket.
5.1.3 MIG and braze welding
5.1.3.1 Welding and brazing in shielding gases
DCEN
7
DCEP
