Page 3

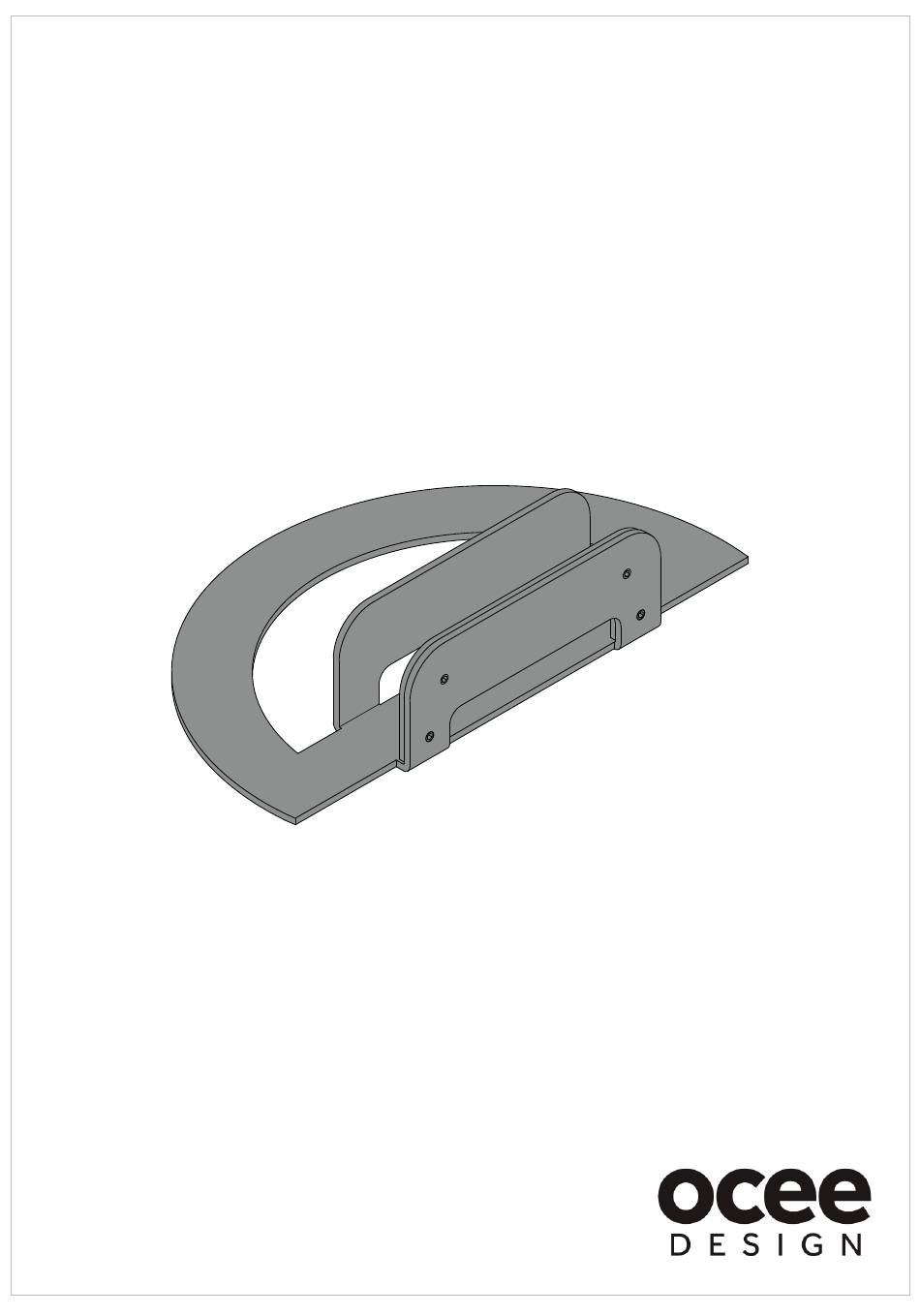

Inner Plate Stabiliser Foot (Half) M8 grub screws (x4) Loosely insert the inner plate into the stabiliser foot. 4mm allen key Den panel Insert the Den panel into the stabiliser foot. Tighten the 4x M8 grub screws to push the inner plate into the Den panel to secure it. This is best done by tightening each screw 2x turns in sequence to ensure the plate is being pushed in an equal distance by each of the screws and is parallel to the vertical plate stabiliser foot.
