Assembly Instructions
DEN.Cube
2 Person
1400w & 1600w Module
SASS-0070 A

Advertisement

loading

Summary of Contents for OCEE DESIGN DEN.Cube

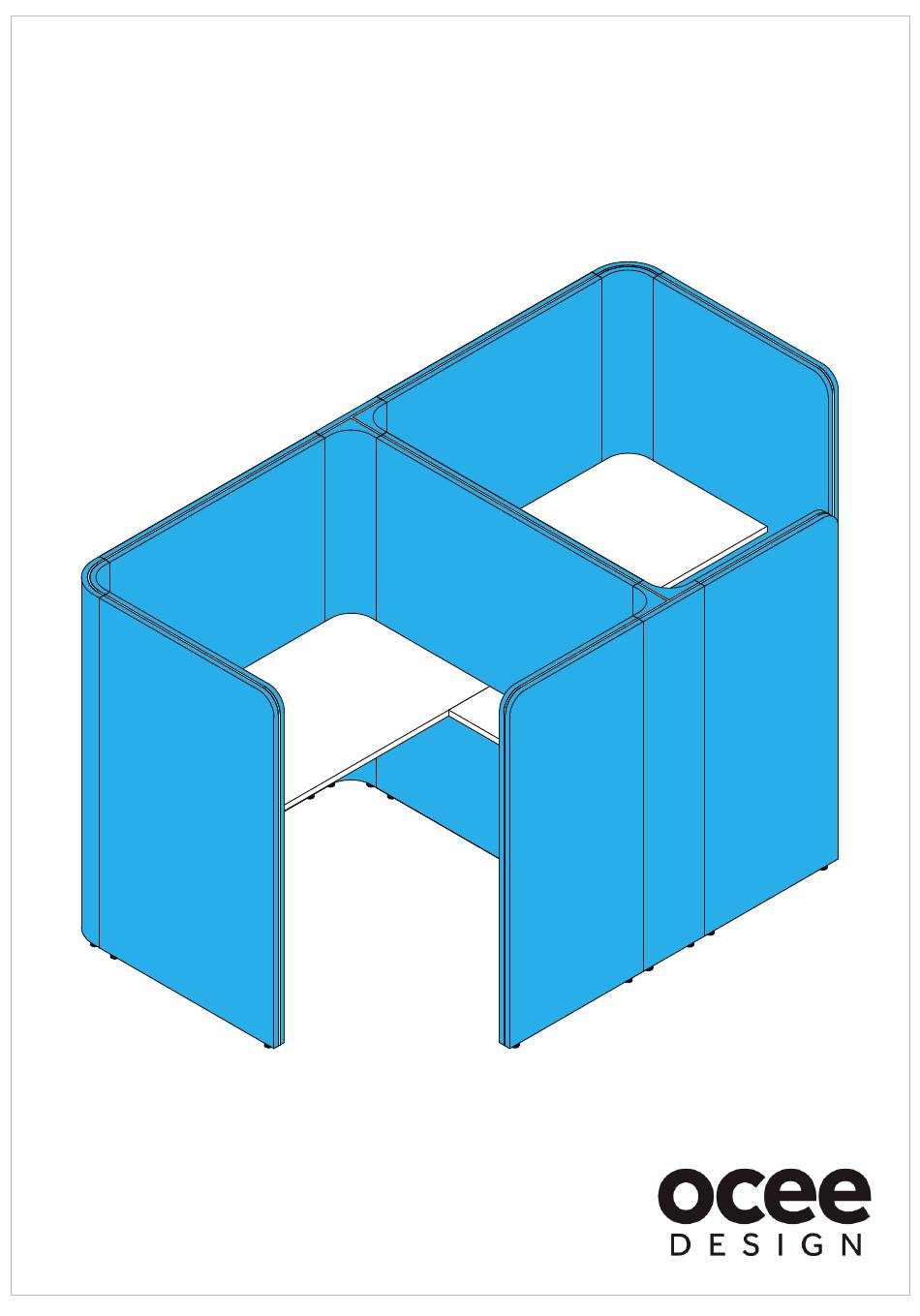

  • Page 1 Assembly Instructions DEN.Cube 2 Person 1400w & 1600w Module SASS-0070 A...
  • Page 2 Shell Components 1400w Den.Cube = 1050w Back Panel 850w Side Panel 2-Way Junction (90°) 1250w Back Panel 1600w Den.Cube = 1250w Back Panel 650w Side Panel 3-Way Junction (90°) Bottom Connector Link Worksurface Components 1400w Den.Cube = 1300w Worksurface Return Worksurface...
  • Page 3 Tools Cushioned Mallet 13mm Spanner 4mm Allen Key/Phillips Screwdriver DWG No: SASS-0070 DEN.Cube Assembly Instructions Revision: A (02/11/15) Drawn by: CE Drawn date: 08/09/15...
  • Page 4 Assembled Configuration Illustration (for Reference) DWG No: SASS-0070 DEN.Cube Assembly Instructions Revision: A (02/11/15) Drawn by: CE Drawn date: 08/09/15...
  • Page 5 Fully tighten both nuts using a 13mm spanner to trap the connector. Bottom Connector Link 1400w Den.Cube = 1050w Back Panel 1600w Den.Cube = 1250w Back Panel Attach the 1050w/1250w (module dependent) back panel (C-1) to the 2-way junction Tap the top of the 1050w/1250w (module dependent) back panel (C-1) with a (B-1) as shown above (see step 1 for method).
  • Page 6 1 for method). Tie the 650w side panel (E-1) to the 3-way junction (F-2) using a bottom connector link (Z) (see step 2 for method). DWG No: SASS-0070 DEN.Cube Assembly Instructions Revision: A (02/11/15) Drawn by: CE Drawn date: 08/09/15...
  • Page 7 You have now fully assembled sub-assembly B, safely secure this sub-assembly until step 13 where it shall be used in the main assembly of the cube. DWG No: SASS-0070 DEN.Cube Assembly Instructions Revision: A (02/11/15) Drawn by: CE Drawn date: 08/09/15...
  • Page 8 1 for method). the 850w side panel (A-2) to the 2-way junction (B-2) using a bottom connector link (Z) (see step 2 for method). DWG No: SASS-0070 DEN.Cube Assembly Instructions Revision: A (02/11/15) Drawn by: CE Drawn date: 08/09/15...
  • Page 9 Bottom Connector Link 1400w Den.Cube = 1050w Back Panel 1600w Den.Cube = 1250w Back Panel Attach the 1050w/1250w (module dependent) back panel (C-2) to the 2-way junction Tap the top of the 1050w/1250w (module dependent) back panel (C-2) with a cushioned (B-2) as shown above (see step 1 for method).
  • Page 10 When fixing the small brackets (Y) to the structure, make sure to pass the machine screws (W) through the 7mm hole. When fixing the Large brackets (X) to the structure, make sure to pass the machine screws (W) through the horizontal slot. 1400w Den.Cube = 1300w Worksurface M6x20 Button 1600w Den.Cube = 1500w Worksurface...
