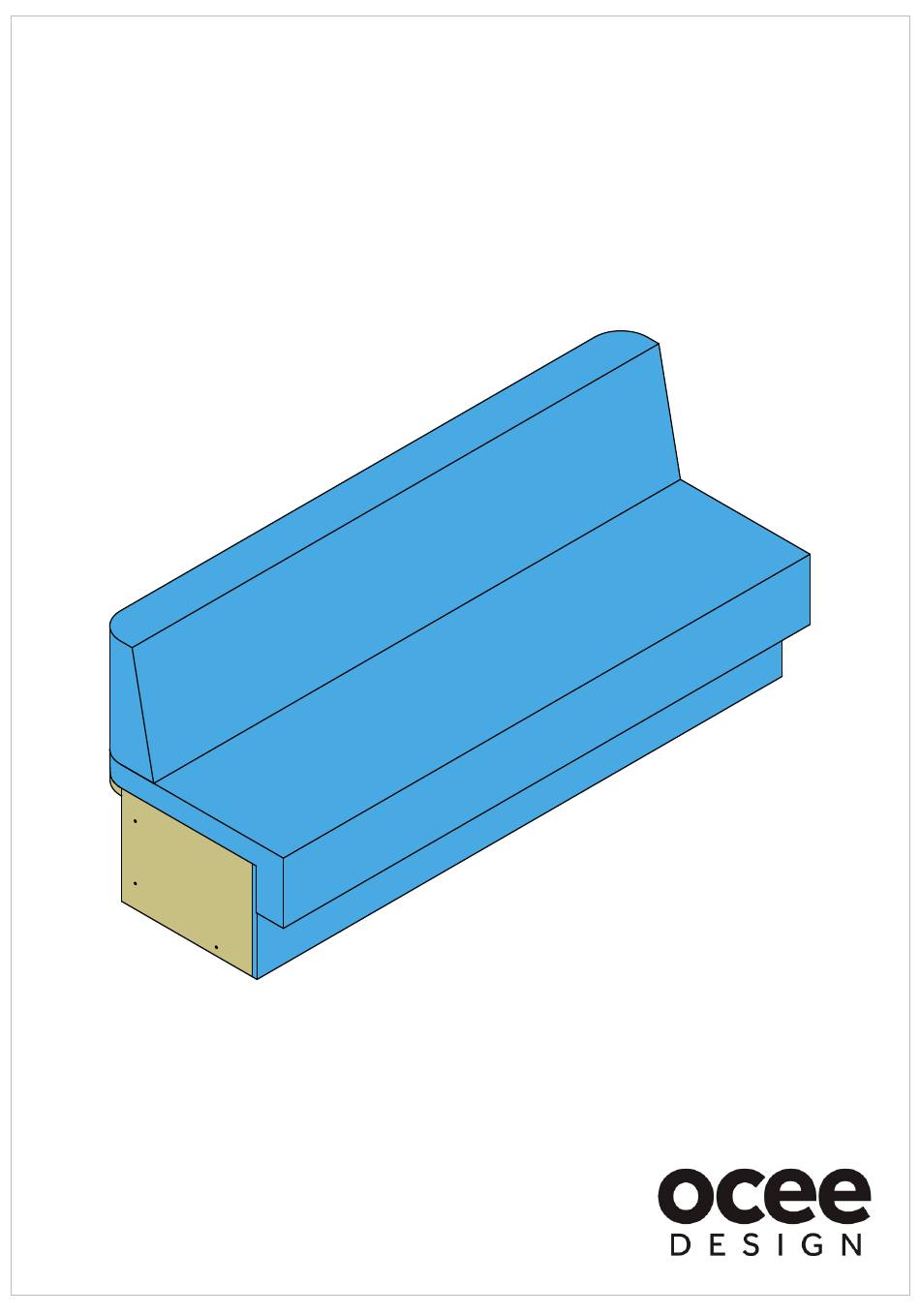

- Page 1 Assembly Instructions Den Seat (Double Module) SASS-0100...
- Page 2 Seat | Pad Seat | Back Rest M6 x 45mm Bolt 30mm Washer Tools 4mm Allen Key/Phillips Screwdriver Bradawl (or something similar, see step 01) DWG No: SASS-0100 DEN Seat Assembly Instructions Revision: - Drawn by: CE Drawn date: 01/12/15...
- Page 3 (Q) through the washers (R) and holes in the side of the base box (A) into the inserts in the bolts (Q) through the washers (R) and holes in the back of the base box (A) into the Den panels. the inserts in the Den panels. DWG No: SASS-0100 DEN Seat Assembly Instructions Revision: - Drawn by: CE...
- Page 4 Lower the back rest (C) onto the seat pad (B). (As shown above) above) If assembling the seats into a Den.Dining shell, repeat steps 1 - 6 for the opposite seat. DWG No: SASS-0100 DEN Seat Assembly Instructions Revision: - Drawn by: CE...
