NetComm CF40MESH Troubleshooting Manual page 14

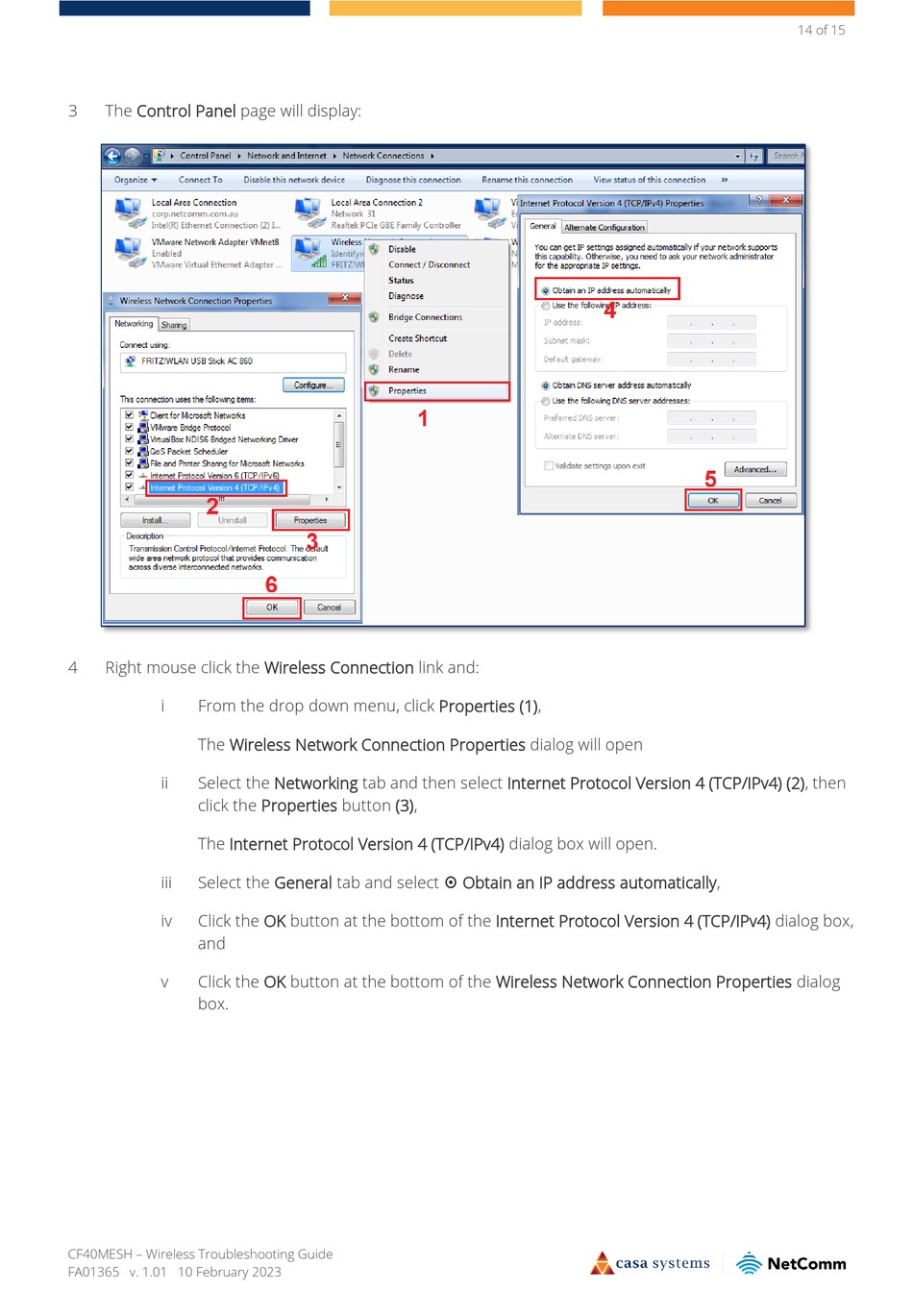

3 The Control Panel page will display:
4 Right mouse click the Wireless Connection link and:
i From the drop down menu, click Properties (1),
The Wireless Network Connection Properties dialog will open
ii Select the Networking tab and then select Internet Protocol Version 4 (TCP/IPv4) (2), then
click the Properties button (3),
The Internet Protocol Version 4 (TCP/IPv4) dialog box will open.
iii Select the General tab and select  Obtain an IP address automatically,
iv Click the OK button at the bottom of the Internet Protocol Version 4 (TCP/IPv4) dialog box,
and
v Click the OK button at the bottom of the Wireless Network Connection Properties dialog
box.
CF40MESH – Wireless Troubleshooting Guide
FA01365 v. 1.01 10 February 2023
14 of 15
