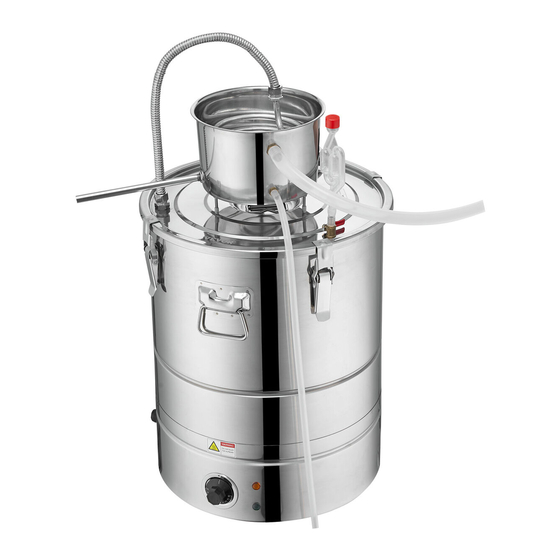

ELECTROTHERMAL STILL
MANUAL
MODEL: 30L/50L
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZL-EH-30S-E and is the answer not in the manual?

Questions and answers

Summary of Contents for VEVOR EZL-EH-30S-E

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ELECTROTHERMAL STILL MANUAL MODEL: 30L/50L We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 3: Technical Data

    Safety instructions of the submersible aquarium pump The manipulation and utilization of our pump are very simple and convenient. The user just needs to pour a suitable height level of water and link the pump with the outlet water pipe and then connect the pump with power supply in accordance with the mark on the label.
  • Page 4 • Always use the transformer provided to run the water pump or consult with your electrician before other transformer is connected. • Do not connect the transformer provided to other appliance. Always unplug the power transformer from the electrical outlet before any cleaning and handling.
  • Page 5 This user manual is applicable to electrothermal still series products. Please read this manual carefully before using the product. Item Part Name Pictue Condenser Keg 1pcs 1pcs Copper Coil 1pcs Fermentation Barrel 1pcs - 4 -...
  • Page 6 Stainless Steel Steam Grid 1pcs Silicone Gasket 2pcs Exhaust Valve 1pcs Wave-filament tube 1pcs Thermometer 1pcs Alcohol Meter 1pcs - 5 -...
  • Page 7 Water Inlet Pipe 1pcs Water Outlet Pipe 1pcs Measuring Cup 1pcs Long Measuring Cup 1pcs Wine Pipe 1pcs Screw M5*35 3PCS Rubber Mat5 3PCS Gasket5 6PCS - 6 -...
  • Page 8 M5 screw nut 3PCS Screw Sleeve 3PCS Rubber Mat13 1PCS Gasket13 2PCS Screw Nut 1pcs Gauze 1pcs Slag Separation Bag 1pcs - 7 -...
  • Page 9: Product Introduction

    You absolutely need it, the heating process is safer and more stable, and the heat conduction effect is better. Automatic constant temperature, durable. Model EZL-EH-30S-U EZL-EH-30S-E Rating voltage 110-120V~ 220-240V~ - 8 -...
  • Page 10 Rating Frequency 60Hz 50Hz Rating power 1800W 1800W Fermenter Capacity Fermenter Size Φ350x350 mm Φ350x350 mm 1-2 h (including Heating 1-2 h (including Heating Alcohol Steaming Time Time) Time) Model EZL-EH-50S-U EZL-EH-50S-E Rating voltage 220-240V~ 220-240V~ Rating Frequency 60Hz 50Hz Rating power 2800W 2800W...
  • Page 11 4. As shown in Figure 4, first install the gasket 13 at the end of the small thread of the cooling pipe, and then install the rubber gasket 13. 5. As shown in Figure 5, pass the cooling pipe through the hole of the cooling tower, then install the gasket 13, and lock it with the G1/4 nut.
  • Page 12 The electric still equipment is installed in the order from bottom to top as follows: 1. Put the filtered wine mixture into the bucket according to the appropriate capacity, cover the lid, and buckle the lid with a tool 2. Place the condenser keg on top 3.
  • Page 13 Please make sure to fix the lid on the barrel, and secure the lid with iron clips. Adjust the position of the cooling tower on the barrel cover, and the connection must be covered with a silicone pad. Install and fix the one-way exhaust valve and other accessories, and tightly connect the condensation tower and the wine outlet pipe, and then install the water inlet pipe and the water outlet pipe in sequence.
  • Page 14 1. After installing the product, the temperature control switch knob is in the position shown in the picture, ready for work. 2. Turn on the power, the green light is on, indicating that the product enters the standby state. 3. Turn the temperature control switch knob clockwise, the yellow light is on, indicating that the heating plate is working and heating starts, and turn the temperature control switch knob to the required temperature.
  • Page 15 Remember not to cut off the water during use. 6. When the Electrothermal still is working, its surface temperature will be very high, so be careful not to touch it to prevent burns. Please wait for the temperature to drop to normal temperature before washing.
  • Page 16: Water Pump

    close to cooling water temperature. Pipe Connection Diagram for Circulating Water via a Water Pump When using circulating water, if the water temperature exceeds 35'c,it is recommended to change thewater, The maximum temperature cannot exceed 40C, as the production fluid temperature isdetermined by the input cooling water temperature.
  • Page 17: How To Use

    How to Use Distill Liquor 1.Choose good common rice for steaming, add the steamed rice in the ratio of 500g grain, 1kg water and 5g distilled yeast, mix well and then carry out liquid fermentation. 2.Fermentation temperature of 20-25 C, stirring once a day, fermentation 10-20 days. 3.Fill the fermented grain into the matching filter bag and pour the liquid produced during the fermentation process directly into the barrel Then place the bag containing the grain directly on the grate (to prevent gumming up the pot).
  • Page 18 Store the wine in a cool place after bottling. Wiring Diagram - 17 -...
