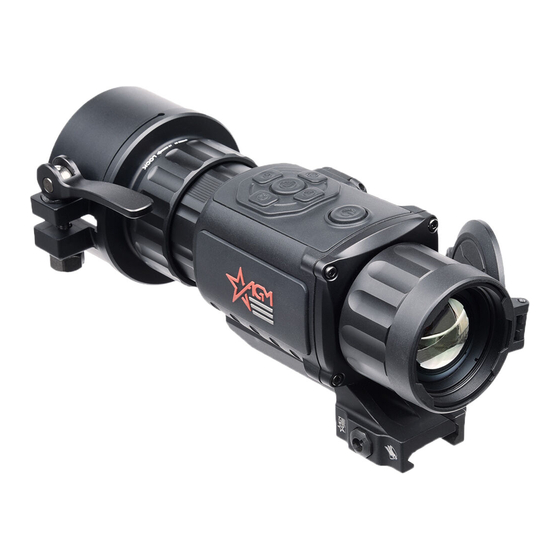

AGM Global Vision RATTLER TC35-640 User Manual

Thermal imaging clip-on
Hide thumbs Also See for RATTLER TC35-640:
Table of Contents

Advertisement

Quick Links

Download this manual
RATTLER
TC35-640
TC50-640
THERMAL IMAGING CLIP-ON
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RATTLER TC35-640 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGM Global Vision RATTLER TC35-640

Summary of Contents for AGM Global Vision RATTLER TC35-640

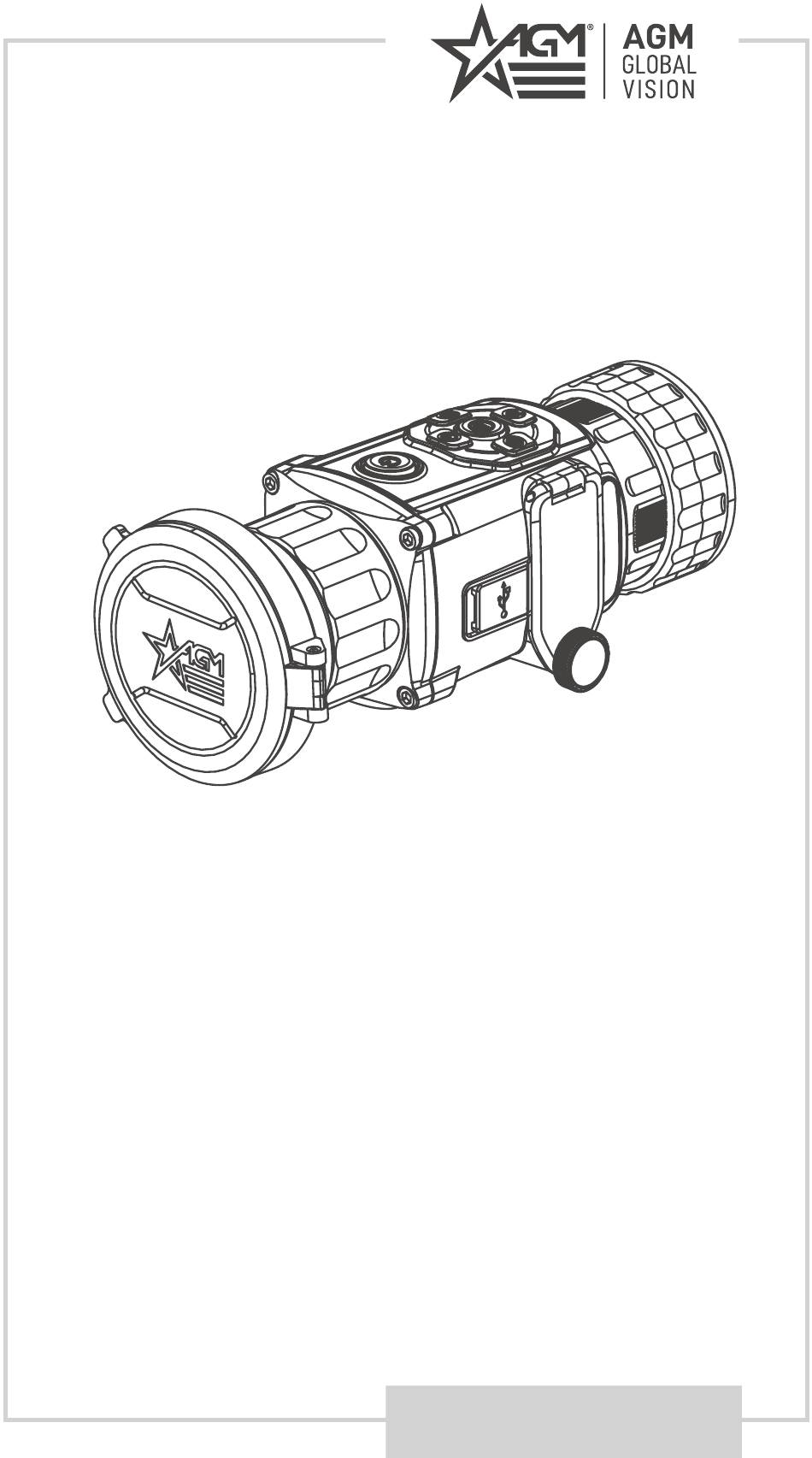

  • Page 1 RATTLER TC35-640 TC50-640 THERMAL IMAGING CLIP-ON USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S.
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info INDUSTRY CANADA ICES-003 COMPLIANCE This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. RATTLER TC35-640/TC50-640 USER MANUAL...

  • Page 4: Table Of Contents

    1.2 Standard Components 1.3 Optional Equipment 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    WARNING: Disassembling of the device is prohibited, except in authorized repair centers. WARNING: Please remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage. RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 6 Clean the lens surfaces with the lens tissue or a dry cloth! LEGAL NOTICE Before attaching to weapons, check the regional legal regulations in the area of application. The attachment to a weapon is always the sole responsibility of the user. AGM Global Vision...

  • Page 7: General Information

    1 GENERAL INFORMATION SYSTEM DESCRIPTION The AGM Rattler TC35-640 and Rattler TC50-640 are the compact thermal imaging clip-on systems that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC35-640 and Rattler TC50-640 clip-ons have high sensitivity 12μm thermal detector with 640×512 resolution and 1024×768 OLED monitor, which...

  • Page 8: Key Features

    • 5-year warranty 1.3 STANDARD COMPONENTS The Rattler standard components are shown in Figure 1-2 and listed in Table 1-2. The ITEM column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. STANDARD COMPONENTS AGM Global Vision...

  • Page 9: Optional Equipment

    Eyepiece for Rattler TC 6328ERC1 TS Kit for Rattler TC Family: Eyepiece for Rattler TC (Part # 6328ERC1) with AGM-2113 6327CE31 (Part # 6306LSR1). Converts CO into Scope. AGM Power Bank 6308EPB1 6610HCS1 Hard Case for Storage/Transportation RATTLER TC35-640/TC50-640 USER MANUAL...

  • Page 10: Operating Instructions

    Align the polarity symbols on the batteries as shown below. 3. Close the battery cover. Turn the battery cover knob clockwise until stop. When the device is on a battery charge level is displayed on the status bar. FIGURE 2-1. BATTERY INSTALLATION AGM Global Vision...
  • Page 11 Each button is responsible for some functions selected by short press or long press of the button. Pushing a button for 3+ second is considered “Long Press/ Hold.” CAPTURE/UP SHUTTER/RIGHT CORRECTION/DOWN POWER MODE/LEFT MENU/SELECT FIGURE 2-3. CONTROL BUTTONS RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 12 POWER button again. When the standby mode is turned off, the normal operation of the device is quickly restored. 2.1.8 ON-SCREEN DISPLAY Press the MENU button in the view mode to display or hide the On-Screen Display (OSD) information. AGM Global Vision...
  • Page 13 In the upper left corner, the recording time displays. Hold the CAPTURE button again to stop recording. Image Capture Press the CAPTURE button in the view mode, to capture the image. RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 14 The day scope front adapters are not recommended for installing the Rattler TC on firearms with heavy dynamic recoil (.308 Win or stronger). NOTE: The Rattler TC cannot be attached to scopes that include focus rings on the housing of the objective lens. AGM Global Vision...
  • Page 15 1. Turn the lever (A) of adapter (B) backwards to loosen the adapter clamping device. 2. Slide the Rattler TC with the adapter onto the lens of the day scope (C) as far as it goes. RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 16 1. Remove the Rattler from the weapon. 2. With the clamping device unlocked (as shown in Figure 2-8), push the cam (E) towards the arrow, which will cause the nut (D) to slide out of its hole. AGM Global Vision...
  • Page 17 1. Rotate the fixing ring (Figure 2-9, A) of clip-on output lens (B) counter clockwise to remove it. 2. Align the optional monocular eyepiece (C) with the grooves (D) of device, and rotate the fixing ring of eyepiece (E) clockwise to tighten it. FIGURE 2-9. EYEPIECE REPLACEMENT RATTLER TC35-640/TC50-640 USER MANUAL...

  • Page 18: Main Function

    Recognition mode and Jungle SCENE MODE mode. Jungle 5 Types of Reticle On/OFF. Reticle type Reticle, 4 RETICLE and reticle color selection. Colors, Reticle OFF Auto FFC/ Select the Flat Field Manual FFC/ IMAGE CALIB. Correction (FFC) mode. External AGM Global Vision...
  • Page 19 2. Select Battery Voltage menu item, and press the MENU button switch the voltage. Select 3V battery voltage for use with CR123A batteries; select 3.7V battery voltage for use with RCR123A rechargeable batteries. RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 20 Jungle mode ( ) is more suitable for hunting environment because of the highlight function of small objects. 3. Press button to move to another menu item or hold the MENU button to exit a menu. AGM Global Vision...
  • Page 21 1) In the reticle setting interface select Distance. 2) Press the MENU button to select the digit you want to change (color of selected digit will changed to the orange). 3) Press buttons to change the number. FIGURE 2-12. RETICLE SETTINGS RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 22 The window “Save the parameters?” will appear. – OK: Save the settings and exit. – CANCEL: Exit without saving the settings. NOTE: There are 5 zeroing settings in total, and you can configure reticle, distances and corrections in each reticle group. AGM Global Vision...
  • Page 23 1. Hold the MENU button to show the menu. 2. Select DPC menu item and press the MENU button 3. Press buttons to move the cursor to the dead pixel. 4. Hold the MENU button to correct the dead pixel. RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 24 Restore menu item and press the MENU button to restore the device to defaults according to the prompt. 2.2.16 LANGUAGE SETTING You can select different languages of user interface. 1. Hold the MENU button to show the menu. AGM Global Vision...
  • Page 25 Press buttons to change the number. Each target height preset can be modified from 0.1 to 9.9 m. Press the MENU button to confirm. 3) Hold the MENU button to save settings and exit target setting. RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 26 2. Mount the Rattler TC on the day scope. Aim at the center of the target and shoot again. 3. Press buttons together in the view mode to display the Electronic Accuracy Correction interface. AGM Global Vision...
  • Page 27 (previous aiming position), move the image to the right by pressing button 2 times (the X value will increase by two), and move the image up by pressing button 3 times (the Y value will decrease by three). RATTLER TC35-640/TC50-640 USER MANUAL...

  • Page 28: Client Software Introduction

    User can change such image parameters as brightness, contrast, palettes directly via phone or tablet as well as record video on phone/tablet memory. Device [Rattler TC50-640] FIGURE 2-15. CLIENT SOFTWARE AGM Global Vision...

  • Page 29: Maintenance

    3. Turn on the device. Make sure the Wi-Fi hotspot function is disabled. 4. Open the detected disk (USB drive) in file manager program. Copy the unzipped digicap.dav file and paste it to the root directory of the device. RATTLER TC35-640/TC50-640 USER MANUAL...

  • Page 30: Troubleshooting

    2. If you use other USB cables, make sure the cable length identify the is no longer than 1 m. Rattler TC. 3. Check if the Wi-Fi function is enabled. If so, go to OSD menu and turn off Wi-Fi. AGM Global Vision...

  • Page 31: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 32 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...

  • Page 33: Specifications

    Rechargeable Batteries (up to 4.2V) (up to 4.2V) Operating Time (25°C) Up to 4.5 hours (WiFi off) Up to 4.5 hours (WiFi off) External Power Supply 5 VDC/2 A, USB Type-C 5 VDC/2 A, USB Type-C RATTLER TC35-640/TC50-640 USER MANUAL...
  • Page 34 153 × 78 × 66 mm Dimensions (6.0 × 2.4 × 2.3 in) (6.0 × 3.1 × 2.6 in) Weight (w/o batteries) 0.41 kg (0.92 lb) 0.49 kg (1.08 lb) All data subject to change without notice. AGM Global Vision...
  • Page 36 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988..560.0326 info@agmglobalvision.eu www.agmglobalvision.eu DOWNLOAD AGM CONNECT APP: Google Play Store Apple App Store AGMglobalvision.com...
