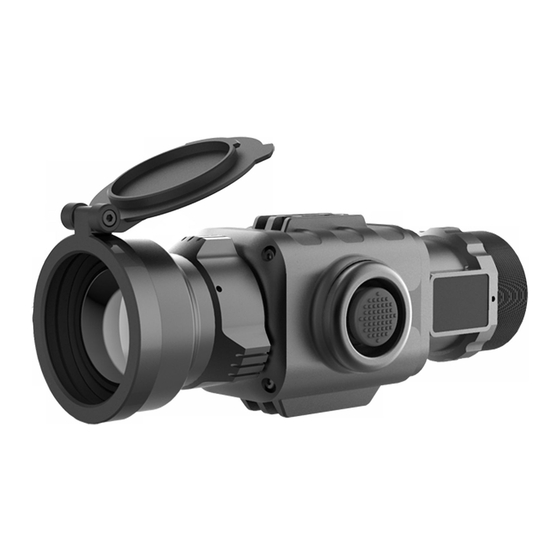

AGM Global Vision ANACONDA-MICRO User Manual

Thermal imaging clip-on system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ANACONDA-MICRO
THERMAL IMAGING CLIP-ON SYSTEM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANACONDA-MICRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGM Global Vision ANACONDA-MICRO

Summary of Contents for AGM Global Vision ANACONDA-MICRO

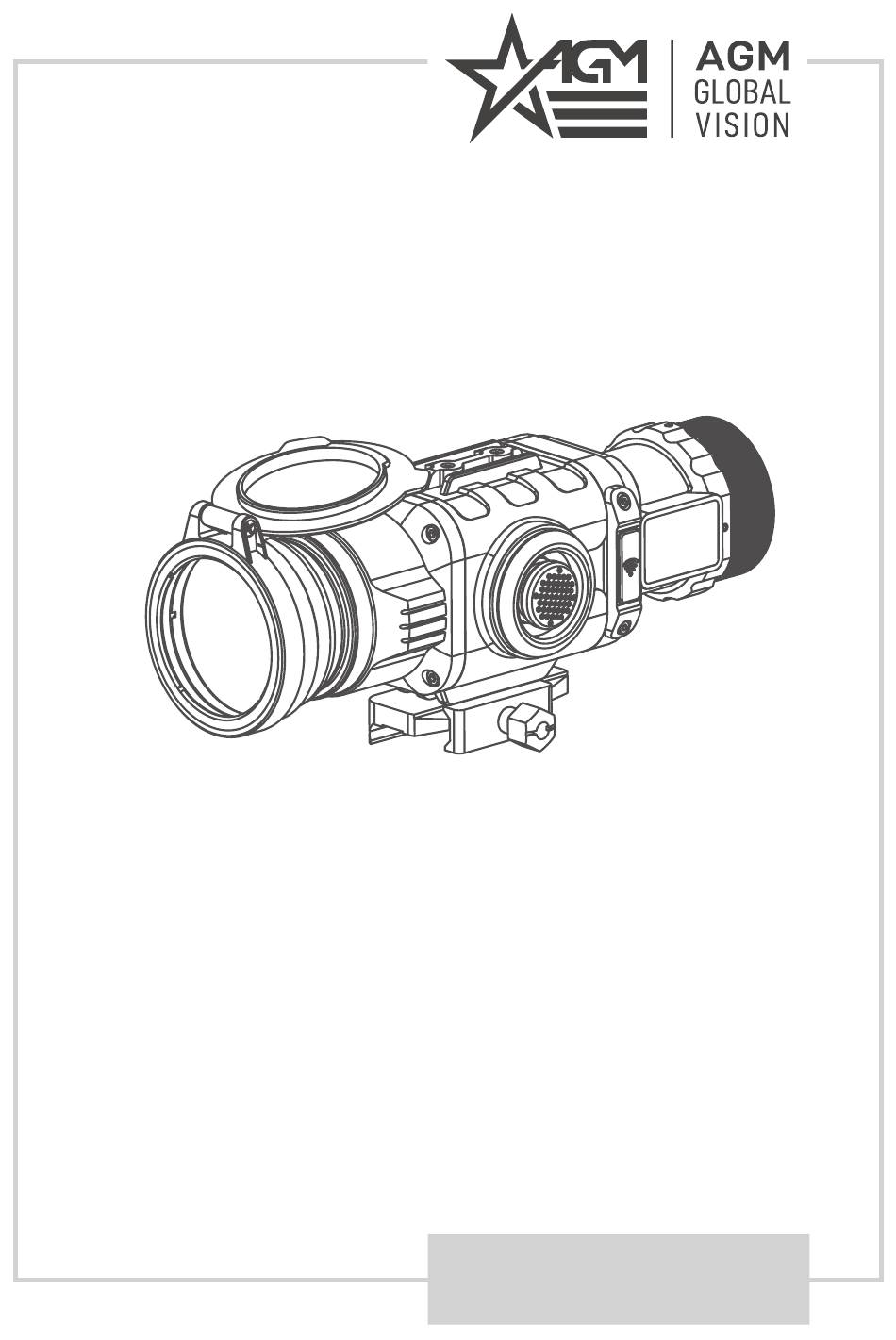

  • Page 1 ANACONDA-MICRO THERMAL IMAGING CLIP-ON SYSTEM USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S. embargoes and sanctions.

  • Page 3: Table Of Contents

    1. GENERAL INFORMATION 1.1 System Description 1.2 Main Features 1.3 Main Parts and Components 2. OPERATING INSTRUCTIONS 2.1 Installation and Mounting 2.2 Controls and Indication 2.3 Operating 3. WARRANTY INFORMATION 3.1 Warranty Information and Registration 4. SPECIFICATIONS 4.1 Specifications Anaconda-Micro USER MANUAL...

  • Page 4: Safety Summary

    Clean the lens surfaces with the lens cloth or with the napkin! LEGAL NOTICE: Before attaching to weapons, check the regional legal regulations in the area of ap- plication. The attachment to a weapon is always the sole responsibility of the user. AGM Global Vision...

  • Page 5: General Information

    Video output for external monitor or recorder • Limited 3-year warranty 1.3 MAIN PARTS AND COMPONENTS The Anaconda-Micro is shown in Figure 1-1. The ITEM column of Table 1-1 indicates the number used to identify items in Figure 1-1. Anaconda-Micro USER MANUAL...
  • Page 6 15 (16, 17) USER MANUAL FIGURE 1-1. ANACONDA-MICRO MAIN PARTS AND COMPONENTS TABLE 1-1. ANACONDA-MICRO MAIN PARTS AND COMPONENTS ITEM DESCRIPTION ITEM DESCRIPTION Lens Cover Video Cable Objective Focus Ring Lens Tissue Mount User Manual Operation Joystick Carrying Bag Wi-Fi Antenna...

  • Page 7: Operating Instructions

    Turn the battery cover knob counterclockwise until stop. The latches from both sides of the cover will pull out. Replace the battery cover and press it until its clicking position. (see the Figure 2-1, CLOSE position). Make sure the cover is closed on both sides. Anaconda-Micro USER MANUAL...
  • Page 8 Please do not use batteries of different types or batteries with various charge levels. 2.1.3 INSTALLING THE ANACONDA-MICRO ON A PICATINNY/WEAVER RAIL The Anaconda-Micro can be attached to the Picatinny-style rail. To do this, loosen the fixation screw of the mount (Figure 2-4, A). Place the clip-on onto the Picatinny rail, and verify that the mount aligns with the rail.
  • Page 9 1. Screw the day scope adapter (A) onto the Anaconda’s attachment place thread (B). 2. Turn the lever (C) backwards to loosen the adapter clamping device. 3. Slide the Anaconda-Micro with the DSA onto the lens of the day scope as far as it goes.
  • Page 10 Connect the external battery as follows (refer to Figure 2-7): 1. Open the cover of the Anaconda-Micro connectors. 2. Plug the USB cable to the micro-USB connector of the Anaconda-Micro. Plug the other end of the cable to the external battery.

  • Page 11: Controls And Indication

    2.2.1 CONTROLS ATTENTION: The main operations are performed through the operation joystick. The Anaconda-Micro controls are shown in Figure 2-9. The ITEM column of Table 2-1 indicates the number used to identify items in Figure 2-9. FIGURE 2-9. CONTROLS TABLE 2-1. CONTROLS...
  • Page 12 Picture in inset window under PIP mode is 2X digital zoom. CONTRAST Press the joystick Up/Down to change display contrast from 0 to 9. SHARPNESS Select one of three sharpness levels (Smooth/Normal/Sharp) with a short press of the joystick Up/Down. AGM Global Vision...
  • Page 13 STADIAMETRIC RANGEFINDER Anaconda-Micro clip-ons are equipped with a stadiametric rangefinder which allows the user to estimate approximate distance to an object of known size. You will see on the display: measurement bars, icons of three reference objects and respective distances for the three objects.
  • Page 14 Off. In the automatic mode the need for calibration is based on software algo- rithm, calibration starts automatically. When choose Off, user will do calibration manually by either lens cover(silent without shutter) or press middle button (with shutter). Manual calibration function is in Quick Menu. AGM Global Vision...
  • Page 15 Press the joystick Up/Down to select units of measurement (Yards or Meters). DEFECTIVE PIXEL REPAIR Press the joystick Up/Down then close lens cover to repair defective pixel. Defective pixels are found by software algorithm. INFO This option allows the user to view the following information about the imager. Anaconda-Micro USER MANUAL...

  • Page 16: Operating

    To turn the unit on push and hold the operation joystick. 2.3.2 FOCUSING Anaconda-Micro has the ability to focus over either long or short-range distances. Rotate the front lens to focus it until the image becomes clear and sharp. AGM Global Vision...
  • Page 17 1. Install the CAM802 client software on smartphone first. It can be located on the App Store for Iphone or here (https://apkpure.com/cam802/com.linkcard.cam802) for Android. 2. Turn on Wi-Fi function of Anaconda-Micro. Go into phone settings and connect to the unit via Wi-Fi. The default password is ‘12345678’. Anaconda-Micro...
  • Page 18 1. Aiming your daytime scope to the middle of target and shoot. This is test process of control good daytime scope accuracy. 2. Install the Anaconda-Micro on the rifle scope. Aim to the thermal target and shoot again. 3. Measure horizontal distance (X) and vertical distance (Y) between shoot and aiming position from step 2.
  • Page 19 (X-, Y-). Anaconda-Micro is preset in position X:0, Y:0. When the point of impact with Anaconda-Micro is on the right side of previous point of impact (previous aiming position), change value X (X- => press the joystick Down), decrease X value, and vice versa.
  • Page 20 Change the cotton swab after each circular stroke. Repeat this step until the glass surfaces are clean. 2.3.10 PREPARING FOR EXTENDED STORAGE To prepare the Anaconda-Micro for extended storage: 1. Remove the batteries. 2. Clean the device and accessories.

  • Page 21: Warranty Information

    AGM Global Vision, at its discretion, will either repair or replace the product; such ac- tion on the part of AGM Global Vision shall be the full extent of AGM Global Vision’s liability, and the Customer’s sole and exclusive reparation. This warranty does not cover a product if it has been (a) used in ways other than its normal and customary manner;...
  • Page 22 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential damages, lost profit, whether such dam- including, but not limited to, lost income, lost revenue, or...

  • Page 23: Specifications

    4 SPECIFICATIONS 4.1 SPECIFICATIONS The following tables provide information pertaining to the operational, electrical, mechanical, optical, and environmental characteristics of the Anaconda-Micro. TABLE 4-1. SPECIFICATIONS CLIP-ON MONOCULAR Resolution 384x288 Detector 17μm, Uncooled, 50Hz Lens System 50 mm; F/1.1 Optical Magnification 2.6x...
  • Page 24 AGM Global Vision MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +44.292.255.0509 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
