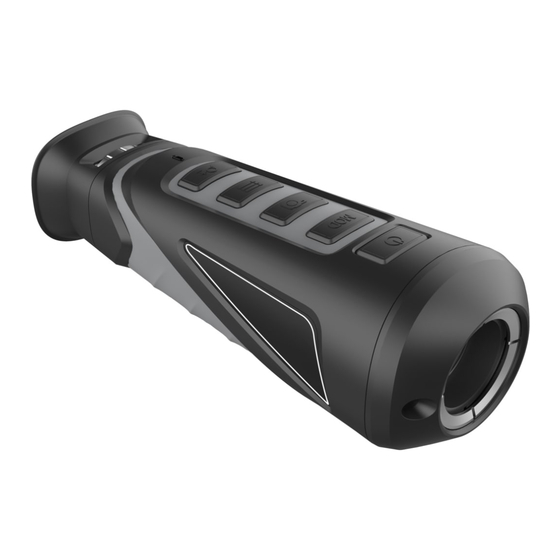

AGM Global Vision ASP TM25-384 User Manual

Thermal imaging monocular
Hide thumbs Also See for ASP TM25-384:
Table of Contents

Advertisement

Quick Links

ASP TM25-384
ASP TM35-384
ASP TM35-640
THERMAL IMAGING MONOCULAR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP TM25-384 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGM Global Vision ASP TM25-384

Summary of Contents for AGM Global Vision ASP TM25-384

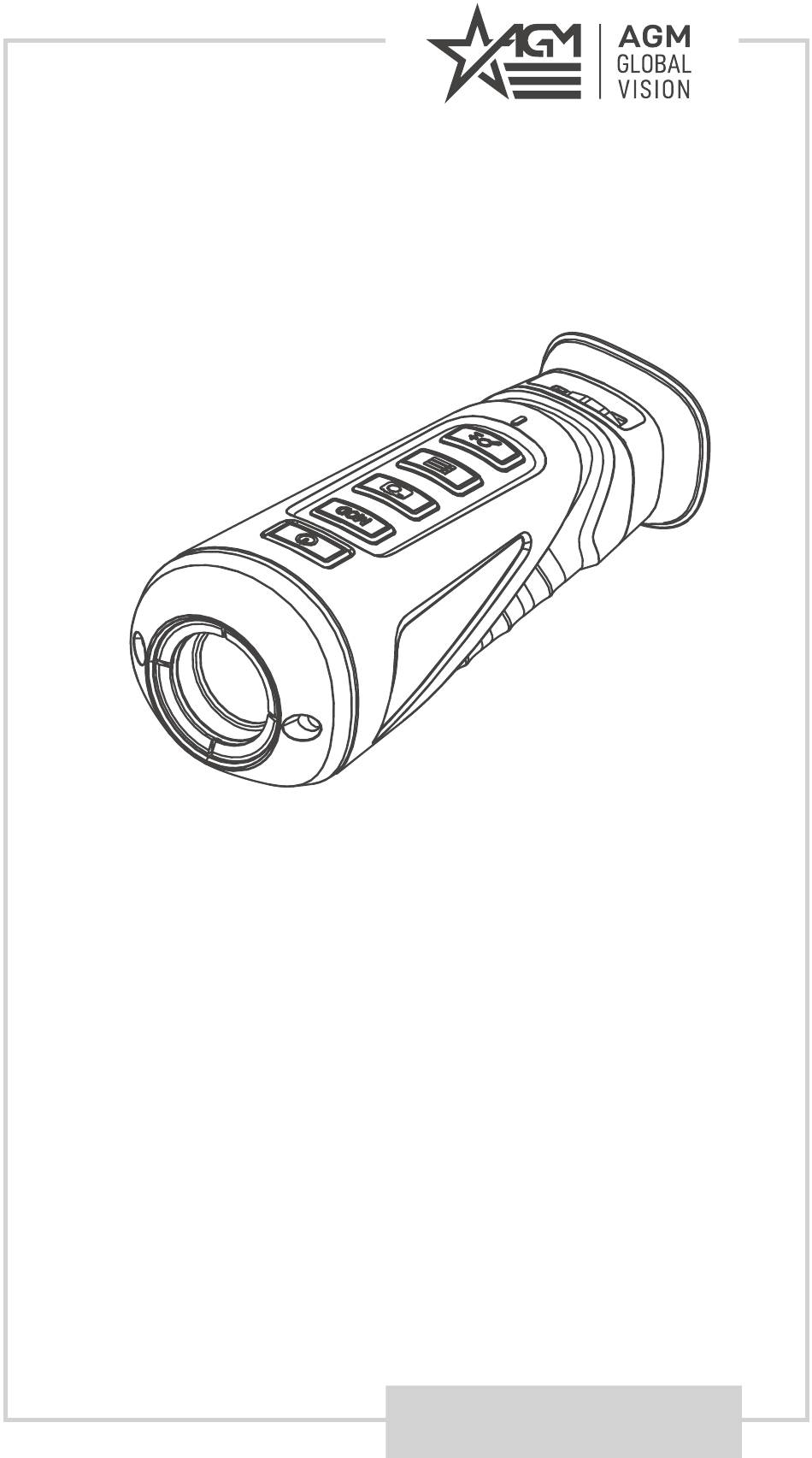

  • Page 1 ASP TM25-384 ASP TM35-384 ASP TM35-640 THERMAL IMAGING MONOCULAR USER MANUAL...
  • Page 2 International Economic Emergency Powers Act, and various U.S. embargoes and sanctions. AGM Global Vision products may not be exported, re-exported, or transferred contrary to U.S. export control laws. In particular, AGM Global Vision products may not be exported, re-exported, or transferred to prohibited countries, individuals, organizations,...

  • Page 3: Table Of Contents

    LIST OF CONTENTS TITLE PAGE Safety Summary 1. GENERAL INFORMATION 1.1 System Description 1.2 Key Features 1.3 Standard Components 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE INSTRUCTIONS 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5.

  • Page 4: Safety Summary

    The detector spectral band provides better visibility through smoke, dust, rain, smog, etc. Infrared radiation does not travel through glass. As a result, the monocular does not detect objects if they are behind glass windows or other barriers. AGM Global Vision...

  • Page 5: General Information

    1 GENERAL INFORMATION SYSTEM DESCRIPTION The Asp monocular is a handheld thermal camera with functions of observation, hot spot mark, distance measurement, Wi-Fi hotspot, and so on. The high- sensitivity built-in IR detector provides you with clear view even in total darkness.

  • Page 6: Key Features

    The ITEM NO. column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM NO. DESCRIPTION QUANTITY Monocular USB Cable Neck Belt Lens Cloth Operation Manual Protective Bag AGM Global Vision...

  • Page 7: Operating Instructions

    2 OPERATING INSTRUCTIONS 2.1. BASIC OPERATIONS 2.1.1 UNPACKING The following steps must be completed prior to each mission. 1. Open the carrying case, remove the monocular, and verify that all components are included. 2. Inspect the monocular for any obvious evidence of damage to the optical surfaces, body, eyecup, operation buttons, etc.
  • Page 8 Press: Switch Pallet MODE Hold: Shutter Release Press: Capture Snapshot CAPTURE Hold: Start/Stop Record Video Menu Navigation: Cursor Up Press: Sleep Mode MENU Hold: Menu Operation Menu Navigation: Confirm Press: Digital Zoom ZOOM ± Menu Navigation: Cursor Down AGM Global Vision...
  • Page 9 2.1.4 POWER ON AND OFF Power On Hold the POWER button for two seconds and the LED indicator in the front turns green. After the device is powered on, an image will appear on the display. Refer to the figure below for the main view of the monocular. DIGITAL ZOOM STORAGE HOT SPOT...

  • Page 10: Main Function

    4. Reboot the monocular and the device upgrades automatically. The upgrading process will be displayed in the main interface. 2.2 MAIN FUNCTION 2.2.1 MENU OPERATION When the monocular is turned on, hold the button for three seconds to display the OSD menu. FIGURE 2-5. THE MAIN MENU AGM Global Vision...
  • Page 11 Press the button to move the cursor up, and press the button move the cursor down. Press the button to confirm. TABLE 2-3. MENU FUNCTION MENU FUNCTION Press to display or hide the OSD information. Press to enable/disable hot spot mark (marking the spot of highest temperature).
  • Page 12 FIGURE 2-7. DISTANCE MEASUREMENT 3. Set the top of the target. a) Move the monocular slightly to place the mark above the target top. b) Press to confirm. 4. Set the bottom of the target. AGM Global Vision...
  • Page 13 a) Move the monocular slightly to place the mark below the target bottom. b) Press to confirm. The distance between you and the target will display on the upper left corner of the live view interface. NOTE: Enter the distance measurement interface, press to view the measured distance.
  • Page 14 4. Search the client software on App Store (iOS System) or Google Play (Android System) to download and install the app. 5. Open the APP and connect your phone with the device. You can view the interface of monocular on your phone. AGM Global Vision...

  • Page 15: Client Software Introduction

    NOTE: When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically. 2.3 CLIENT SOFTWARE INTRODUCTION Before you start: We recommend using T-Vision (V5.4.12 and below) software. Install the client software on your mobile phone first, and then connect your phone to the hotspot of the monocular.
  • Page 16 2. If the device is inactivated, set the password and activate it. If the device is activated, enter the password to add it to app. AGM Global Vision...
  • Page 17 3. When the device is added, the live view can be seen. You can view the interface of the monocular on the software. User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or pad as well as record video on phone/pad memory. USER MANUAL...

  • Page 18: Maintenance Instructions

    If the equipment malfunction is not corrected by the suggested actions, or a problem occurs that is not listed in this table, please contact AGM Global Vision’s Customer Support center or your retailer. AGM Global Vision...
  • Page 19 TABLE 3-1. TROUBLESHOOTING MALFUNCTION CORRECTIVE ACTION The charge Examine whether the device is charged with indicator flashes standard power adapter and the charging improperly. temperature is 0°C to 45°C (32°F to 113°F). Device power Examine whether the device is off-battery. indicator is off.

  • Page 20: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 21 AGM Global Vision and the Customer; AGM Global Vision’s obligations under this Agreement extend solely to the Customer. AGM Global Vision’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer’s dealer.

  • Page 22: Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS ASP TM25-384 ASP TM35-384 ASP TM35-640 Image sensor Vanadium Oxide Uncooled Focal Plane Arrays Detector Pitch 17um Response Wavebond 8um to 14um NETD < 35mk (@25°C, F#=1.0) Refresh Rate 50 Hz Max. Resolution 384×288 384×288 640×512...
  • Page 24 AGM Global Vision MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 Fax +1.480.393.4882 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +44.292.255.0509 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...

This manual is also suitable for:

Asp tm35-384Asp tm35-640
