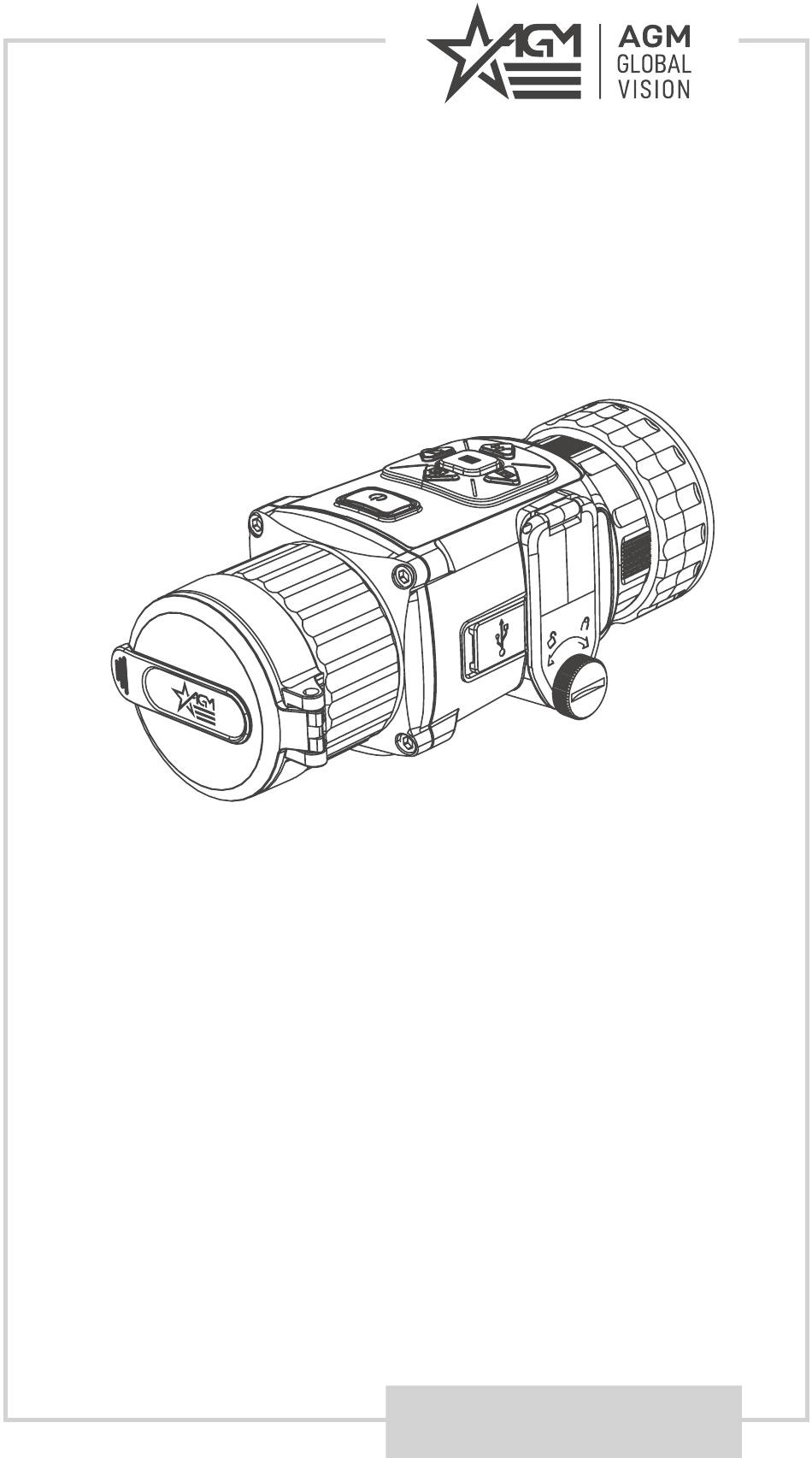

RATTLER
TC35-384
THERMAL IMAGING CLIP-ON
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RATTLER TC35-384 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGM Global Vision RATTLER TC35-384

Summary of Contents for AGM Global Vision RATTLER TC35-384

  • Page 1 RATTLER TC35-384 THERMAL IMAGING CLIP-ON USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S.
  • Page 3 FCC INFORMATION Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator &...

  • Page 4: Table Of Contents

    1.1 System Description 1.2 Key Features 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    SAFETY SUMMARY • Read and follow all instructions • Read all warnings • Only use the attachments/accessories specified by the manufacturer • All service must be provided by the manufacturer WARNING: This product contains natural rubber latex, which may cause potentially fatal allergic reactions! If you are allergic to latex, it is important that you strictly avoid exposure to products that contain it.
  • Page 6 Clean the lens surfaces with the lens tissue or a dry cloth! LEGAL NOTICE Before attaching to weapons, check the regional legal regulations in the area of application. The attachment to a weapon is always the sole responsibility of the user. AGM Global Vision...

  • Page 7: General Information

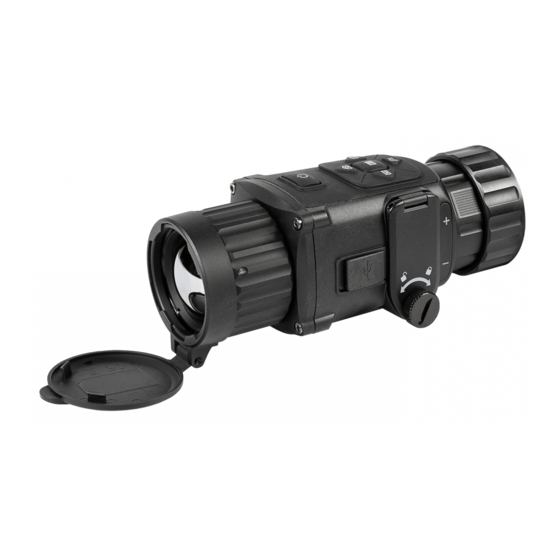

    The AGM Rattler TC35-384 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. Rattler TC35-384 can be easily attaching on up to 8x magnification scopes for medium range use and 24 hours operation under any weather and environmental conditions.

  • Page 8: Key Features

    • Adjustable color palettes • Wi-Fi data transmission • Waterproof, shockproof • Powered by two standard CR123A or RCR123A rechargeable batteries • Up to 4.5 hours continuous working • External power supply capability • Limited 3-year warranty AGM Global Vision...

  • Page 9: Operating Instructions

    2 OPERATING INSTRUCTIONS 2.1. BASIC OPERATIONS 2.1.1 UNPACKING The following steps must be completed prior to each mission. 1. Open the carrying case, remove the device, and verify that all components are included. 2. Inspect the device for any obvious evidence of damage to the optical surfaces, body, operation buttons, etc.
  • Page 10 CAPTURE SHUTTER POWER CALIBRATION MENU MODE FIGURE 2-2. CONTROL BUTTONS TABLE 2-2. BUTTON FUNCTIONS BUTTON FUNCTIONS Press: Sleep Mode/Wake Up Device POWER Hold: Power On/Off Press: Enable/Disable OSD MENU Hold: Menu Operation MODE Press: Switch Palettes AGM Global Vision...
  • Page 11 BUTTON FUNCTIONS Press: Capture CAPTURE Hold: Start/Stop Record Video SHUTTER Press: Correct Non-uniformity of Display Press with Capture button together to CALIBRATION launch the Image Calibration menu. 2.1.6 POWER ON AND OFF Power On Hold the POWER button for 4 seconds to power on the device. An image will appear on the display.
  • Page 12 1. Before connecting the thermal scope to a computer, please make sure that the Wi-Fi function of the scope is disabled. 2. Connect the thermal clip-on to your PC with USB cable and open the detected disk. AGM Global Vision...
  • Page 13 3. Enter DCIM>100EZVIZ to view the videos and snapshots. - Select and copy the videos to PC and play the file with the player. - Select and copy the snapshots to PC and view the files. 4. Disconnect the device from your PC. NOTE: •...
  • Page 14 Use the optional Quick Release Mount (QRM) to install the Rattler TC on a Picatinny/Weaver rail. The mount can be attached to the scope with two screws (Figure 2-6). FIGURE 2-6. QUICK RELEASE MOUNT INSTALLATION To install the Rattler on a Picatinny/ Weaver rail, perform the following (Figure 2-7): AGM Global Vision...
  • Page 15 LOCKED MOUNT UNLOCKED MOUNT (UNDERSIDE VIEW) PUSH UNLOCK TURN FIGURE 2-7. QUICK RELEASE MOUNT 1. Unlock the clamping device of the scope mount by pushing down on the lever holder (A) and unlocking the lever (B). 2. Install the scope on the Picatinny/ Weaver rail so that the stop (C) slides into the transverse slot on the rail.

  • Page 16: Main Function

    Press buttons to move between menu items. The active element is highlighted in orange. Press button to select menu item or change an option. Hold button to save settings and exit the menu. FIGURE 2-9. MAIN MENU AGM Global Vision...
  • Page 17 TABLE 2-4. MENU FUNCTION MENU ITEM SYMBOL OPTION FUNCTION BATTERY Select the battery voltage. 3.0 V / 3.7 V VOLTAGE 5 Levels of Adjust the image brightness. BRIGHTNESS brightness 5 Levels of Adjust the image contrast. CONTRAST contrast Recognition Switch between the Recognition mode and Jungle SCENE MODE mode.
  • Page 18 4. Search the client software on App Store (iOS System) or Google Play (Android System) to download and install the app. T-Vision APP is recommend. 5. Open the APP and connect your phone with the device. You can view the interface of clip-on on your phone. AGM Global Vision...
  • Page 19 NOTE: When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically. 2.2.7 PICTURE IN PICTURE MODE 1. Hold button to show the menu. 2. Select PIP menu item and enter PIP mode. The details show in the upper left corner.
  • Page 20 4. Align the center of top mark with the edge of target top. Press button. The cursor blinks on the top edge of the target. 5. Align the center of bottom mark with the edge of target bottom. Press AGM Global Vision...
  • Page 21 The left top of the image displays the distance measurement result and the height of the target. FIGURE 2-11. DISTANCE MEASUREMENT NOTE: Go to distance measurement interface, and press button to view the result of the previous measuring target. 2.2.11 HOT TRACKING The device can detect the highest temperature spot in the scene and mark it on display.

  • Page 22: Client Software Introduction

    User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or tablet as well as record video on phone/tablet memory. Device[Rattler TС35-384] Rattler TС35-384 FIGURE 2-12. CLIENT SOFTWARE AGM Global Vision...

  • Page 23: Maintenance

    3 MAINTENANCE 3.1 MAINTENANCE 3.1.1 CLEANING PROCEDURES 1. Gently brush off any dirt from the body of the device using a clean, soft cloth. 2. Moisten the cloth with fresh water and gently wipe down the external surfaces (except lenses). 3.

  • Page 24: Troubleshooting

    2. If you use other USB cables, make sure the the scope. cable length is no longer than 1 m. 3. The Wi-Fi function is turned on. If so, go to OSD menu and turn off Wi-Fi. AGM Global Vision...

  • Page 25: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 26 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...

  • Page 27: Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS ITEM DATA Detector Type 17 μm VOx Uncooled Focal Plane Arrays Resolution 384×288 Refresh Rate 50 Hz Response Waveband 8 μm to 14 μm Lens (Focal Length) 35 mm Aperture F1.0 Field of View (H×V) 10.0° × 8.0° Magnification 1×...
  • Page 28 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
