ANACONDA
THERMAL IMAGING CLIP-ON SYSTEM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANACONDA Series and is the answer not in the manual?

Questions and answers

Related Manuals for AGM Global Vision ANACONDA Series

Summary of Contents for AGM Global Vision ANACONDA Series

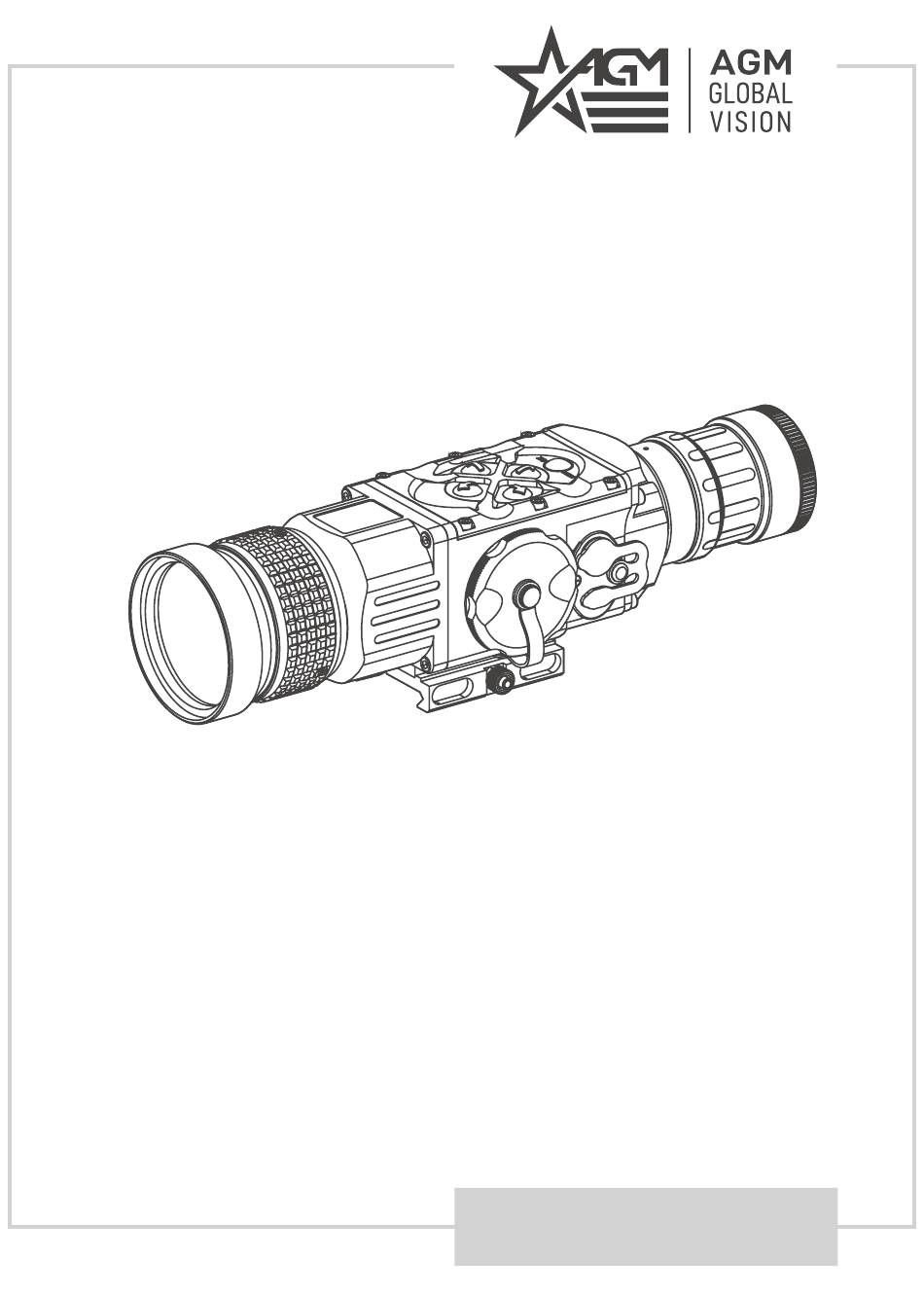

  • Page 1 ANACONDA THERMAL IMAGING CLIP-ON SYSTEM USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S. embargoes and sanctions. AGM Global Vision products may not be exported, re-exported, or transferred contrary to U.S.

  • Page 3: Table Of Contents

    LIST OF CONTENTS TITLE PAGE Safety Summary 1. GENERAL INFORMATION 1.1 System Description 1.2 Standard Components 1.3 Optional Equipment 1.4 Key Features 2. OPERATING INSTRUCTIONS 2.1 Installation and Mounting 2.2 Controls and Display Indicators 2.3 Operating Procedures 3. MAINTENANCE INSTRUCTIONS 3.1 Operator Troubleshooting 3.2 Maintenance 4.

  • Page 4: Safety Summary

    If you are allergic to latex, learn which products contain it and strictly avoid exposure to those products. WARNING: Recommends that you use an eyecup on the eyepiece of the day scope, to allow for maximum comfort, space, and to remain undetected. AGM Global Vision...
  • Page 5 CAUTION: • To prevent thermal damage to the equipment, never point it (whether ON or OFF) directly at the sun or any other source of high intensity light that the unprotected human eye cannot tolerate (such as a welding arc). To prevent accidental exposure to these types of sources, never leave the equipment around without the objective lens cap secured.

  • Page 6: General Information

    The main optical-electronic components of the Anaconda include: an objective thermal lens, an output lens, a thermal-imaging camera, a display, a control card, and a button control panel. The Anaconda is equipped with manual objective lens focusing. AGM Global Vision...
  • Page 7 • Imaging enhancements • Custom settings Anaconda series clip-ons are based on FLIR Tau 2 cameras that offer improved overall image quality in a wide range of dynamic thermal environments. The Anaconda includes special, user- adjustable imaging tools that include: •...
  • Page 8 ITEM DESCRIPTION Body Battery Cap Mount Universal Connector with a Cap Riser Micro-USB Connector with a Cap Objective Lens Cap Output Lens Cap Objective Lens Output Lens Focus Ring Operation Switch Button Control Panel Side Picatinny/Weaver Rail AGM Global Vision...

  • Page 9: Standard Components

    1.2 STANDARD COMPONENTS The Anaconda standard components are shown in Figure 1-3 and listed in Table 1-2. The ITEM NO. column indicates the number used to identify items in Figure 1-3. FIGURE 1-3. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM NO. DESCRIPTION QUANTITY Anaconda Thermal Imaging Clip-On system...

  • Page 10: Optional Equipment

    A mounting system used to install the Anaconda on the lenses 6106SM51 of specified day scopes. Includes a clamp with inserts for 62 mm fitting diameter. AGM WiFi Attachment 6305WIF1 AGM HD Recorder 6305HDR1 AGM Extended Battery Pack 6308EXB1 Hard Case for Storage/Transportation 6610HCS1 AGM Global Vision...

  • Page 11: Key Features

    1.4 KEY FEATURES • Converts your day scope, sight, or binoculars into thermal imaging device • Mounts in front of any day scope with no re-zeroing required • High-performance thermal imaging camera • Lightweight and robust design • Easy to operate •...

  • Page 12: Operating Instructions

    Always make sure your firearm is unloaded before you place the equipment on the firearm. Always verify that the chamber is empty, especially if you stop the procedure and resume later. Safe handling rules should be followed at all times. AGM Global Vision...
  • Page 13 WARNING: AGM recommends that you use an eyecup on the day scope’s eyepiece for maximum safety and comfort, as well as to escape detection. NOTE: The optical axes of the Anaconda and day scope should be aligned. The distance between the axes should not exceed 3 mm.
  • Page 14 The eight-sided nut of the clamping device will only fit into the hole if turned in one of the discrete positions using increments equal to 360°/8. 3. Verify that the adjusted clamping device is firmly secured to the Anaconda. LOCKED POSITION UNLOCK POSITION FIGURE 2-5. MOUNT. UNDERSIDE VIEW AGM Global Vision...
  • Page 15 2.1.4 INSTALLING THE ANACONDA TC50-640 ON THE LENS OF A DAY SCOPE Use the optional Scope Mounting System (SMS) to install the Anaconda TC-50-640 onto day scope lenses. NOTE: The adapters differ in attaching diameters and must fit with the day scope parameters specified in Table 5-7 (Scope Mounting Systems Data).
  • Page 16 (B). The suppressor can be used with scopes that have 40-43 mm eyepiece diameters and 100-120 mm eye relief. The suppressor can be adjusted for the eye relief of your scope by cutting the rubber at the desired distance (C). FIGURE 2-9. LIGHT SUPPRESSOR FOR A DAY SCOPE AGM Global Vision...
  • Page 17 2.1.6 FASTENING THE WIRELESS REMOTE CONTROL TO A WEAPON Using Velcro tape (A, Figure 2-10), fasten the remote control (B) to your weapon in an easily ® accessible place (e.g., on the front of the rifle stock). If your rifle has a Picatinny or Weaver rail on the front end, you can use the Picatinny adaptor for the wireless remote (C).

  • Page 18: Controls And Display Indicators

    The ITEM NO. columns indicate the numbers used to identify items in the figures. NOTE: Various display symbols indicating the current operating state of the Anaconda can be displayed permanently, may appear momentarily, or can be set to appear only when a certain function is activated. FIGURE 2-13. CONTROLS AGM Global Vision...
  • Page 19 TABLE 2-1. CONTROLS AND INDICATORS ITEM CONTROL/INDICATOR FUNCTION Activates the Anaconda when turned to ON. Operation Switch Activates Standby mode when turned to STB. Deactivates the Anaconda when turned to OFF. Control Panel Configures operational settings. Buttons See Table 2-2 for button functions. Focuses the objective lens.
  • Page 20 Menu selection. The menu includes the following MENU functions: Palette, Reticle, Boresight, Enhancement, and Settings. Pushing button (5) when the countdown is on the screen UCMNUC/ FFC Process will cancel the UCMNUC/ FFC and the shutter will not Interruption interrupt viewing. AGM Global Vision...
  • Page 21 2.2.2 MAIN MENU Most setup options can be accessed from the MAIN MENU. To display the MAIN MENU, push and hold down the MENU button (5) on the control panel (Figure 2-15). (1) UP (2) RIGHT (4) LEFT (3) DOWN (5) MENU/OK FIGURE 2-15.
  • Page 22 The RETICLE menu (Figure 2-19) allows the user to select from a choice of reticle patterns: Dot Type, Line Dot, Crosshair Center Dot, and Crosshair. To navigate through the items on the RETICLE menu, push and hold down the LEFT button (4). RETICLE > EXIT <> CROSS FIGURE 2-19. RETICLE MENU AGM Global Vision...
  • Page 23 Boresight Menu The BORESIGHT function allows the user to change the position of the reticle in the display. NOTE: Remember that the center of impact on the target shifts in the opposite direction from the direction that the reticle shifts. So, to bring the center of impact to the right/left and up/down, you must shift the reticle to the left/right and down/up, respectively.
  • Page 24 The adjustment range is from -20 to +100 with a default value of 60. Lower volumes will soften the edges of the image. Higher values will sharpen objects, enhance details, and further increase the signal to noise ratio. SHARPNESS -20 SHARPNESS +100 FIGURE 2-23. SHARPNESS CORRECTION AGM Global Vision...
  • Page 25 SMART SCENE - Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves overall visual acuity for targets that have thermal signatures similar to the surrounding background. Higher values provide more linear automatic gain control behavior. Objects with similar (but not identical) temperatures can be differentiated with greater accuracy. The adjustment range is from 0 to 100, with a default value of 15.

  • Page 26: Operating Procedures

    1. Remove the Anaconda from the carrying case. 2. Install the Anaconda on the weapon with a day scope. Refer to Parts 2.1.2-2.1.4 for installation procedures. 3. Verify that the Anaconda is securely mounted to the weapon or scope. AGM Global Vision...
  • Page 27 4. Remove the protective caps. 5. Point the equipment at an object. 6. Activate the Anaconda by turning the operating switch ON. After approximately 3 sec, video of the thermal scene should appear. 7. If the day scope includes a focusing ring (i.e., parallax adjustment knob), adjust the focus for a parallax-free image.
  • Page 28 5. Place the cap on the connector. 6. Dismount the Anaconda from the weapon. 7. Remove the batteries. CAUTION: Do not store the Anaconda with the batteries still installed. Store the Anaconda and all accessories in the carrying case. AGM Global Vision...

  • Page 29: Maintenance Instructions

    3 MAINTENANCE INSTRUCTIONS 3.1 OPERATOR TROUBLESHOOTING The purpose of troubleshooting is to identify the most frequent equipment malfunctions, probable causes, and corrective actions required. Table 3-1 lists the common malfunctions that may be found during the operation or maintenance of the Anaconda. Perform the tests/inspections and corrective actions in the order listed. This table does not list all of the malfunctions that may occur with your device, or all of the tests and corrective actions that may be necessary.

  • Page 30: Maintenance

    2. Moisten the cloth with fresh water and gently wipe the external surfaces (except for optical surfaces). 3. Dry any wet surfaces (except for optical surfaces) with another clean, dry soft cloth. 4. Using a lens brush, carefully remove all loose dirt from optical surfaces (objective lens and output lens). AGM Global Vision...
  • Page 31 5. Slightly dampen a cotton swab with alcohol and gently wipe optical surface. Clean the optical surface using circular movements, starting from the center and moving out towards the edge. Do not touch the lens holder. Change the cotton swab after each circular stroke. Repeat until the optical surface is clean.

  • Page 32: Warranty Information

    Customer. AGM Global Vision’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special,...
  • Page 33 AGM Global Vision’s service center at the address listed above. All merchandise must be fully insured with the correct postage; AGM Global Vision will not be responsible for improper postage or merchandise that becomes lost or damaged during shipment. When sending product back, please clearly write the RMA# on the outside of the shipping box.

  • Page 34: Specifications

    Within 2 MOA Analog Input/Output Format NTSC (640×480 pixels) / PAL (768×574 pixels) (Resolution) • Micro-USB (Power bank 5V) • Universal S620 connector (Power In, Analog Video Interfacing In/Out, Wi-Fi Attachment, HD Recorder, Extended Battery Pack) * Default setting AGM Global Vision...
  • Page 35 TABLE 5-2. OPTICAL DATA ITEM ANACONDA TC50-336 ANACONDA TC50-640 - ang. X degrees 14.8 Field of View - ang. Y degrees 11.8 Objective Focal Length 50mm Objective F-number Exit Pupil Diameter 40mm 25mm Focus Method Manual Focusing Range 5m to inf. TABLE 5-3.
  • Page 36 Schmidt & Bender 10x42 56,0 Zeiss 2.5 10x50 Scope 57,0 Schmidt & Bender 3-12x50 Mounting 44x65.5x79 Leupold 4.4-14x50; System 4 58,7 Leupold VX-III 3.5-10x50 Scope Zeiss 3-12x56; Mounting 44x70.5x84 62,0 Swarovski 2.5-10x56; System 5 Kahles CSX 3-12x56 AGM Global Vision...

  • Page 37: Appendix

    APPENDIX A. SPARE PARTS LIST The parts authorized by this list of spare parts are required for the equipment operator maintenance. The list includes parts that must be removed in order to replace authorized parts. The PART NO. column indicates the primary number used by the manufacturer to identify an item, which controls the design and characteristics of that item by means of its engineering drawings, specifications, standards, and inspection requirements.
  • Page 38 Picatinny Adapter for Wireless Remote Control AGMTIDPARC Light Suppressor for Anaconda TC50-336 AGMLTSP4 Light Suppressor 1 AGMLTSP1 Light Suppressor 2 AGMLTSP2 Light Suppressor 3 AGMLTSP3 Light Suppressor for Day Scope AGMLSDS Video Cable AGMTIDVCB Operation and Maintenance Manual AGMANOMM Carrying Case AGMRSCC AGM Global Vision...
