AGM Global Vision RATTLER TC19-256 User Manual

Thermal imaging clip-on system
Hide thumbs
Table of Contents

Advertisement

Quick Links

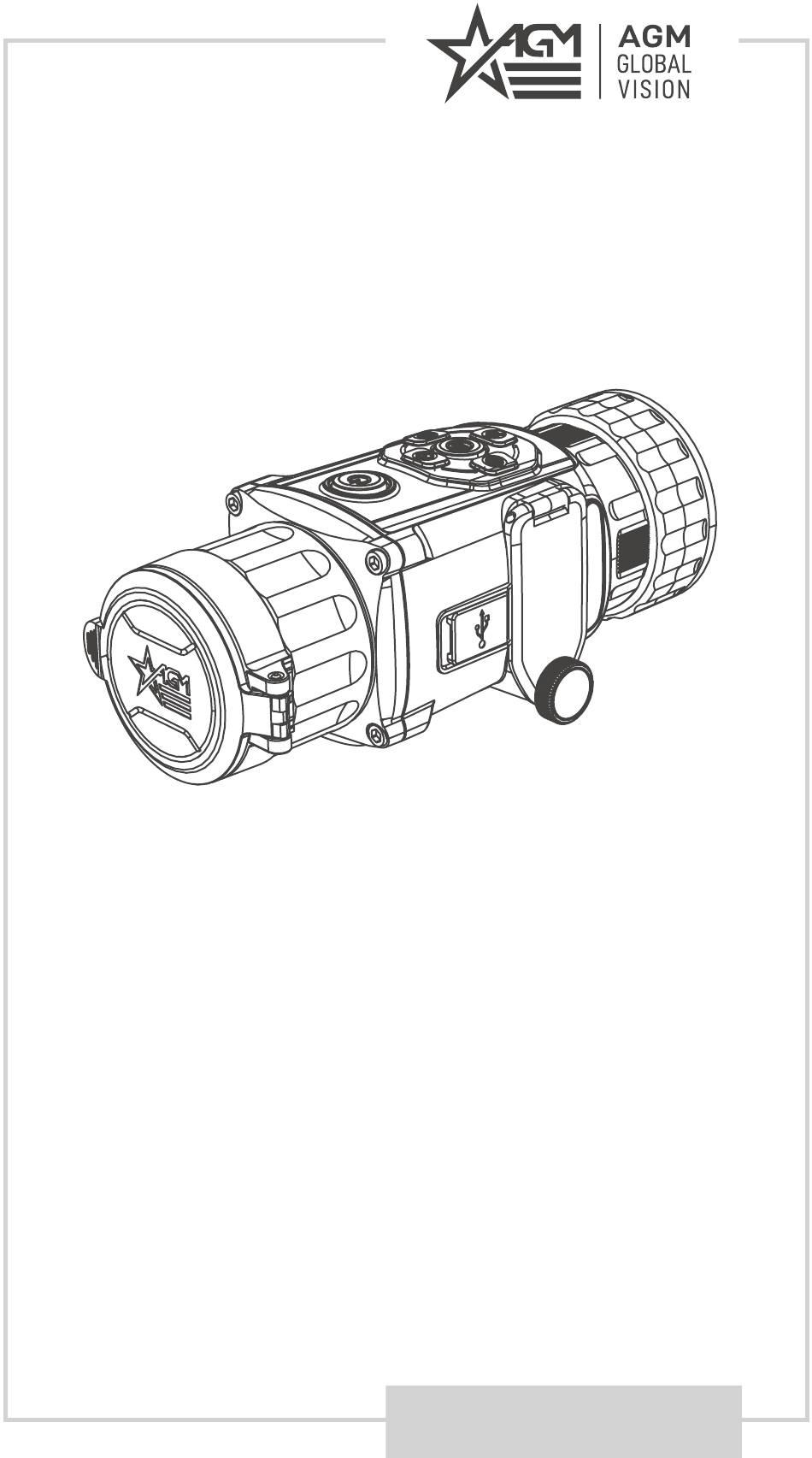

RATTLER
TC19-256
THERMAL IMAGING CLIP-ON
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RATTLER TC19-256 and is the answer not in the manual?

Questions and answers

Сергей
June 28, 2025

Обновление ПО где найти

0

Related Manuals for AGM Global Vision RATTLER TC19-256

Summary of Contents for AGM Global Vision RATTLER TC19-256

  • Page 1 RATTLER TC19-256 THERMAL IMAGING CLIP-ON USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S.
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info INDUSTRY CANADA ICES-003 COMPLIANCE This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. RATTLER TC19-256 USER MANUAL...

  • Page 4: Table Of Contents

    1.3 Optional Equipment 1.4 Key Features 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    WARNING: Disassembling of the device is prohibited, except in authorized repair centers. WARNING: Please remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage. RATTLER TC19-256 USER MANUAL...
  • Page 6 Clean the lens surfaces with the lens tissue or a dry cloth! LEGAL NOTICE Before attaching to weapons, check the regional legal regulations in the area of application. The attachment to a weapon is always the sole responsibility of the user. AGM Global Vision...

  • Page 7: General Information

    The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC19-256 can easily be attached in front of rifle scopes with magnification up to 6x for short range use. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

  • Page 8: Standard Components

    DESCRIPTION QUANTITY Rattler Thermal Imaging Clip-On system Objective Lens Cap USB Cable Lens Tissue User Manual Carrying Case 1.3 OPTIONAL EQUIPMENT Optional items are shown in Figure 1-3 and listed in Table 1-3. FIGURE 1-3. OPTIONAL EQUIPMENT AGM Global Vision...

  • Page 9: Key Features

    Wi-Fi data transmission • Stadiametric rangefinder • Standby mode • Waterproof, shockproof • Powered by two standard CR123A or RCR123 rechargeable batteries • Up to 4.5 hours continuous working • External power supply capability • Limited 3-year warranty RATTLER TC19-256 USER MANUAL...

  • Page 10: Operating Instructions

    Align the polarity symbols on the batteries as shown below. 3. Close the battery cover. Turn the battery cover knob clockwise until stop. When the device is on a battery charge level is displayed on the status bar. FIGURE 2-1. BATTERY INSTALLATION AGM Global Vision...
  • Page 11 Each button is responsible for some functions selected by short press or long press of the button. Pushing a button for 3+ second is considered “Long Press/ Hold.” CAPTURE SHUTTER CALIBRATION POWER MENU MODE FIGURE 2-3. CONTROL BUTTONS RATTLER TC19-256 USER MANUAL...
  • Page 12 (OFF / 30 min / 45 min). 2.1.7 SLEEP MODE In the view mode, press the button. After a few seconds, the display will turn off. Press the button again to exit the Sleep Mode. AGM Global Vision...
  • Page 13 When OSD is on, the information of Wi-Fi hotspot activation, storage memory status, and battery status displays in top right corner of viewfinder. 2.1.11 SHUTTER RELEASE Press button in the view mode to release the shutter once for correction of the non-uniformity of display. RATTLER TC19-256 USER MANUAL...
  • Page 14 • The device displays images when you connect it to PC. But functions such as recording, capturing and hot spot are disabled. • When you connect the device to PC for the first time, it installs the driver automatically. AGM Global Vision...
  • Page 15 3. Rotate the Rattler’s fixing ring (B) clockwise to tighten it on the reducing ring thread. Please note the fixing ring has left-hand thread. Be careful not to overtighten the fixing ring. 4. Screw the front adapter (C) into the reducing ring. FIGURE 2-6. FRONT Q-R ADAPTER INSTALLATION RATTLER TC19-256 USER MANUAL...
  • Page 16 2.1.16 INSTALLING THE RATTLER ON A PICATINNY/WEAVER RAIL Use the optional quick release mount (QR mount) to install the Rattler TC on a Picatinny/Weaver rail. The mount can be attached to the scope with two screws (Figure 2-8). FIGURE 2-8. QUICK RELEASE MOUNT INSTALLATION AGM Global Vision...
  • Page 17 2.1.16). Verify that the Rattler TC is securely mounted. 2. Remove the protective caps. 3. Point the equipment at an object. 4. Activate the Rattler TC. After approximately 4 sec, video of the thermal scene should appear. RATTLER TC19-256 USER MANUAL...
  • Page 18 1. Rotate the fixing ring (Figure 2-10, A) of clip-on output lens (B) counter clockwise to remove it. 2. Align the optional monocular eyepiece (C) with the grooves (D) of device, and rotate the fixing ring of eyepiece (E) clockwise to tighten it. FIGURE 2-10. EYEPIECE REPLACEMENT AGM Global Vision...

  • Page 19: Main Function

    SCENE MODE Jungle mode. Jungle UP-Left / Enable or disable the PIP Center / function. Set the position of the PIP UP- Right / window. Auto / Select the Flat Field Manual / Correction (FFC) mode. External RATTLER TC19-256 USER MANUAL...
  • Page 20 Battery Voltage menu item, and press button to switch the battery voltage. 2.2.3 NETWORK CONFIGURATION Connect your phone or tablet to the Wi-Fi hotspot of the clip-on, you can configure the parameters and realize functions of the device. AGM Global Vision...
  • Page 21 3. Press button to activate or deactivate PIP mode. 4. Hold button to exit. You can quickly enable or disable the PIP function by holding down the button in the view mode. RATTLER TC19-256 USER MANUAL...
  • Page 22 Flat Field Correction (FFC) function can correct non-uniformity of display. 1. Hold button to show the menu. 2. Select FFC menu item and press button to switch the FFC mode. Auto: The clip-on performs FFC automatically when switching on or rebooting the camera. AGM Global Vision...
  • Page 23 2.2.13 VIEW DEVICE INFORMATION 1. Hold button to show the menu of device. 2. Select Version menu item and press button. You can view the device information such as firmware version, and serial number. RATTLER TC19-256 USER MANUAL...
  • Page 24 3. Hold button to exit. 2.2.19 DISTANCE MEASUREMENT You can detect the distance between the target and the observation position. NOTE: When measuring the distance, keep your hand and the position steady. Otherwise, the accuracy may be affected. AGM Global Vision...
  • Page 25 (marking the spot of highest temperature). When the hot spot mark is enabled, the mark displays in the spot of the highest temperature. When the scene changes, the mark moves. RATTLER TC19-256 USER MANUAL...

  • Page 26: Client Software Introduction

    User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or tablet as well as record video on phone/tablet memory. Device[Rattler TС19-256] Rattler TС19-256 FIGURE 2-14. CLIENT SOFTWARE AGM Global Vision...

  • Page 27: Maintenance

    4. Disable the Wi-Fi Hotspot function in the device menu if Wi-Fi is enabled. 5. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device. RATTLER TC19-256 USER MANUAL...

  • Page 28: Troubleshooting

    2. If you use other USB cables, make sure the cable identify the length is no longer than 1 m. Rattler TC. 3. The Wi-Fi function is turned on. If so, go to OSD menu and turn off Wi-Fi. AGM Global Vision...

  • Page 29: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 30 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...

  • Page 31: Specifications

    Quick Release Mount for Picatinny/Weaver rail Dimensions 153 × 62 × 59 mm (6.0 × 2.4 × 2.3 in) Weight (w/o batteries) 0.41 kg (0.92 lb) All data subject to change without notice. RATTLER TC19-256 USER MANUAL...
  • Page 32 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
