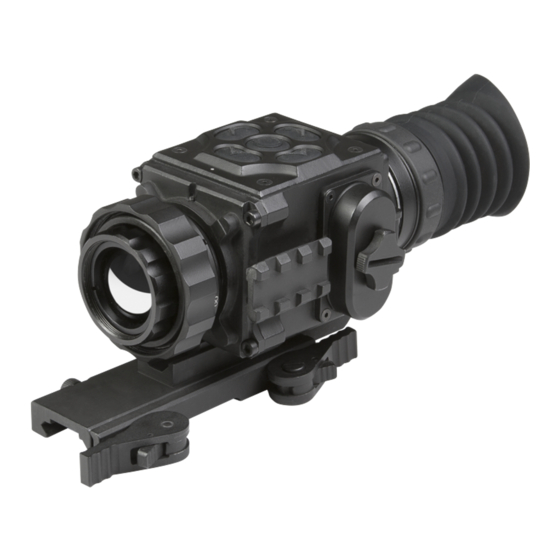

AGM Global Vision ASP User Manual

Thermal imaging monocular
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ASP
THERMAL IMAGING MONOCULAR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP and is the answer not in the manual?

Questions and answers

Related Manuals for AGM Global Vision ASP

Summary of Contents for AGM Global Vision ASP

  • Page 1 THERMAL IMAGING MONOCULAR USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S. embargoes and sanctions. AGM Global Vision products may not be exported, re- exported, or transferred contrary to U.S.

  • Page 3: Table Of Contents

    LIST OF CONTENTS TITLE PAGE Safety Summary 1. GENERAL INFORMATION 1.1 System Description 1.2 Standard Components 1.3 Optional Equipment 1.4 Key Features 2. OPERATING INSTRUCTIONS 2.1 Installation and Mounting 2.2 Controls and Display Indications 2.3 Operating Procedures 3. MAINTENANCE AND TROUBLESHOOTING 3.1 Operator Troubleshooting 3.2 Maintenance 4.

  • Page 4: Safety Summary

    NOTES: • To avoid losing unsaved data, DO NOT remove the batteries or disconnect the external power source while the Asp is on. • Inadvertent sun damage is not considered a defect in material or workmanship, and is therefore not covered in the product warranty.

  • Page 5: General Information

    1 GENERAL INFORMATION SYSTEM DESCRIPTION The Asp is a thermosensitive device. It senses the differences in heat emitted by objects in its field of view, and converts the received temperature pattern into a viewable image that represents the scene in contrasting black & white or color patterns, depending on the user’s selected image palette.
  • Page 6 The Asp is powered by two CR123A (2×3V) batteries. An external 6VDC/600mA power source and USB power bank can also be connected to the Asp. Figure 1-2 shows the Asp. The ITEM NO. column of Table 1-1 indicates the number used to identify items in Figure 1-2.

  • Page 7: Standard Components

    1.2 STANDARD COMPONENTS The Asp standard components are shown in Figure 1-3 and listed in Table 1-2. The ITEM column indicates the number used to identify items in Figure 1-3. FIGURE 1-3. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM DESCRIPTION...

  • Page 8: Optional Equipment

    The PART NO. column indicates the primary number used by the manufacturer, to identify an item. TABLE 1-3. OPTIONAL EQUIPMENT ITEM DESCRIPTION PART NO. AGM WiFi Attachment 6305WIF1 AGM HD Recorder 6305HDR1 AGM Extended Battery Pack 6308EXB1 Professional Titanium Tripod with a Grip 6606TTR1 Hard Case for Storage/Transportation 6610HCS1 AGM Global Vision...

  • Page 9: Key Features

    1.4 KEY FEATURES • High-performance thermal imaging camera • Lightweight and robust design • Easy to operate • Manually adjustable eyepiece and objective lens • Real-time display • Digitally controlled features: - Palette - Settings - Display Brightness - Electronic Magnification - User-Controlled Manual Non-Uniformity Correction / Flat-Field Correction (UCMNUC/FFC) •...

  • Page 10: Operating Instructions

    You can use the Picatinny adapter for the wireless remote control (C) for mounting the remote control to Picatinny or Weaver rail. Install the adapter onto the rail (D). Insert the remote control into the adapter. AGM Global Vision...
  • Page 11 Remove the connector protective cap (see Figure 1-2). Connect a cable of the external 5V battery bank to the Asp Micro-USB connector. Connect a cable of Digital Video Recorder, WiFi Attachment, or the Extended Battery Pack to the Asp S620 universal connector.
  • Page 12 Use the video cable plug (B) to connect an external power source (6 VDC / 600 mA) to the Asp. Connect the video cable plug (C) to the Asp S620 universal connector. NOTE: The external power supply must have a standard OD double-pole socket with a positive central contact.

  • Page 13: Controls And Display Indications

    CONTROLS CAUTION: DO NOT force the equipment controls past their stopping points. The Asp controls are shown in Figure 2-5 and are defined in Table 2-1. The ITEM column indicate the numbers used to identify items in the figures. NOTE:...
  • Page 14 The Asp button control panel is shown in Figure 2-6. Table 2-2 contains the button functions and their descriptions. The ITEM column indicates the number used to identify buttons in Figure 2-6. NOTE: Each button is responsible for different functions, selected by pushing or holding down the button, or using the button in combination with a second one (as described in Table 2-2).
  • Page 15 ITEM FUNCTION DESCRIPTION Simultaneously holding down buttons (2) and (4) zeroes the Reticle Position Zeroing reticle position to the center of the screen. 2, 4 Use the LEFT (4) and RIGHT (2) buttons to navigate through Left, Right the items on the menu. Push the OK button (5) to view the settings available for the item selected.
  • Page 16 Training and experience are required to quickly and properly interpret the thermal image being displayed. Temperature Menu The TEMPERATURE menu (Figure 2-10) allows the user to select varying temperature detection graphics in the display field of view. Select Display Off to remove all temperature data from the display. AGM Global Vision...
  • Page 17 Select Numeric Only for a numerical representation of the temperature data on the display. The current temperature of the object or scene in the center of the field of view will be printed on the display. TEMPERATURE > EXIT DISPLAY OFF NUMERIC ONLY THERMOMETER ONLY NUMERIC-THERMOMETER...
  • Page 18 The different field environments are pre-set with the correction filters valued for the best field performance. The icon of the selected correction is displayed at the bottom of the main screen. CORRECTIONS > EXIT DEFAULT PANORAMA OUTDOOR DETECTION CLOSE QUARTERS FACE RECIGNITION REGION FIGURE 2-14. CORRECTIONS MENU AGM Global Vision...
  • Page 19 Settings Menu The SETTINGS menu (Figure 2-15) allows direct changes to the save profiles, video standard, temperature units, display left margin, display top margin, and factory default setting. The RIFLE PROFILE function allows the user to save three reticle positions as the Rifle Profile 1, Rifle Profile 2, and Rifle Profile 3.

  • Page 20: Operating Procedures

    5. Adjust the Asp for your eyesight by turning the eyepiece focus ring CW up to the stop, and then CCW until the display and symbols are as clear as possible. Bring the object into focus by turning the objective focus ring (CW for far focus, CCW for near focus).
  • Page 21 MAIN MENU. All settings will be saved. 7. To operate the Asp with wireless remote control, turn the operation switch to the STB position (Standby). After it the remote control button can activate/ deactivate the device in two ways: 1) To turn the device on, press the remote control button once, to turn it off –...
  • Page 22 2.3.2 ASP SHUT-DOWN NOTE: Shut down the Asp properly to avoid losing unsaved settings and data. Shut-down the Asp as follows: 1. Be sure to save your settings and data. 2. Turn off the Asp. 3. Place the protective cap on the objective lens.

  • Page 23: Maintenance And Troubleshooting

    Table 3-1 lists the common malfunctions that may be found during the operation or maintenance of the Asp. Perform the tests/ inspections and corrective actions in the order listed. This table does not list all of the malfunctions that may occur with your device, or all of the tests and corrective actions that may be necessary.

  • Page 24: Maintenance

    Maintenance instructions covered elsewhere in this manual (troubleshooting, etc.) are not repeated in this section. CAUTION: The Asp is a precision electro-optical instrument and must be handled carefully at all times to prevent damage. CAUTION: DO NOT dismantle the equipment.
  • Page 25 3.2.3 BATTERY REMOVAL AND REPLACEMENT Refer to Part 2.1.1 for battery installation procedures. Replace the remote control battery as follows: 1. Using a screwdriver, unscrew the four screws (A, Figure 4-1) that secure the cover to the bottom of the unit. Remove the cover. FIGURE 3-1.

  • Page 26: Warranty Information

    Customer. AGM Global Vision’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special,...
  • Page 27 AGM Global Vision’s service center at the address listed above. All merchandise must be fully insured with the correct postage; AGM Global Vision will not be responsible for improper postage or merchandise that becomes lost or damaged during shipment. When sending product back, please clearly write the RMA# on the outside of the shipping box.

  • Page 28: Specifications

    - ang. Y degrees 11.8 Objective Focal Length 25 mm 50 mm 75 mm Objective F-number Exit Pupil Diameter 14mm Eye Relief 16mm Focus Method Manual Focusing Range 5m to inf. Diopter Adjustment Manual Diopter Adjustment Range ±5 diopter AGM Global Vision...
  • Page 29 3.7V max, or four standard CR123A 3V Lithium batteries (operational time up to 8 hr.) External Power Supply 6 VDC / 600mA TABLE 5-4. MECHANICAL DATA ASP TB25-336 ASP TB50-336 ASP TB75-336 ITEM ASP TB25-640 ASP TB50-640 ASP TB75-640 196 ×...

  • Page 30: Appendix

    The PART NO. column indicates the primary number used by the manufacturer, which controls the design and characteristics of the item in terms of its engineering drawings, specifications, standards, and inspection requirement, to identify an item. FIGURE A-1. ASP SPARE PARTS LIST TABLE A-1. ASP SPARE PARTS LIST ITEM DESCRIPTION PART NO.
  • Page 32 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
