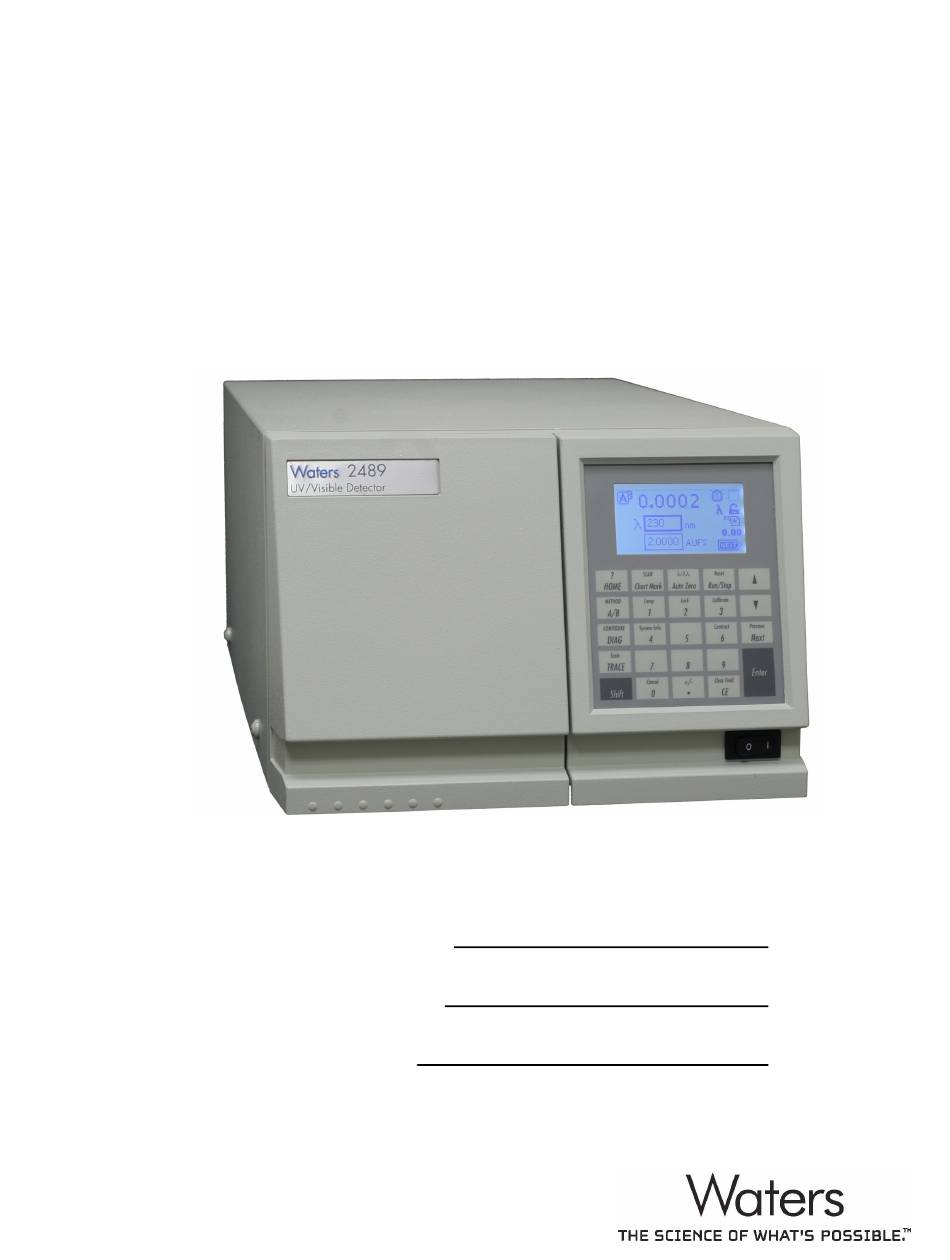

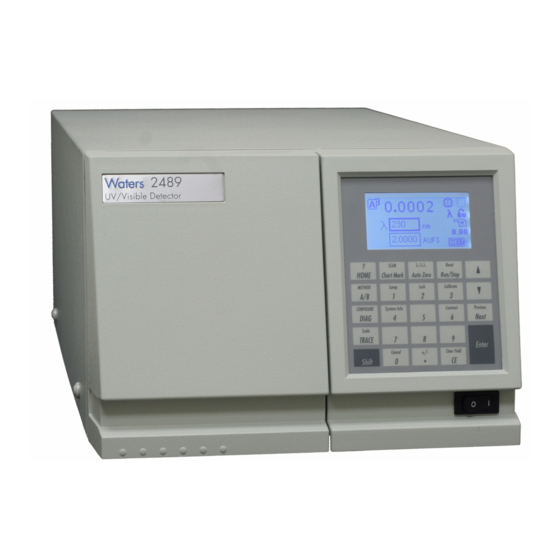

Quick Install Guide ® Waters 2489 UV/Visible Detector Serial Number: Date Installed: Installed By:...
Page 2
715001456, Rev. A 2 of 4 Connecting your detector For detailed installation information and cautionary statements regarding this product, refer to the 2489 UV/Visible Detector Operator’s Guide. Electrical Connections A. Connect any required event or signal cables. Inject Start + Analog 1 + Inject Start –...
Page 3
B. Connect the outlet tubing of the detector flow cell to a waste container or inlet of a downstream detector using a PEEK compression screw and ferrule. Inlet Tubing (labeled) Outlet Tubing Power Up A. Power up the 2489 detector. After the startup diagnostics have run successfully and a five-minute warmup finishes, the detector displays:...
Page 4
Waters is a registered trademark of Waters Corporation management system is periodically audited by the registering body to ensure compliance. Printed in U.S.A. March, 2007 715001456, Rev. A If you have any questions regarding this installation, call your local Waters office. In the U.S. call 1-800-252-HPLC.
