Waters 2465 Quick Install Manual

3
Power Up

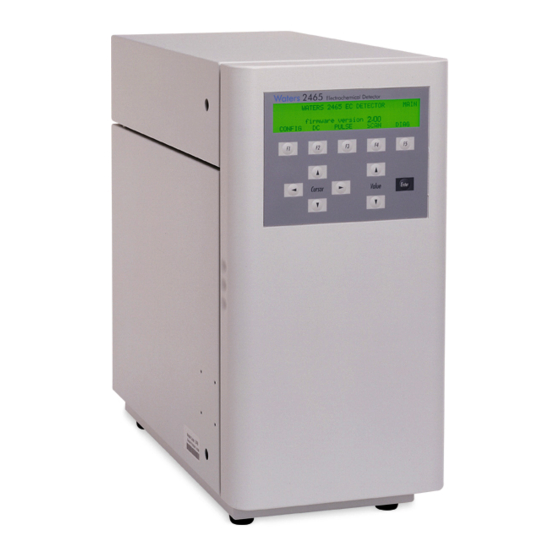

Waters 2465
Electrochemical Detector
CHECKING MEMORY . . . . .
CHECKSUM . . . .
CHECKING MEMORY OK
CHECKSUM OK
SECOND DISPLAY
WATERS 2465 EC DETECTOR
firmware version 2.00
CONFIG DC PULSE SCAN
INSTRUMENT READY
If you have any questions regarding this installation, call your
local Waters office. In the U.S. call 1-800-252-HPLC.
Waters Corporation
34 Maple Street
Milford, MA 01757
508 478-2000
http://www.waters.com
Waters and Connections are registered
trademarks of Waters Corporation.
Printed in U.S.A. May, 2004
715000483 Rev. B
After completing the electrical
and fluidic connections, power up
the unit using the switch on the
rear panel. The screens at the left
appear.
CAUTION
FIRST DISPLAY
To prevent substantial damage to
ON POWER UP
the working electrode or the
electronics, never power-on the
flow cell when:
• the cell cable is not properly
connected,
• the flow cell is not filled with
buffer, or,
ON POWER UP
• the outside of the flow cell is
wet.
MAIN Refer to the 2465
Electrochemical Detector
DIAG
Operator's Guide for more
information on startup
FINAL DISPLAY
procedures.
ON POWER UP
The quality management system of Waters' chromatography
applications software design and manufacturing facility,
Milford, Massachusetts, complies with the International
Standard ISO 9001 Quality Management and Quality
Assurance Standards. Waters' quality management system is
periodically audited by the registering body to ensure
compliance.
Quick-Install Guide
Waters 2465
®
Electrochemical Detector
Serial No.
Date Installed
Installed By
Flow Cell Type
Reference Electrode
Working Electrode
