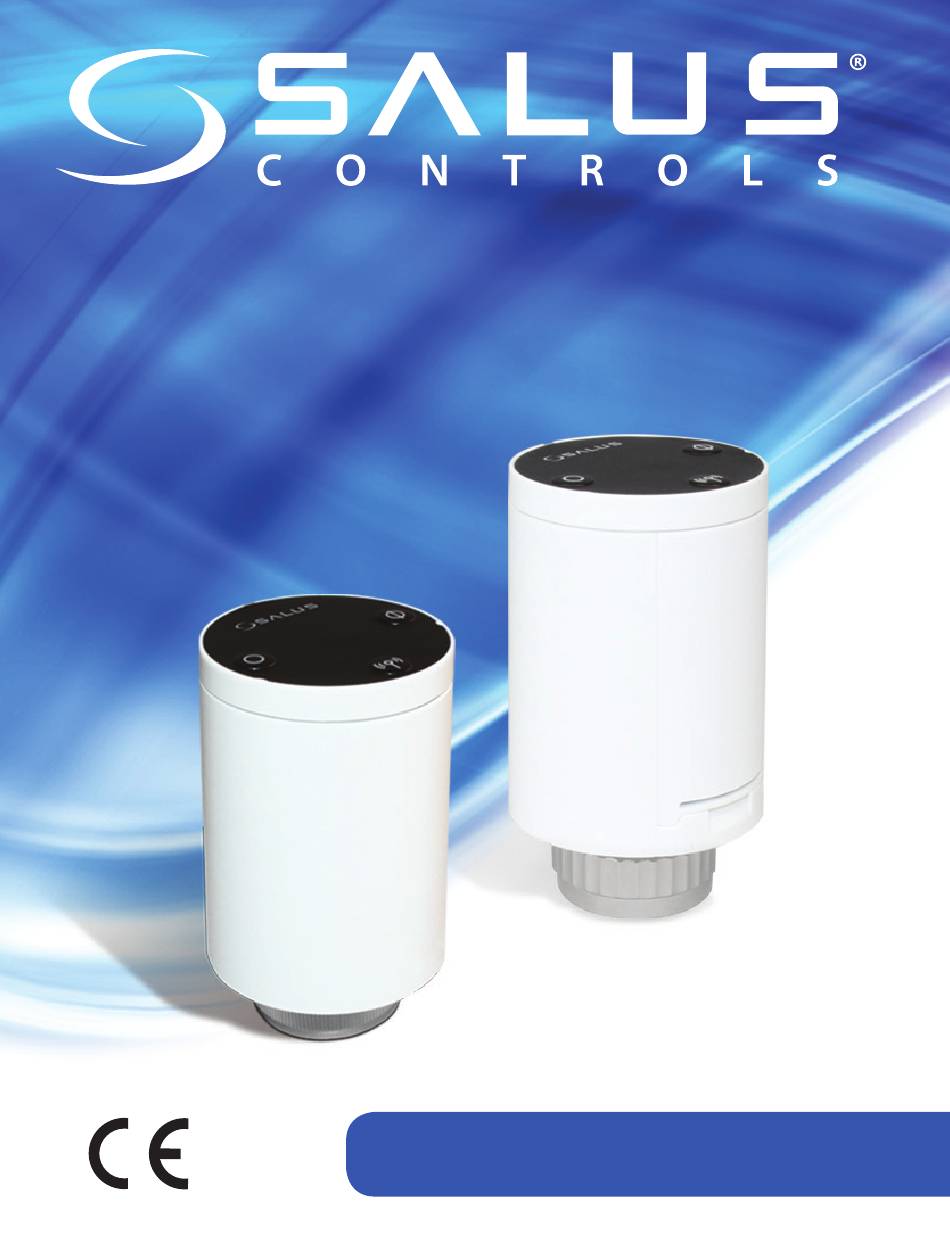

- Page 1 Wireless Radiator Controller Models: TRV10RFM-3 and TRV28RFM-3 I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
LED Indication TRV28RFM Installation Manual Override Installing the unit Technical Details Preparing to pair the unit Warranty Icons used in this manual Safety Important info For the latest PFD Instruction Manual, go to www.salus-controls.com 02 TRV10RFM-3 and TRV28RFM-3 Instruction Manual... - Page 3 TRV28RFM-3 Pack TRV10RFM TRV28RFM Adapter Metal Washer Wireless Radiator Controller Models: TRV10RFM, TRV10RAM and TRV28RFM I N S T R U C T I O N M A N UA L Manual 2 AA Batteries TRV10RFM-3 and TRV28RFM-3 Instruction Manual 03...

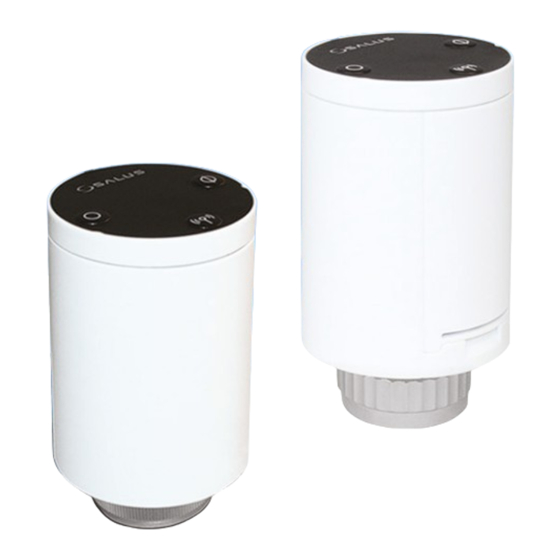

- Page 4 The device is battery-powered, mini-size thermostatic radiator valves (TRV) controlled using ZigBee wireless communication. Simply replace the existing, passive head on the standard radiator valve with the TRV10RFM-3 and TRV28RFM-3 (referred to from now on as the unit). Use the unit with the VS10RF or VS20RF series of wireless thermostats and a CO10RF wireless coordinator.
- Page 5 Product Compliance & Safety Information Product Compliance SALUS Controls Plc hereby declares that these TRV’s comply with the essential requirements and other relevant provisions of Directive 2014/53/EC, 2004/108/EC, 2006/95/EC, 2011/65/EU and 2009/125/ EC. The full text of the EU declaration of conformity is available at the following internet address: www.saluslegal.com...
-
Page 6: System Overview
To achieve the best control from the unit and thermostat, we recommend they are used with the SALUS system receiver configured to RX1. The system receiver will turn the boiler on or off when requested by the thermostat. See your boiler receiver manual for more information about the RX1 configuration. - Page 7 Checking the compatibility of your heating system The unit is compatible with the majority of thermostatic radiator valves. Before fitting, please check your valve is suitable for use with the SALUS TRV. Valve Remove the TRV head Note: If all the measurements are as stated on this page then the TRV will fit directly to your valve.
- Page 8 Before installing the unit make sure you have added the metal washer on MMA or Herz M28 valves. Metal washer Herz valve MMA valve There is no need for a metal washer for the Comap M28 valve. Comap valve 08 TRV10RFM-3 and TRV28RFM-3 Instruction Manual...
- Page 9 TRV10RFM-3 Installation If you are connecting to standard valve then the TRV10RFM-3 will screw directly to it, as shown below. TRV10RFM-3 and TRV28RFM-3 Instruction Manual 09...
-
Page 10: Connecting To A Danfoss Ra Valve
RA adapter supplied when fitting a TRV10RFM-3. Tighten the adaptor using Push the RA adaptor onto the 30mm Danfoss RA valve a screwdriver and then screw on the TRV10RFM-3. 10 TRV10RFM-3 and TRV28RFM-3 Instruction Manual... -
Page 11: Installing The Unit
LED is solid red. start the pairing process activity has stopped, the described on page 13. unit is ready to pair with your wireless thermostat. See “LED Indications” on page 18 if the LED continues to flash. TRV10RFM-3 and TRV28RFM-3 Instruction Manual 11... -
Page 12: Preparing To Pair The Unit
If you are using the optional RX10RF wireless boiler receiver configured for remote boiler switching, ensure this has been powered up and the red LED has gone from flashing to steady. See your boiler receiver manual for more information. 12 TRV10RFM-3 and TRV28RFM-3 Instruction Manual... -
Page 13: Pairing The Unit
LED on the unit starts to flash. You have paired the unit to the thermostat when the unit LED goes off. Once paired, the unit operates in automatic mode and receives room temperatures from the thermostat. TRV10RFM-3 and TRV28RFM-3 Instruction Manual 13... -
Page 14: Leaving The Network
Note: After you have deleted the unit from the wireless network, you must reinstall it using the instructions from page 11. Using the Unit LED Indication Manual open/ Manual close/ status indication status indication Pairing Button 14 TRV10RFM-3 and TRV28RFM-3 Instruction Manual... - Page 15 To exit fail safe mode, press the: • Pairing button to put the unit in automatic mode • Open button for 3 seconds to open the valve TRV10RFM-3 and TRV28RFM-3 Instruction Manual 15 • Close button for 3 seconds to close the valve...
- Page 16 The valve motor automatically starts once a week if no valve movement has been detected within a 14-day period. Lime-scale protection will continue to operate in automatic, manual open, and manual close modes and you don’t have to do anything. Auto Adaptation 16 TRV10RFM-3 and TRV28RFM-3 Instruction Manual...
-
Page 17: Button Usage
Fully close the valve Close button for 3 seconds Restore factory default settings Open, pairing, and close buttons together for 3 seconds Lock and unlock the buttons Pairing and close buttons together for 3 seconds TRV10RFM-3 and TRV28RFM-3 Instruction Manual 17... -
Page 18: Led Indication
Unit paired to thermostat and Red flashes twice after short in auto mode press on open or close button Leaving network No LED Identifying the network Red and green on together for 18 TRV10RFM-3 and TRV28RFM-3 Instruction Manual... - Page 19 Green and red flash twice 100% open every 10 seconds Window open Battery low mode active Red flashes three times every 25% open 10 seconds (less if the battery is low) Error installing Green and red flash alternately TRV10RFM-3 and TRV28RFM-3 Instruction Manual 19...
-
Page 20: Manual Override
LED flashes red once and then goes out. manually close To check status refer to previous page. Short press to return to Auto mode. Red LED will flash once to confirm that the unit is in AUTO. 20 TRV10RFM-3 and TRV28RFM-3 Instruction Manual... -
Page 21: Technical Details
2x AA Batteries Battery Life 14 Months (low battery indication) Control Method Modulating Communication 2.4GHz ZigBee wireless Operating Temperature 0 to 45ºC Storage Temperature -20 to 60ºC Operating Humidity 5 to 95%RH Protection IP30 TRV10RFM-3 and TRV28RFM-3 Instruction Manual 21... - Page 22 Notes 22 TRV10RFM-3 and TRV28RFM-3 Instruction Manual...
-
Page 23: Warranty
Warranty SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. -
Page 24: Www.salus-Controls.com
E: tech@salus-tech.com www.salus-controls.com SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development, SALUS Controls plc reserves the right to change specification, design and materials of products listed in this brochure without prior notice.
