SIR600
SMART IR AC CONTROLLER
Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIR600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Salus SIR600

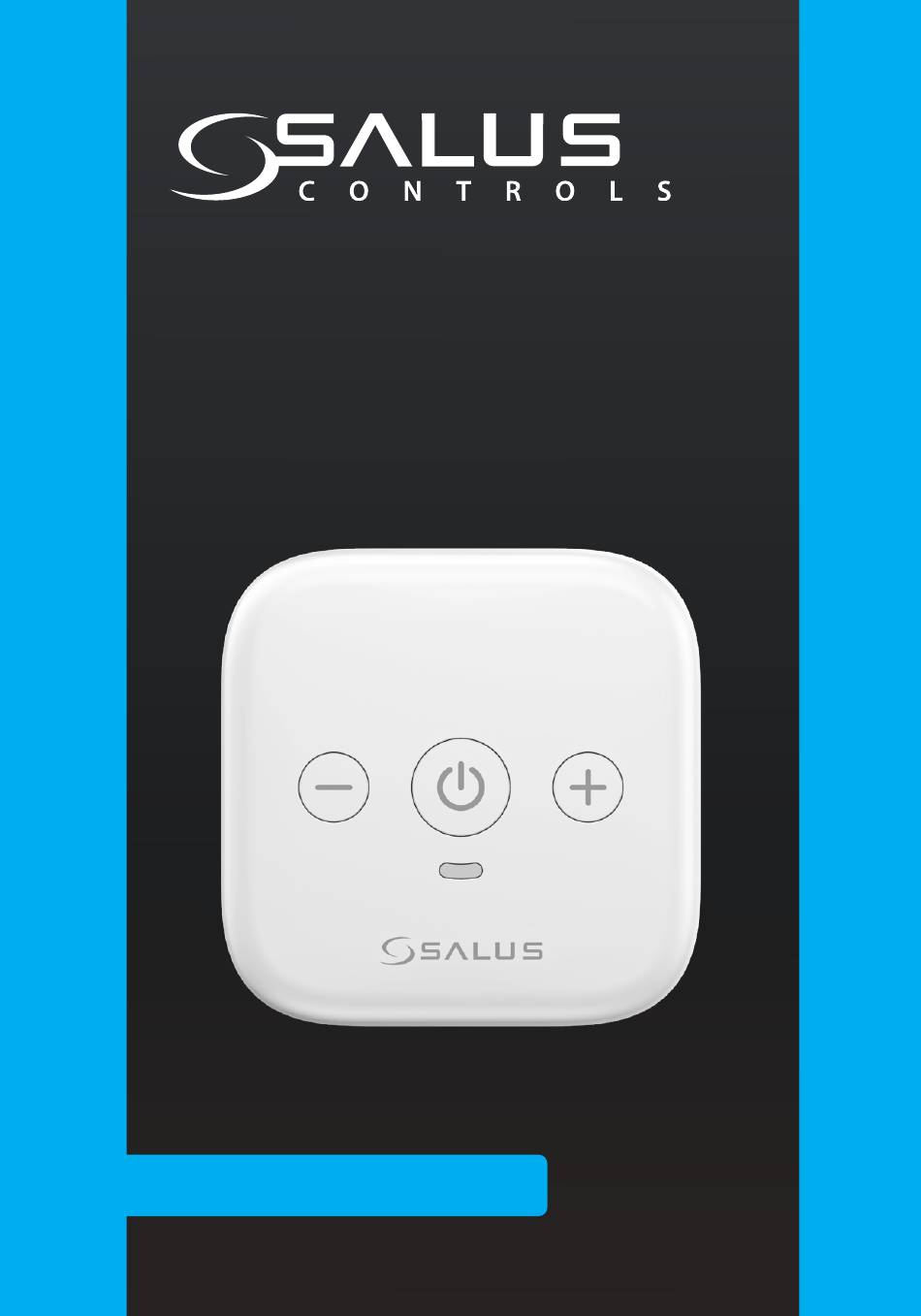

  • Page 1 SIR600 SMART IR AC CONTROLLER Installation Manual...
  • Page 3 TABLE OF CONTENTS Important Safety Information Poduct Compliance Box Content Introduction Key Features and Benefits Product Specification Overall Dimensions Button Functions LED Status & Colours Setting up the Device Choosing the Right Location Mounting Procedure App Setting Up and Operation Setting Up the IR Remote From the App Setting Up the Network Connection Operating in Online Mode via the App...
  • Page 4 Important Safety Information • The product must be installed in compliance with any of the EU’s regulations. • The product must be stored in a safe dry area. • Use the product the way it was destined to be used. •...
  • Page 5 Box Content Wall Mounting Bracket SIR600 SIR600 3M Tape USB Cable User Manual Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/ EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com.
  • Page 6 Introduction Welcome to the user manual for the SIR600 (Smart IR AC Remote Controller) by Salus. This innovative remote controller is designed to enhance your home comfort by allowing you to easily adjust the temperature of the air conditioning unit.
  • Page 7 Key Features and Benefits • WiFi connectivity with the Salus Smart Home Gateway. • The SIR600 has access to an online AC IR database, al- lowing for quick and easy identification and matching with your AC unit model. • Supports AC control functions (depends on AC model)
  • Page 8 8 Product Specification...
  • Page 9 Overall Dimensions 68mm 24mm 27mm Button Functions Temperature DOWN Power Toggle Temperature UP Overall Dimensions & Button Functions 9...
  • Page 10 LED Status & Colours Factory reset Standby mode (before pairing) Pairing (add SIR600 to the App) Pairing completion LED OFF IR Learning Change setpoint temperature or mode - Solid LED light - Blinking LED light Setting up the Device In this chapter, you will learn how to power up and position your Smart IR AC Remote Controller for optimal performance.
  • Page 11 Retrieve the AC unit’s IR code from the database. The device shall be added into the Salus Smart Home system with the connection to the Salus UG gateway via the local WiFi network. Setting Up the Device 11...
  • Page 12 Choosing the right location When installing your Smart IR AC Remote Controller, it’s essen- tial to position the device in a location that ensures effective communication with your air conditioner. Here are some key considerations to keep in mind: • Start by placing the controller where it has a direct line of sight to your AC unit.
  • Page 13 Under direct sunlight Electromagnetic Obstructured interference IR path Choosing the Right Location 13...
  • Page 14 Mounting Procedure Decide whether you want to mount the Smart IR AC Remote Controller on a wall or place it on a stable surface. If it is opted for wall mounting, use the included mounting bracket to securely attach the device. Start by marking the location where you want to install the device.
  • Page 15 Mounting Procedure 15...
  • Page 16 App Setting Up and Operation First make sure that you have downloaded the SALUS Premium Lite App from the Google Play or App Store. You will need to follow a few easy steps to create an account. Salus Smart Home...
  • Page 17 Setting Up the IR remote from the App Select the Menu command from top-right corner to open the menu. From Equipment category we select All Equipment. Setting Up the IR Remote from the App 17...
  • Page 18 Here we select Add new Equipment. In order to prepare the SIR600 for connection, hold the button for 5 seconds. *The blue LED will blink 5 sec 18 Setting Up the IR Remote from the App...
  • Page 19 Select Scan for Smart IR AC Controller as the connection mode. If the scanning successfull the infrared device will be shown and we must select it. Setting Up the IR Remote from the App 19...
  • Page 20 After selecting, we will confirm by choosing Connect equipment. Search and select the brand of the AC device. 20 Setting Up the IR Remote from the App...
  • Page 21 Once we selected the AC brand we have two options (see the following pages): OPTION A Program the device by capturing commands from your physical AC remote controller and test the commands to ensure they work correctly. 10A1 We select first option. Setting Up the IR Remote from the App 21...
  • Page 22 10A2 The indications presented on the screen must be properly followed. 10A3 If the IR signal was detected, the following notice will be recieved. Press OK. 22 Setting Up the IR Remote from the App...
  • Page 23 10A4 FIRST CODESET Check if the commands work as shown. If they do, then select YES. Setting Up the IR Remote from the App 23...
  • Page 24 10A5 SECOND CODESET Check if the commands work as shown. If they do, select YES. 24 Setting Up the IR Remote from the App...
  • Page 25 10A6 THIRD CODESET Check if the commands work as shown. If they do, select YES. Setting Up the IR Remote from the App 25...
  • Page 26 10A7 If everything went accordingly, the following message should appear. *SIR’s blue LED light will be ON OPTION B Program the device by selecting your AC model or remote control model from the list directly. 10B1 We select the second option.
  • Page 27 10B2 From the AC Model list, select the model of AC device. Setting Up the IR Remote from the App 27...
  • Page 28 10B3 Then select the Remote Model list and select the model of AC remote. After selection, select Next. 28 Setting Up the IR Remote from the App...
  • Page 29 10B4 Please note ! If you have obtained the suggestion on the codeset ID from our customer service for your AC unit, you can se- lect it from the table shown in the list Codeset as shown. If no Codeset ID suggestion has been provided, this step can be ignored.
  • Page 30 Setting up the network connection In order for the IR and gateway to communicate, the WiFi Net work must be configured. Please note that if the mobile phone and the gateway are not in the same WiFi network, the application cannot access the properties of the device.
  • Page 31 Provide the password for the selected network and select Provision. Name the new equipment and select Connect Equipment to confirm. Select Finish to confirm. Setting Up the IR Remote from the App 31...
  • Page 32 Operating in Online Mode via the App This section will provide more info regarding all the features and setups that can be done in the operation of the SIR600. Once the IR device has been connected via the Salus Premium Lite App, we can now work on configurations and settings re- garding the operation and functionality.
  • Page 33 Disclaimer: App features are dependant on the AC unit’s features and options. Operating in Online Mode via the App 33...
  • Page 34 Factory reset 5 sec In order to realize a factory reset on your device you must press and hold the power but- for 5 seconds. *Green LED light will stay ON for 5 seconds. 34 Factory Reset...
  • Page 35 Technical Data Input 5Vdc 1A by USB-C Connectivity WiFi 2.4GHz Auto, Cool, Dry, Fan and Heat AC modes (Depending on the AC model) Supports only vertical swing and up to Swing 7 positions Auto and 1 - 7 Fan Speed (Depending on the AC model) Storage temperature -10°C to 50°C, <90% RH...
