Controller for C.H. pump and H.W. pump
Model: PC12HW
DISTRIBUTOR OF SALUS CONTROLS:
QL CONTROLS Sp. z o.o., Sp. k.
Rolna 4
43-262 Kobielice
Poland
www.salus-controls.eu
Maintaining a policy of continuous product development SALUS Controls plc reserve
the right to change specification, design and materials of products listed in this brochure
without prior notice.

Introduction

The PC12HW controller is designed to control C.H. and H.W. pumps.
C.H. pump turns ON when boiler temperature exceeds user setpoint
temperature. H.W. pump work depends on the temperature differen-
ce. H.W. pump turns on when boiler temperature exceeds the tempe-
rature of the tank by hysteresis value set by user. H.W. pump works
until the temperature of the boiler and the temperature of the tank
will be equal or setpoint temperature of the tank will be achieved.

Product Compliance

This product complies with the essential requirements and other
relevant provisions of the following EU Directives: EMC 2014/30/EU,
RoHS 2011/65/EU.
Use in accordance to national and EU regulations. Use the device as
intended, keeping it in dry condition. Product for indoor use only.
Installation must be carried out by a qualified person in accordance
to national and EU regulations.
Before carrying out any activities related to the power supply
(connecting wires, device installing etc.), make sure that main power
is not connected to the controller! Incorrect wiring connections may
cause device damage.
Manual

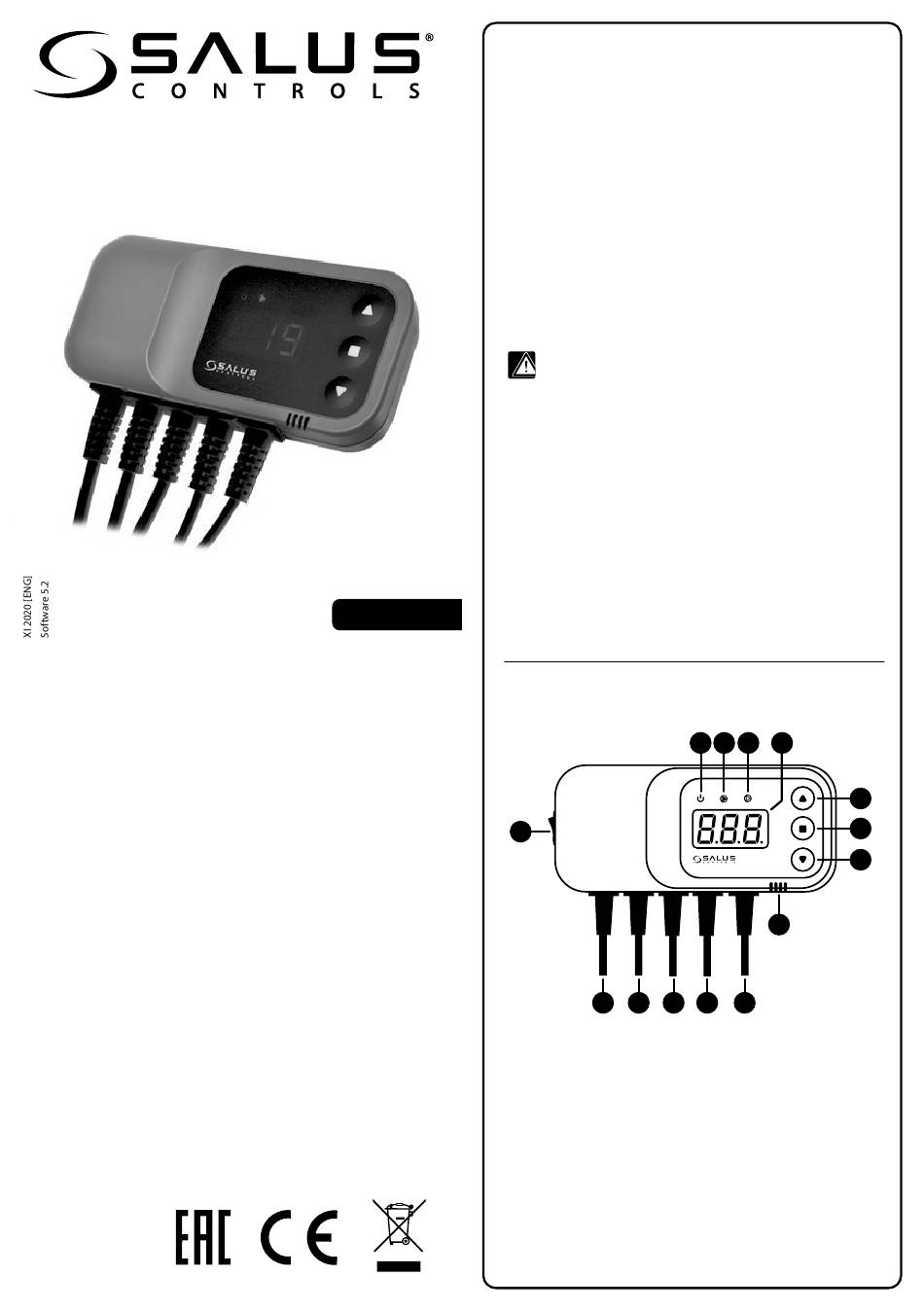

Controller description

14
1. Power supply indicator
2. C.H. pump operation
indicator
3. H.W. pump operation
indicator
4. Display
5. Increasing setpoint
temperature or value
6. Menu button
7. Decreasing setpoint
temperature or value

Safety Information

1 2 3
13
12
11
10
10. H.W. temperature sensor
11. H.W. pump power supply
12. C.H. pump power supply
13. Controller power supply
14. ON/OFF power supply
4
5
6
7
8
9
8. Sound alarm
9. C.H. temperature sensor
switch
