Wireless Radiator Controller
Model: TRV10RFM
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRV10RFM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Salus TRV10RFM

  • Page 1 Wireless Radiator Controller Model: TRV10RFM I N S T R U C T I O N M A N U A L...
  • Page 2: Box Contents

    Icons used in this manual: Safety Important info Contents: TRV10RFM Box Contents Introduction 2 AA Batteries Product Compliance and Safety Information Installation User Interface Adapter Status/LED indication Installers notes Warranty For the latest PFD Instruction Manual, go to www.salus-controls.com Manual 02 TRV10RFM Instruction Manual...

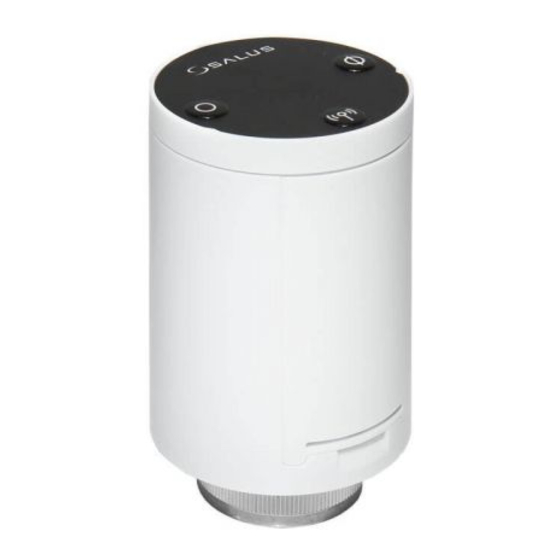

  • Page 3 The TRV10RFM is a battery-powered, mini-size thermostatic radiator valve (TRV) controller using ZigBee wireless communication. Simply replace the existing, passive head on the standard radiator valve with the TRV10RFM (referred to from now on as the unit). Use the unit with the VS10RF or VS20RF series of wireless thermostats and a CO10RF wireless coordinator.
  • Page 4: System Overview

    To achieve the best control from the unit and thermostat, we recommend they are used with the SALUS system receiver configured to RX1. The system receiver will turn the boiler on or off when requested by the thermostat. See your boiler receiver manual for more information about the RX1 configuration.
  • Page 5 Checking the compatibility of your heating system The SALUS TRV10RFM is compatible with the majority of thermostatic radiator valves. Before fitting, please check your valve is suitable for use with the SALUS TRV. Valve Remove the TRV head Note: If all the measurements are as stated on this page then the TRV will fit directly to your valve.
  • Page 6 If you can not see any thread on the valve and it looks like this picture, you may be able to use the RA adapter supplied. Our RA adapter also fits this valve. Once fitted the RA adapter should look like this. 06 TRV10RFM Instruction Manual...
  • Page 7: Installing The Unit

    Screw the units nut The unit is now ready unit to adapt it to the (finger tight) to the for pairing to the SALUS radiator valve. Once all radiator valve and check thermostat. You may now adaptation noise and LED that the LED is solid red.
  • Page 8 If you are using the optional RX10RF wireless boiler receiver configured for remote boiler switching, ensure this has been powered up and the red LED has gone from flashing to steady. See your boiler receiver manual for more information. 08 TRV10RFM Instruction Manual...
  • Page 9 LED on the unit starts to flash. You have paired the unit to the thermostat when the unit LED goes off. Once paired, the unit operates in automatic mode and receives room temperatures from the thermostat. TRV10RFM Instruction Manual 09...
  • Page 10: Using The Unit

    Note: After you have deleted the unit from the wireless network, you must reinstall it using the instructions from page 5. Using the Unit LED Indication Manual open/ Manual close/ status indication status indication Pairing Button 10 TRV10RFM Instruction Manual...
  • Page 11: Unlocking The Buttons

    To exit fail safe mode, press the: • Pairing button to put the unit in automatic mode • Open button for 3 seconds to open the valve TRV10RFM Instruction Manual 11 • Close button for 3 seconds to close the valve...
  • Page 12: Restoring Factory Default Settings

    The valve motor automatically starts once a week if no valve movement has been detected within a 14-day period. Lime-scale protection will continue to operate in automatic, manual open, and manual close modes and you don’t have to do anything. Auto Adaptation 12 TRV10RFM Instruction Manual...
  • Page 13: Button Usage

    Open button for 3 seconds Fully close the valve Close button for 3 seconds Restore factory default settings Open, pairing, and close buttons together for 3 seconds Lock and unlock the buttons Pairing and close buttons together for 3 seconds TRV10RFM Instruction Manual 13...
  • Page 14: Led Indications

    Unit paired to thermostat and Red flashes twice after short in auto mode press on open or close button Leaving network No LED Identifying the network Red and green on together for 14 TRV10RFM Instruction Manual...
  • Page 15 Green and red flash twice 100% open every 10 seconds Window open Battery low mode active Red flashes three times every 25% open 10 seconds (less if the battery is low) Error installing Green and red flash alternately TRV10RFM Instruction Manual 15...
  • Page 16: Manual Override

    LED flashes red once and then goes out. manually close To check status refer to previous page. Short press to return to Auto mode. Red LED will flash once to confirm that the unit is in AUTO. 16 TRV10RFM Instruction Manual...
  • Page 17: Technical Detail

    Battery Life 14 Months (low battery indication) Control Method Modulating Communication 2.4GHz ZigBee wireless Operating Temperature 0 to 45ºC Storage Temperature -20 to 60ºC Operating Humidity 5 to 95”RH Protection IP30 Size (mm) H 88.6, W 51 TRV10RFM Instruction Manual 17...
  • Page 18 Notes 18 TRV10RFM Instruction Manual...
  • Page 19 Warranty SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
  • Page 20 T: +1-650-360-1725 E: sales@salusna.com www.salusna.com SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development, SALUS Controls plc reserves the right to change specification, design and materials of products listed in this brochure without prior notice.
