7.1.3 - Rackmount 28" Simple Locking Ball Bearing Slide Rails

The 28" Simple Lock Ball Bearing Slide Rails are an optional accessory designed to enhance the
functionality and ease of use of the Edge Server. These slide rails are designed to be used with
standard 19" EIA racks and allow for easy installation and removal of the server from the rack. The
ball bearing design ensures smooth and effortless sliding motion, while the sturdy construction
provides a secure and stable platform for the server.
With these slide rails, you can easily access the server for maintenance or upgrades without the need
for complex disassembly or cumbersome lifting.
The simple locking mechanism allows for quick mounting into a rack without the use of any tools.
The 28" Simple Lock Ball Bearing Slide rail kit can be chosen at time of configuration based on the
rack depth requirements.
Mounting Hole: Square, Rack Depth Range (front to back flange): 609mm (24in) to 921mm (36.2 in)

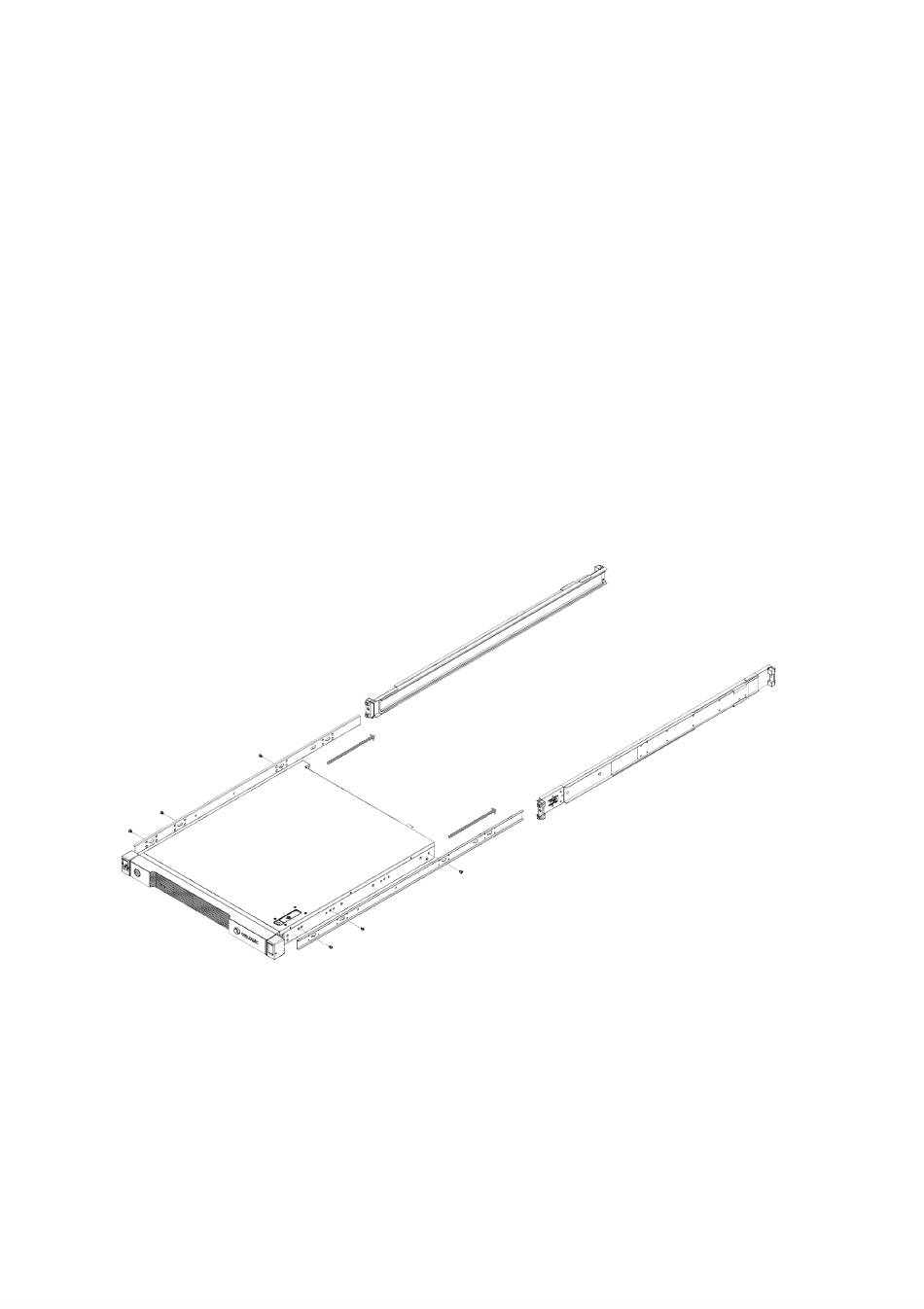

Install the six M4x0.7 L=4mm Low Profile Cheesehead screws provided with the rail kit
