7 - Mounting Hardware

The Axial AC101 Edge Server has been designed with flexibility in mind and can be mounted in
different ways. As the system is designed to meet industry standard 19" Electronic Industries Alliance
(EIA) racks, there are multiple rack mounting rail kits available. Additionally, the system may also be
wall mounted using the OnLogic wall mount kit.

7.1 - Rack Mounting

The Axial AC101 Edge Server has been designed to support standard 19" EIA rack mounting, which is
a common form factor used in data centers and server rooms. To accommodate different rack
depths, the system supports 23" and 28" rail kits that can be used to securely mount the server in the
rack. These rail kits are easy to install and include all the necessary hardware for attachment into the
rack.

7.1.1 - Rackmount 23" Ball Bearing Slide Rails

The 23" Ball Bearing Slide Rails are an optional accessory designed to enhance the functionality and
ease of use of the Edge Server. These slide rails are designed to be used with standard 19" EIA racks
and allow for easy installation and removal of the server from the rack. The ball bearing design
ensures smooth and effortless sliding motion, while the sturdy construction provides a secure and
stable platform for the server. With these slide rails, you can easily access the server for maintenance
or upgrades without the need for complex disassembly or cumbersome lifting.
The 23" Ball Bearing Slide rail kit can be chosen at time of configuration based on the rack depth
requirements.
Mounting Hole: Square, Rack Depth Range (front to back flange): 597mm (23.5in) to 927mm (36.5in)

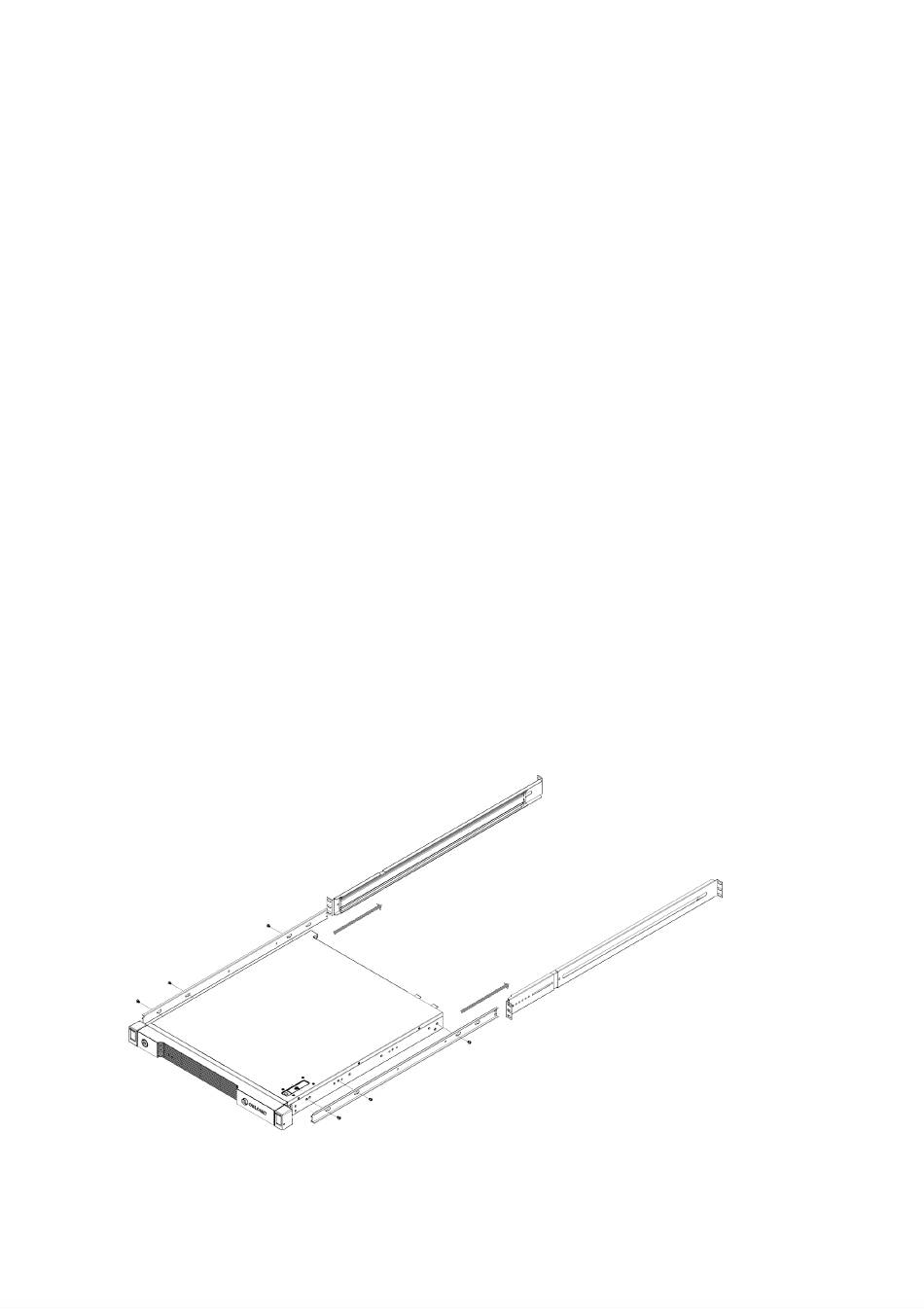

Install the six M4x0.7 L=4mm Low Profile Cheesehead screws provided with the rail kit
