7.1.2 - Rackmount 23" Ball Bearing Cable Management Arm Slide Rail Kit

The 23" Ball Bearing Cable Management Arm Slide Rail Kit is an optional accessory that enhances the
standard ball bearing slide rail options by providing a cable management arm to neatly organize and
secure cable connections to the Edge Server system while still supporting easy removal of the server
from the rack for maintenance and upgrades.
The 23" Ball Bearing Slide rail kit can be chosen at time of configuration based on the rack depth
requirements.
Mounting Hole: Square, Rack Depth Range (front to back flange): 597mm (23.5in) to 927mm (36.5in)

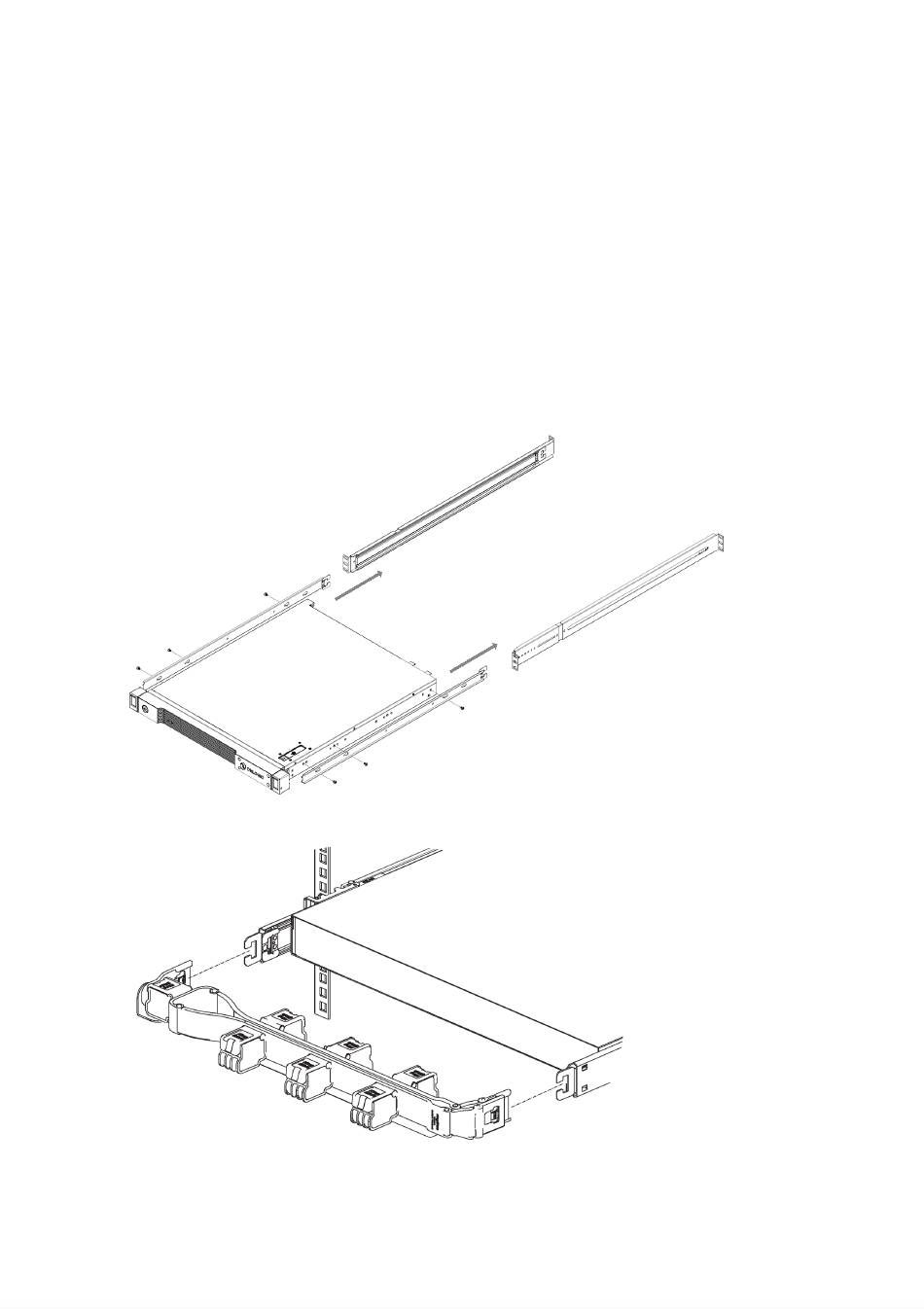

Install the six M4x0.7 L=4mm Low Profile Cheesehead screws provided with the rail kit
