4.3 - Default Fan Settings

The system is configured to operate in accordance with a closed loop thermal algorithm which
accommodates for components temperature maximums, reduced acoustics, lower power
consumption, and optimal performance.

4.3.1 - Fan Zone Assignments

The fan zone assignments, default closed loop tables, and associated temperature sensors are
outlined in this section.

4.3.1.1 - Fan Zone 1 - CPU Area

Assigned Temperature Sensor: TEMP_CPU
Assigned Fans: FAN3, FAN4, FAN5

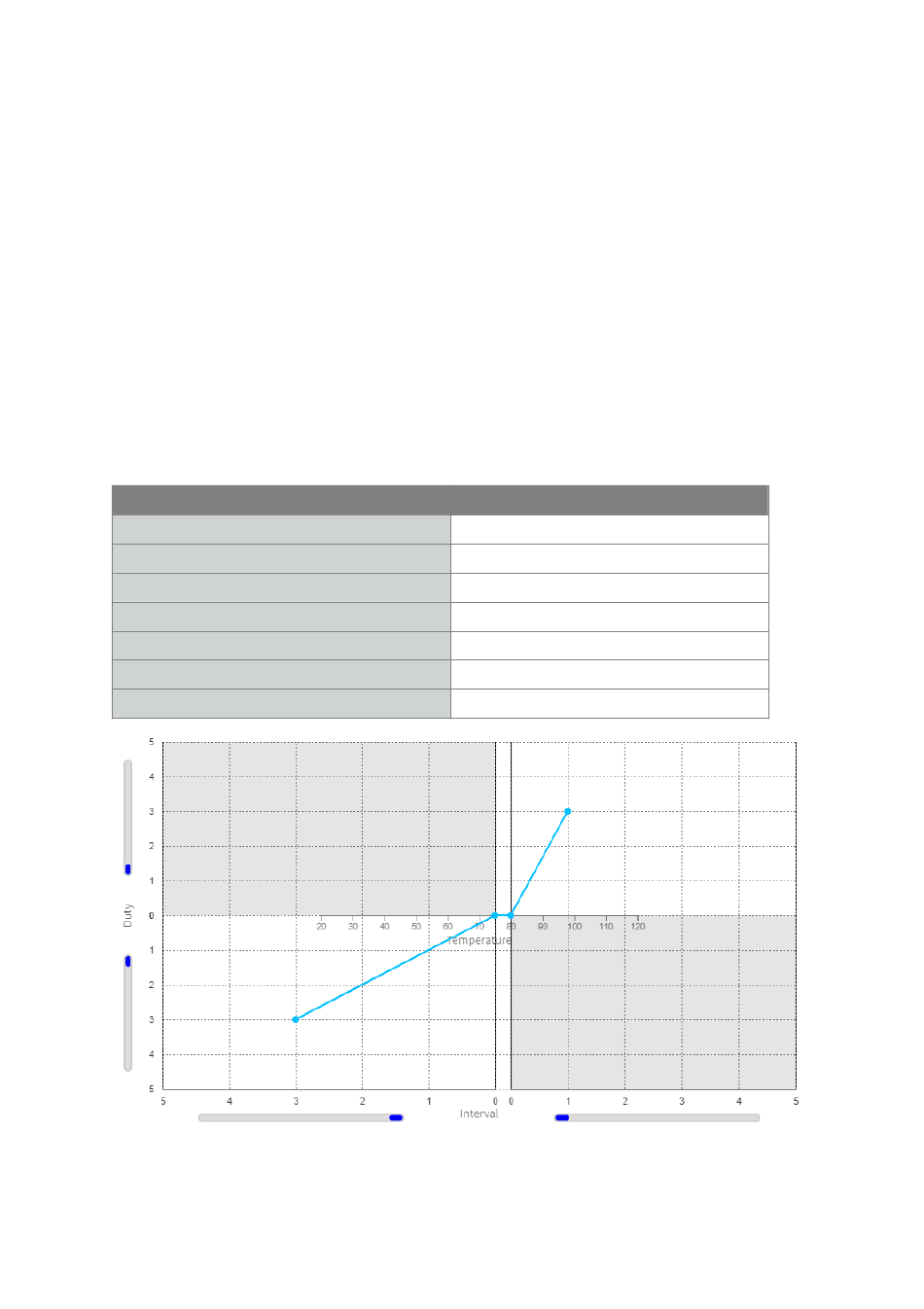

Closed Loop Table 1
Ramp Up Temp (°C)
Ramp Up Interval (sec)
Ramp Up Duty (%)
Ramp Down Temp (°C)
Ramp Down Interval (sec)
Ramp Down Duty (%)
Ramp Threshold (°C)
Value
80
3
1
75
3
3
0
