Summary of Contents for ADJ PIXIE DRIVER 2000 V3

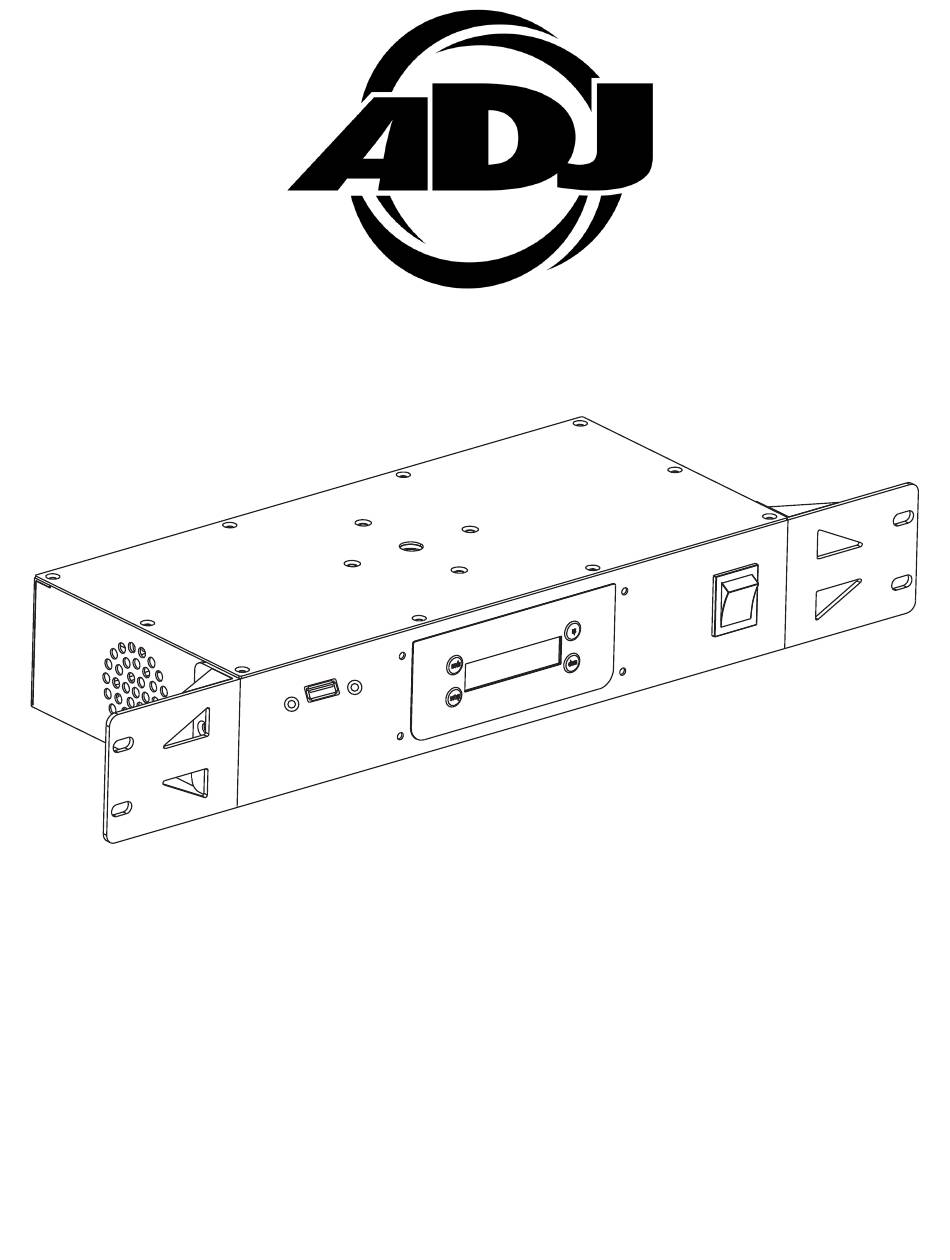

  • Page 1 PIXIE DRIVER 2000 V3 User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Features | Warranty Registration Safety Guidelines Overview Installation Remote Device Management (RDM) Driver Output Limitations RGB Pixel Control Max Patch System Menu Software Updates Specifications Dimensional Drawings Accessories...
  • Page 4: General Information

    Twist-Lock power cable 19-inch rack mount ears 4-pin data cable CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com...
  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
  • Page 6: Features | Warranty Registration

    WA R R A N T Y R E G I S T R AT I O N The Pixie Driver 2000 V3 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.
  • Page 7: Safety Guidelines

    S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device may have to be returned for service •...
  • Page 8: Overview

    O V E R V I E W Display Screen Button Mode Button Down Button Setup Button Service Power Port Switch Safety Kling-Net/ Output Cable Art-Net Fuses Loop Ports (10A) Main Power Signal Fuse Input Inputs (5A)
  • Page 9: Installation

    I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING! Keep drive a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! The driver MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
  • Page 10 I N S TA L L AT I O N RACK MOUNTING This device can be mounted in a standard 19-inch rack using the mounting brackets located on each side of the device. Make sure to use mounting hardware that fits the mounting holes on the device as well as the rack itself.
  • Page 11 I N S TA L L AT I O N MULTIPLE DRIVERS Up to five (5) Pixie Driver 2000 V3 devices may be daisy-chained directly together and linked to a single controller. See the image below for reference. Do NOT daisy-chain more than five (5) devices directly together.
  • Page 12: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
  • Page 13: Driver Output Limitations

    D R I V E R O U T P U T L I M I TAT I O N S There is a limitation to how many pixels can be controlled by each driver output port, which in turn determines the maximum number of lighting fixtures that can be controlled by a single output or driver.
  • Page 14 D R I V E R O U T P U T L I M I TAT I O N S Your Pixie Driver 2000 V3 is programmed not to allow Pixie Strip fixtures to be added in such a way that the maximum number of pixels per port would be exceeded.
  • Page 15: Rgb Pixel Control

    R G B P I X E L C O N T R O L This feature gives the user the ability to adjust the RGB Pixel Control configuration of the device. Individual pixels may be controlled independently for finer control over the resolution of the device’s lighting display.
  • Page 16 R G B P I X E L C O N T R O L Available pixel control modes: Pixie Strip 30 Pixie Strip 60 Pixie Strip 120 30x1 60x1 120x1 15x2 30x2 60x2 10x3 20x3 40x3 15x4 30x4 12x5 24x5 3x10 10x6...
  • Page 17: Max Patch

    M A X PAT C H In Artnet or sACN mode, this driver features a Max Patch function, which allows the user to configure a group of fixtures into an assembly that resembles a large video panel. Follow the steps below: 1.
  • Page 18: System Menu

    S Y S T E M M E N U The device includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made (see image below). • The MODE button is used to cycle through main menu options, or to return to the previous menu. The SETUP button is used to select an option in either the main menu or the sub-menu of any main •...
  • Page 19 S Y S T E M M E N U MODE SET UP UP/DOWN DESCRIPTION Manual Control Red Dimmer Adjust intensity of red color Red: xxx Manual Control Green Dimmer Adjust intensity of green color Green: xxx Manual Control MANUAL MODE Blue Dimmer Adjust intensity of blue color Blue: xxx...
  • Page 20 S Y S T E M M E N U MODE SETUP UP / DOWN DESCRIPTION sACN Out x DMX Universe Set Set the DMX universe of each output (x). U:xxxxx Select which Pixie Strip model will be sACN Out x connected to each output.
  • Page 21: Software Updates

    S O F T WA R E U P D AT E S To update the unit via the USB port, follow the directions shown below: 1. Begin by loading the software provided by ADJ onto an empty USB flash drive (4GB or smaller is recommended).
  • Page 22: Specifications

    S P E C I F I C AT I O N S Control Features: • Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120 • Manual RGB mode • Internal programs •...
  • Page 23: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S Dimensions may not be drawn to scale. 5.9in 2.9in (74mm) (150mm) 7.1in (180.9mm) 2.6in (65.2mm)
  • Page 24: Accessories

    A C C E S S O R I E S Order Code Description PIX158 PSLC1: 1-foot Pixie Strip Link Cable PIX174 PSLC3: 3-foot Pixie Strip Link Cable PIX188 PSLC5: 5-foot Pixie Strip Link Cable PIX200 PSLC10: 10-foot Pixie Strip Link Cable PIX213 PSLC15: 15-foot Pixie Strip Link Cable PIX229...
  • Page 25 This page intentionally left blank.
