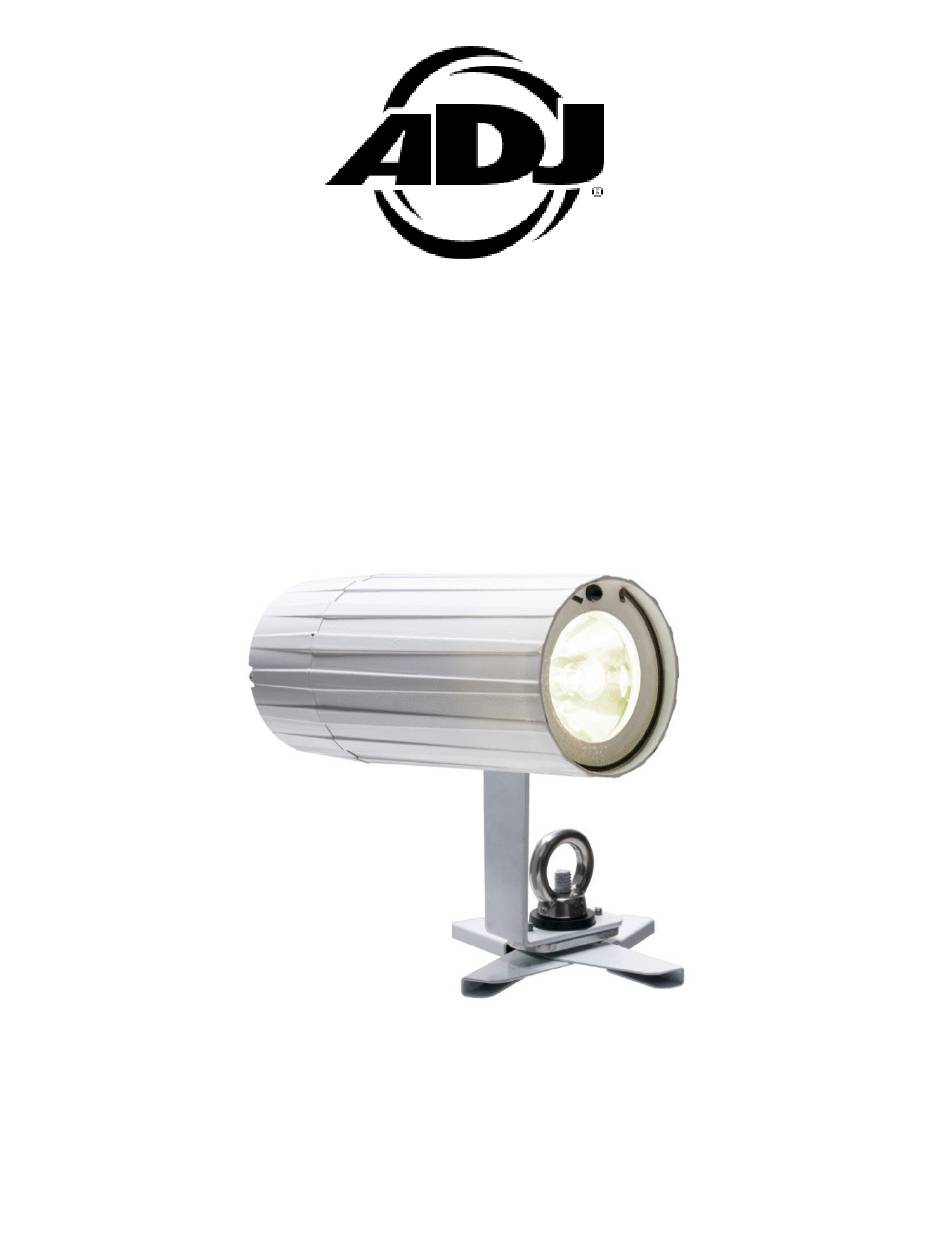

- Page 1 PINPOINT GO WW PLUS User Manual Revised 05/09/2023...
- Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S Introduction General Instructions | Features | Warranty Registration Limited Warranty (USA Only) Safety Guidelines Battery Precautions Installation | Color Filter Installation Operating Instructions UC IR Remote | ADJ LED RC3 Remote Photometric Chart | Dimensional Drawings | Cleaning Specifications... -
Page 4: Introduction
Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ PinPoint GO WW Plus is part of ADJ’s continuing pursuit to create high quality intelligent lighting. The PinPoint GO WW Plus is a bright, battery powered, LED pinspot. -
Page 5: General Instructions | Features | Warranty Registration
Fast Fade and Slow Fade • Compatible with ADJ UC IR Remote and ADJ LED RC3 (all sold separately) W A R R A N T Y R E G I S T R A T I O N This unit carries a two year limited warranty. Please fill out the enclosed warranty card to validate your purchase. -
Page 6: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 7: Safety Guidelines
S A F E T Y P R E C A U T I O N S • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. • Do not spill water or other liquids into or on to your unit. •... -
Page 8: Battery Precautions
Never soak/drop the batteries in liquids such as water, seawater, soft drinks, juices, or coffee. 2.6 Battery replacement For battery replacement, please contact ADJ customer support. 2.7 Do not use a damaged battery The battery may be damaged as a result of shock or impact during shipping. In the event that the bat-... - Page 9 B A T T E R Y P R E C A U T I O N S 3. BATTERY STORAGE During storage, the battery should be stored at room temperature with a charge of at least 50%. ADJ recommends that during long periods of storage, the battery be charged every 6 months. Doing so will prolong the life of the battery, in addition to making sure that the battery charge does not fall be- low the 30% mark.
-
Page 10: Installation | Color Filter Installation
I N S T A L L A T I O N There are two possible installation methods for this unit. X-Clip Method: The unit includes an X-Clip to allow installation from drop down ceilings. Always ensure that the unit is firmly fixed to avoid vibration and slipping during operation. Always ensure that the structure to which you are attaching the unit is secure and capable of supporting at least 10 times the unit’s weight. -
Page 11: Operating Instructions
When operating the fixture from the built-in control panel, press and hold the MODE button for 5 seconds to switch between normal mode and energy saving mode. • When using the ADJ UC IR, press and hold the STAND BY button for 5 seconds to switch be- tween normal mode and energy saving mode. •... -
Page 12: Uc Ir Remote | Adj Led Rc3 Remote
A D J L E D R C 3 R E M O T E The ADJ LED RC3 infrared remote (Sold Separately) has a wide range of functions, giving the user complete control of this fixture. The controller must be aimed at the front of the fixture, and maximum range is 30 feet. -
Page 13: Photometric Chart | Dimensional Drawings | Cleaning
P H O T O M E T R I C C H A R T D I M E N S I O N A L D R A W I N G S 183mm/7.20” 128.5mm/5” 61mm/2.40” C L E A N I N G Due to fog residue, smoke, and dust, cleaning of the internal and external optical lenses must be car- ried out periodically in order to optimize light output. -
Page 14: Specifications
Rechargeable battery included in fixture • Includes Power Adapter (DC 8.7V 1A) • Compatible with ADJ UC IR Remote Control & ADJ LED RC3 (not included) • Battery Charge Time: 6.5 Hours (With POWER switch off) • Battery Life: 10 Hours (Full On) 18 Hours in Energy Saving Mode (Full Charge) - Page 15 This page intentionally left blank.
