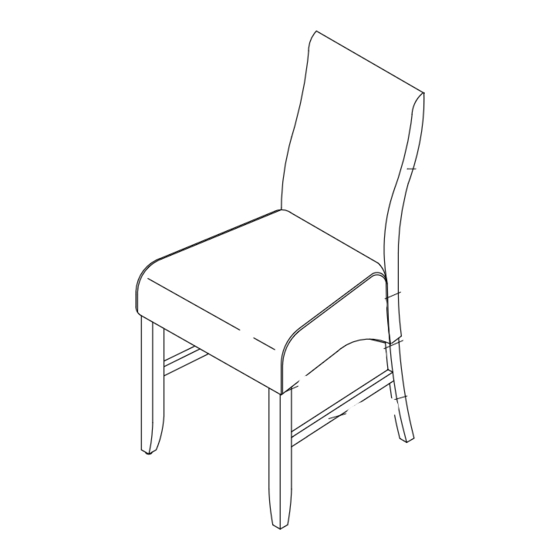

MODEL : 2662-18 SIDE CHAIR
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts.
Which may have come loose inside the carton during shipment. Identify and count all parts and compare with
the hardware list as below :
Hardware List
Parts List
PARTS DETAILS
ASSEMBLY INSTRUCTIONS
No.
1
3
No.
A
Back rest
B
Seat
C
Front Leg (L & R)
Description
JCBB M8
JCBB M8
Description
Dimension
8 x P1.0 x 40mm [Length]
8 x P1.0 x 80mm [Length]
Page 1 of 2
Qty
2 Pcs
8 Pcs
Qty
1 Pc
1 Pc
2 Pcs
A
B
C
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO 2662-18
Summary of Contents for ROOMS TO GO 2662-18
- Page 1 Page 1 of 2 ASSEMBLY INSTRUCTIONS MODEL : 2662-18 SIDE CHAIR Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts. Which may have come loose inside the carton during shipment. Identify and count all parts and compare with...
- Page 2 Page 2 of 2 Assembly step STEP 1 DO NOT TIGHTEN THE SCREWS UNTIL Assemble BACKREST to SEAT as illustration shown. FULLY SET UP. STEP 1b STEP 1a 2 -80mm 1 -40mm STEP 2 DO NOT TIGHTEN THE SCREWS UNTIL Assemble FRONT LEG to SEAT as illustration shown.
