ROOMS
TO GO
Manufactured by RHHL for Rooms To Go
ITEM
DESCRIPTION
1
Allen Bolt 1/4" x 3/4" (18 TPI)
2
Spring Washer 5/16" x 12mm
3
WASHER 1/4"
4
Allen Wrench 5/32"
A
METAL LEG

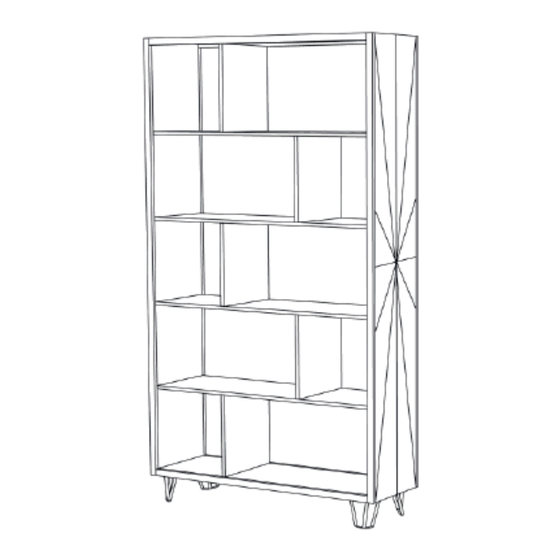

ROOM DIVIDER
B
Hardware Pack Location(s):
Version: #1
Date Created: 12/18/2023
ASSEMBLY INSTRUCTIONS
RHHL 2352-502 40" ROOM DIVIDER
2352-503 54" ROOM DIVIDER
HARDWARE LIST
PART LIST
Bottom Shelf
SKU
QTY
NL-ABOLT-001
12
NL-ABOLT-001
12
NL-WASH-001
12
1
NL-AWRNCH-001
4
1
SKU 26223521
26323523
Page 1 of 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO 2352-502
Summary of Contents for ROOMS TO GO 2352-502
- Page 1 ASSEMBLY INSTRUCTIONS ROOMS RHHL 2352-502 40” ROOM DIVIDER SKU 26223521 TO GO 2352-503 54” ROOM DIVIDER 26323523 Manufactured by RHHL for Rooms To Go HARDWARE LIST ITEM DESCRIPTION IMAGE NL-ABOLT-001 Allen Bolt 1/4” x 3/4” (18 TPI) NL-ABOLT-001 Spring Washer 5/16” x 12mm WASHER 1/4”...
- Page 2 TO GO 2352-503 54” ROOM DIVIDER 26323523 Manufactured by RHHL for Rooms To Go ***Caution : Please read all intructions carefully before starting the assembly process. These parts are cumbersome and heavy. Therefore, two people are recommended in order to prevent personal injury and insure the parts are not damage during assembly.
