ASSEMBLY INSTRUCTIONS MODEL No. SPA49-210 / 26149232

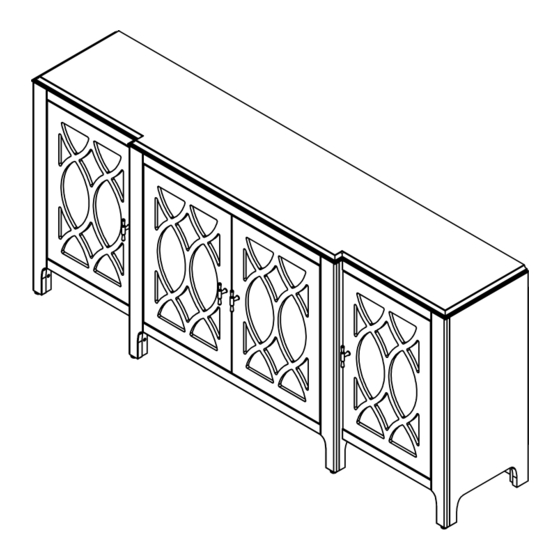

4 DOOR CABINET
Important: Be sure to check all packing material carefully for small parts which may come loose
inside carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with part list and hardware illustrations to be sure all parts are present. If any part(s)
is missing or damaged contact your dealer's customer services deparment. For efficient and
fast service, please indicate the model number and the part needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be in
the parts bag, they may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
HARDWARE:
ANTI-TIP
Part No. HB-65UV (1 Pc)
BOLT 8 x 32 x 7/8"
Part No. HCPP-078A
(4 Pcs) INSTALLED
SPA49-211/ 26349236
SPA49-231/ 26749234
SPA49-235 /26549230
PULL
Part No. HBJ-3280
(4 Pcs)INSTALLED
PAGE 1 OF 4
