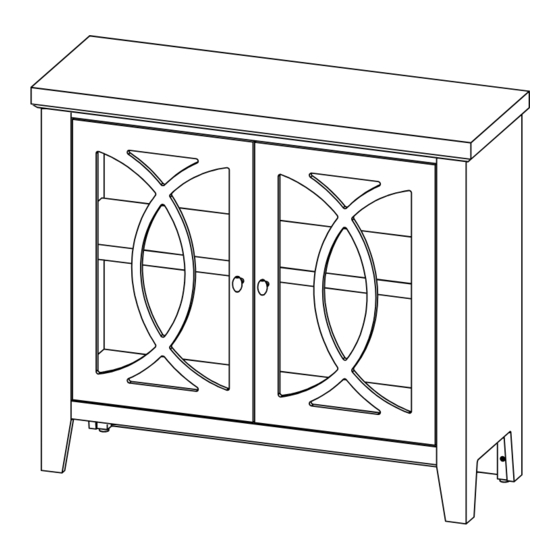

2 DOOR CABINET
Important: Be sure to check all packing material carefully for small parts which may come loose
inside carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s)
is missing or damage, contact your dealer's customer service deparment. For efficient and
fast service, please indicate the model number and the parts needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be in
the parts bag, they may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
ANTI-TIP
Part No. HB-488UV (1Pc)
ASSEMBLY INSTRUCTIONS
MODEL No. FLO10-16 / 26924995
HBJ-10730-41
Part No.
(2 Pcs) INSTALLED
FLO10-35 / 26524997
FLO10-86 / 26824993
FLO10-114 / 26624999
BOLT CH. TRUSS 8 x 32 x 7/8"
Part No. HCPP-078
(2 Pcs) INSTALLED
Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO FLO10-16
Summary of Contents for ROOMS TO GO FLO10-16
- Page 1 ASSEMBLY INSTRUCTIONS MODEL No. FLO10-16 / 26924995 FLO10-35 / 26524997 2 DOOR CABINET FLO10-86 / 26824993 FLO10-114 / 26624999 Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware.
- Page 2 WARNING INSTALL FURNITURE TIPPING RESTRAINT KIT Warning Advertencia Avertissement ANTI-TIP Installation instructions: This tip restraint must be attached to wall stub using 2” screw enclosed 1.Attach a bracket securely to the back top rail of the furniture using the 5/8” screw provided through the smaller hole. 2.
- Page 3 INSTRUCTIONS SHEET ADJUSTABLE WOOD SHELF STEP 1. STEP 2. Page 3 of 4 STEP 3.
- Page 4 Directions of Adjusting Euro Style Hinges 1.- PLEASE REMOVE SHIPPING SCREW. #1 2.- LATERAL ADJUSTMENT a)Loosen screw #4 slightly. b)Turn screw #2 to move door leftor right. c)Re-tighten screw #4. d)Adjust all hinges accordingly. 3.- VERTICAL ADJUSTMENT Loosen screws #3 to move door upor down, then tighten securely.
