IVY LEAGUE 2.0 COLLECTION
Read all instructions before assembling bunk bed and keep these instructions for future reference.
-
Before each usage or assembly, inspect bunk bed for damaged hardware, loose joints, missing
-
parts, or sharp edges. DO NOT Use bunk bed if any parts are missing or broken.
DO NOT Use substitute parts. Contact your local Rooms To Go or visit www.ROOMSTOGO.COM
-
for replacement parts and instructional literature if needed.
Follow the information on the warnings appearing on the upper bunk end structure and on the carton,
-
DO NOT REMOVE WARNING LABEL FROM BED.
Always use the recommended size mattress or mattress supports, or both to help prevent the likelihood
-
of entrapment or falls.
-
Ensure thickness of mattress and foundation combine does not exceed
mattress surface is at least
Do not allow children under 6 years of age to use the upper bunk.
-
Periodically check and ensure that the guardrail, ladder, and other components are in their proper
-
position, free from damage, and that all connectors are tight.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
-
Limit top bunk use to one person.
-
Always use the ladder for entering and leaving the upper bunk.
-
Use of night light may provide added safety precaution for a child using the upper bunk.
-
Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed next to
-
the wall, the guardrail that runs the full length of the bed should be placed against the wall to
prevent entrapment between the bed and wall.
The use of water or sleep flotation mattress is prohibited.
-
This bunk bed meets all the requirements of ASTM 1427-19.
-
STRANGULATION HAZARD:
Never attach or hang items to any part of the bunk bed that are not designed for
use with the bed; for example, but not limited to, hooks, belts, and jump ropes.
1/12/2021
THANK YOU FOR YOUR PURCHASE
WARNING DANGER
Failure to follow these warnings and assembly instructions could result in serious
injury or death. To help prevent serious or fatal injuries from entrapment or falls:
5 inches (127mm)
10 inches (255mm)
below upper edge of guardrails.
and
Page 1 of 72

Advertisement

loading
Need help?

Need help?

Do you have a question about the KIDS IVY LEAGUE 2.0 3462360P and is the answer not in the manual?

Questions and answers

Briannah Sneed
March 11, 2025

On the full over full instructions I just needed replacement bolts and it only says 50mm it's not specific?

2 comments:
Mr. Anderson
March 11, 2025

The replacement bolts needed for the ROOMS TO GO KIDS IVY LEAGUE 2.0 3462360P full over full bed are:

- 24 pieces of 50 mm bolts
- 8 pieces of 17 mm bolts

This answer is automatically generated

Briannah Sneed
March 11, 2025

@Mr. Anderson I know I need the 50mm bolts but I does not specify WHICH ones the ones I previously purchased are to skinny and I have everything else it didn't say anything about 17mm bolts though?

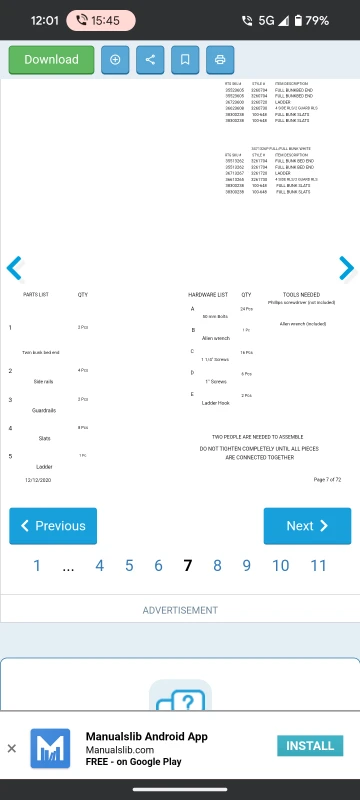

User image 67d0cbe9ac224
