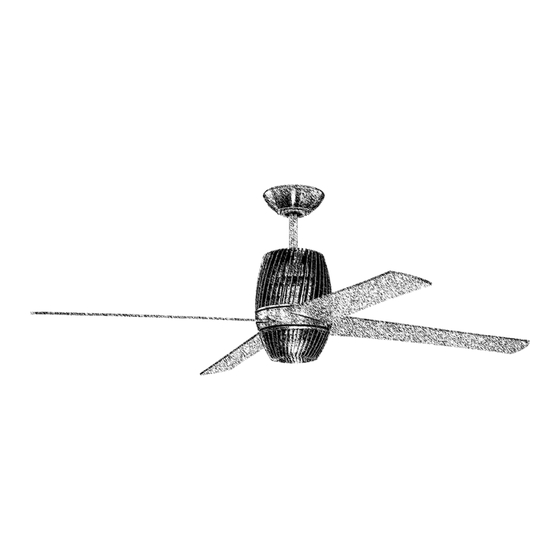

Craftmade Torbeau TOR52 Installation Manual
  1. Manuals
  2. Brands
  3. Craftmade Manuals
  4. Fan
  5. Torbeau TOR52
  6. Installation manual

Craftmade Torbeau TOR52 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Torbeau
Installation Guide
For Model:
TOR52
E192641
net weight of fan: 18.96 lb (8.6 kg)
READ THESE INSTRUCTIONS AND
AND SAVE THEM FOR FUTURE USE

Table of Contents:

Warranty. pg. 11
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torbeau TOR52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftmade Torbeau TOR52

Summary of Contents for Craftmade Torbeau TOR52

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND AND SAVE THEM FOR FUTURE USE Torbeau Installation Guide For Model: Table of Contents: TOR52 Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet that the hanging location allows the blades a (2.13 m) (76 cm) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 12ft.

  • Page 5: Fan Assembly. Pgs

    stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Using the Allen wrench provided in a hardware pack, loosen the Allen bolts at the top of the motor...

  • Page 6: Wiring. Pgs

    5. Fan Assembly. (cont.) wood ceiling joist With the hanging bracket secured to the outlet box and safety cable loop able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.

  • Page 7: Canopy Assembly

    6. Wiring. (cont.) [PLEASE NOTE: Wall and/or handheld remote Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. control must be used for fan to operate. If you *NOTE: This equipment has been tested and found to comply with the limits for a Class B do not wish to use the wall control, please digital device, pursuant to Part 15 of the FCC Rules.

  • Page 8: Blade Assembly

    8. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and motor housing break. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. Locate 12 blade attachment screws and washers blade in hardware pack.

  • Page 9: Assembly Of Handheld Remote Control

    10. Handheld Remote Control Assembly. remote IN ORDER TO USE THE HANDHELD REMOTE CONTROL, control PLEASE CONTINUE WITH SECTION 10 for remote control cover assembly instructions. If you have already installed the wall control but do not wish to use the handheld remote control, please proceed to Section 11.

  • Page 10: Automated Learning Process./Activating Code

    11. Automated Learning Process./Activating Code. CAUTION: The wall and/or handheld remote control can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Restore electrical power and then, if using wall control, set slider switch on wall control to the ON position.

  • Page 11: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure wall control (optional use) is wired Return fan, shipping prepaid, to Craftmade. We will repair properly. or ship you a replacement fan, and we will pay the return 3.
