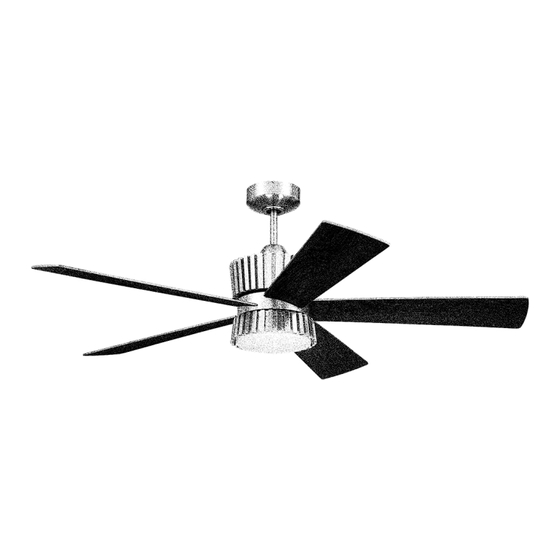

Theiry

Installation Guide

For Model:

TRY52

WARNING:

DC Motor will not operate

until blades are installed

Remote control and

receiver are

pre-programmed

E192641

net weight of fan: 19.84 lb ( 9 kg )

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Theiry TRY52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Theiry TRY52

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Theiry Table of Contents: Installation Guide Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 For Model: Installation Preparation. pg. 5 TRY52 Hanging Bracket Installation. pg. 5 Fan Assembly.
Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.
Page 3: Safety Tips
Light kit is dimmable to 10% with the remote control included. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 4: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor assembly and place on carpet or Styrofoam to avoid damage to finish. *The motor stabalization pieces may be discarded at this time. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 5: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a clearance of inches 7ft. (2.13m) from the floor and 30in. (76cm) from any 7 feet (76cm) (2.13m) wall or obstruction. This fan is suitable for room sizes up to 400 square feet (37.2 square meters).
Page 6: Fan Assembly. Pgs
5. Fan Assembly. Remove hanging ball from downrod provided by set screw loosening set screw on hanging ball. Lower hanging ball and remove stop pin and then slide stop pin hanging ball off of the downrod. [Refer to diagram 1.] hanging ball Loosen yoke set screws and nuts at top of motor housing.
Page 7 5. Fan Assembly. (cont.) Thread safety cable and wires through hanging ball; then slide hanging ball over downrod--the set screw hole top of the downrod should be noted as having a stop pin set screw hole; use this hole when setting the set screw.
Page 8: Wiring
6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure switch is turned to the OFF position. white supply wire CAUTION: Be sure outlet box is properly ground (green grounded and that a ground wire (GREEN or black supply wire or bare) ground...
Page 9: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging bracket hanging and remove screw closest to the open end of the bracket hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part screw of slotted hole in canopy over loosened screw in hanging bracket and push up.
Page 10: Light Kit Assembly (Optional)
9. Light Kit Assembly (Optional). Remove 1 screw from motor plate on underside of motor housing and partially loosen the other motor 2 screws. Align slotted holes in fitter plate with housing loosened screws in motor plate, allowing female plug from motor housing to come motor plate through hole in middle of fitter plate.
Page 11: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on backside of remote control by loosening screw on battery cover.
Page 12: Activating Your Ceiling Fan Smart Features
12. Activating your ceiling fan smart features. (Optional) To enjoy all your ceiling fan smart features (such as Breeze speed setting, Schedules, Voice Activation, and more) you must connect it to your Wi-Fi network. Please follow these steps: 1. Download the Bond Home App, available on the Google Play Store and Apple App Store, or use the QR code to download the app.
Page 13: Testing Your Fan
13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test the light ON/OFF function by pressing the button; test the dimmer function (if applicable) by pressing the button and holding it down for up to 5 seconds.
Page 14: Troubleshooting
Warranty. Troubleshooting. CRAFTMADE LIMITED LIFETIME WARRANTY: WARNING: Failure to disconnect power supply prior CRAFTMADE warrants this fan for use as intended to troubleshooting any wiring issues may result in under the following provision: CRAFTMADE will serious injury. replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate Problem: Fan fails to operate.
