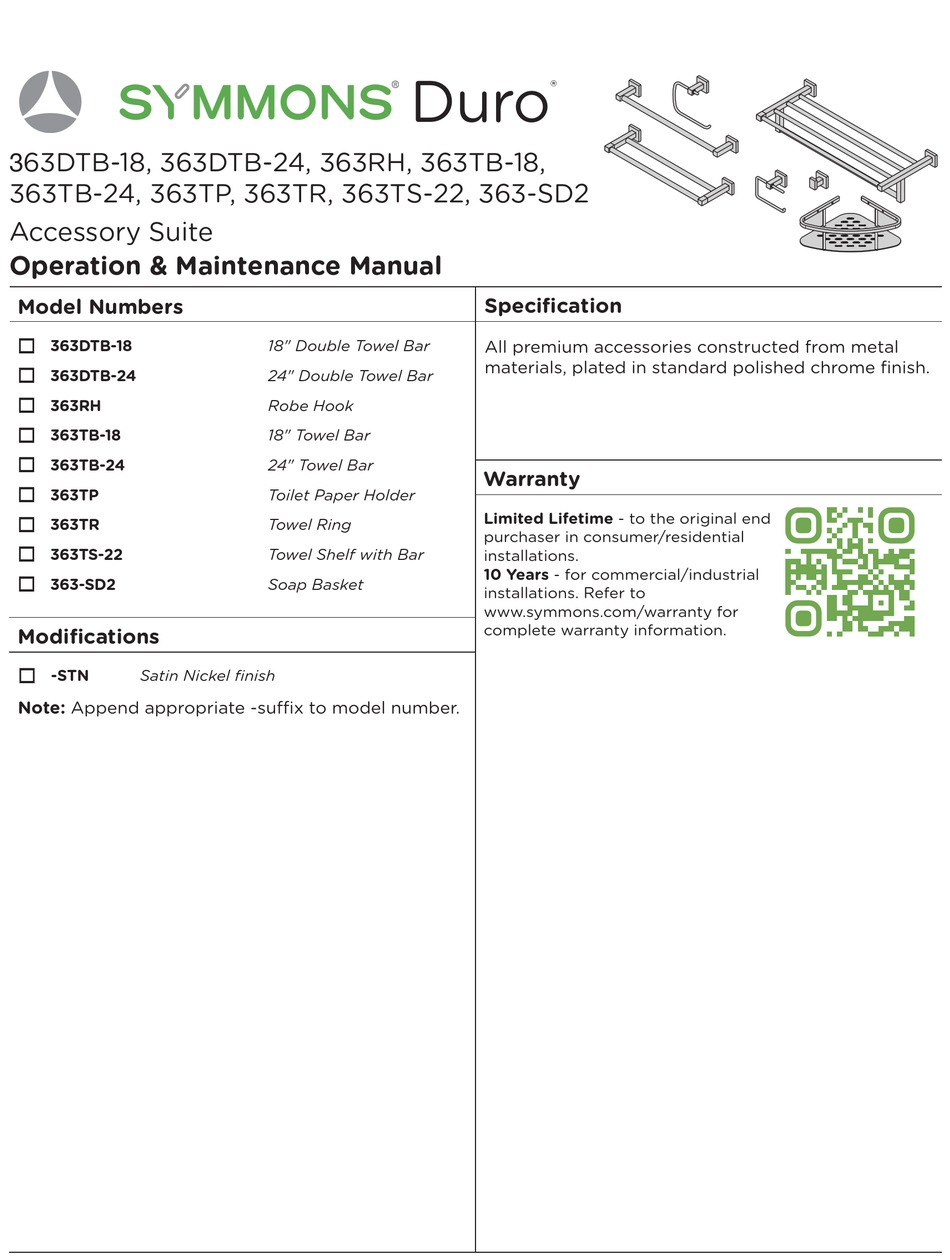

363DTB-18, 363DTB-24, 363RH, 363TB-18,
363TB-24, 363TP, 363TR, 363TS-22, 363-SD2
Accessory Suite
Operation & Maintenance Manual
Model Numbers
363DTB-18
363DTB-24
363RH
363TB-18
363TB-24
363TP
363TR
363TS-22
363-SD2
Modifications
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Duro
18" Double Towel Bar
24" Double Towel Bar
Robe Hook
18" Towel Bar
24" Towel Bar
Toilet Paper Holder
Towel Ring
Towel Shelf with Bar
Soap Basket
®
Specification
All premium accessories constructed from metal
materials, plated in standard polished chrome finish.
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Duro 363DTB-18
Summary of Contents for Symmons Duro 363DTB-18
- Page 1 363TS-22 Towel Shelf with Bar installations. 10 Years - for commercial/industrial 363-SD2 Soap Basket installations. Refer to www.symmons.com/warranty for complete warranty information. Modifications -STN Satin Nickel finish Note: Append appropriate -suffix to model number.
- Page 2 Dimensions 363TR 363RH 363TP Measurements 1-13/16", 46 mm 2", 51 mm 5-3/8", 137 mm 4-1/8", 105 mm 2-1/2", 64 mm 6-7/8", 175 mm 5-3/4", 146 mm 363TB-18 18", 457 mm 19-13/16", 503 mm 3-1/4", 82 mm 24", 610 mm 25-13/16", 656 mm 5-3/8", 136 mm 22", 559 mm 23-13/16", 605 mm...
- Page 3 Installation 2a) Dry Wall Option: Place 2b) Stud Option: Center bracket 1) Measure and mark centerlines for mounting bracket installation mounting brackets into desired on centerline. Using brackets using dimensions on page 2. position. Using brackets as a as a guide, carefully drill 3/16" guide, carefully drill 5/16"...
- Page 4 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2021 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3020 REV H 031022...
