This Quick Start intends to provide information needed to get started with MDC‐711 and MDC‐714.
Please also consult the user manual for detailed information on the setup and use of the module.
What's In the Box?
In addition to this guide, the package includes the following items:

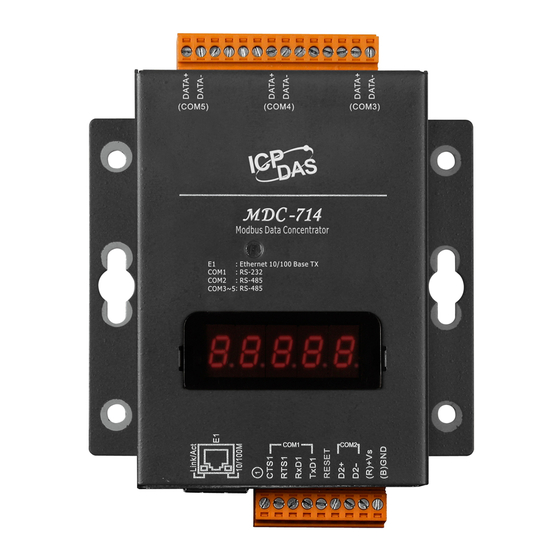

Module
Technical Support
User Manual
CD:\NAPDOS\Modbus\MDC_700\Document\
http://ftp.icpdas.com/pub/cd/8000cd/napdos/modbus/mdc_700/document/
Firmware
CD:\NAPDOS\Modbus\MDC_700\Firmware\
http://ftp.icpdas.com/pub/cd/8000cd/napdos/modbus/mdc_700/firmware/
ICP DAS Website
http://www.icpdas.com
Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com
+7(495)109-02-08 sales@bbrc.ru www.bbrc.ru
Quick Start for MDC‐700 Series
Software Utility CD
RS‐232 Cable
(CA‐0910)
November 2014, Version 1.00
Screw Driver
1
Advertisement
Related Manuals for ICP DAS USA MDC-700 Series
Summary of Contents for ICP DAS USA MDC-700 Series
- Page 1 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru Quick Start for MDC‐700 Series November 2014, Version 1.00 This Quick Start intends to provide information needed to get started with MDC‐711 and MDC‐714. Please also consult the user manual for detailed information on the setup and use of the module. What’s In the Box? In addition to this guide, the package includes the following items: RS‐232 Cable Module Software Utility CD Screw Driver (CA‐0910) Technical Support User Manual ...
- Page 2 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru Connecting to PC, Network and Power The module is equipped with a standard Ethernet port (RJ‐45) for connecting to an Ethernet Hub/Switch and PC. Moreover, you can also connect the PC directly with an Ethernet cable. Hub/Switch Power supply (+10 ~ +30V ) Assigning an IP address to MDC‐711/MDC‐714 The MDC‐711/MDC‐714 is an Ethernet device, which comes with a default IP address; ther efore, you must first assign a new IP address to the module. To access the MDC‐711/MDC‐71 4 by using b‐based interface, you must know the IP address the MDC‐711/MDC‐714 is using. The MDC‐711/MDC‐714 uses the factory default IP address of 19 2.168.255.1 by default. STEP 1 Power on the computer and the MDC‐711/MDC‐714. STEP 2 Set the IP configuration on your computer. If the MDC‐711 /MDC‐714 is using the default IP address of 192.168.255.1, you must chose IP address for the computer in the range of 192.168.255.2 – 192.168.255.253 that is not already in use. ...
- Page 3 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru STEP 3 Open a web browser and go to the website at http://192.168.255.1, where 192.168.255.1 is the default IP address of your MDC‐711/MDC‐714. STEP 4 Open the IP address configuration interface by clicking the Ethernet Configuration. SETP 5 Choose a new IP address for your MDC‐711/MDC‐714. Make sure that the address you pick is not currently in use by another device on the network. NOTE: The MDC‐711/MDC‐714 can be reset to factory defaults by shorting the RESET pin to GND pin for 3 seconds. The LED display will show “RESET” as below and remove the IP address set previously for the MDC‐711/MDC‐714. Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 4 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru Enabling Adobe Flash Player in Your Browser Your browser must support Adobe Flash Player and have it enabled in order to use the built‐in web server. If you do not have it installed, please go to the following website and install it. The Adobe Flash Player Download Center： http://get.adobe.com/flashplayer/ Go to the Web Site to Check out Functions Go to the web interface at http://xxx.xxx.xxx.xxx, where xxx.xxx.xxx.xxx is the IP address of your MDC‐711/MDC‐714. Any standard browser can be used to interface the MDC‐711/MDC‐714, such as Mozilla Firefox, Internet Explorer or Google Chrome. NOTE: If you haven’t changed the default IP address of the module, please refer to “2. Assign an IP address on MDC‐711/MDC‐714” to configure it. Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
