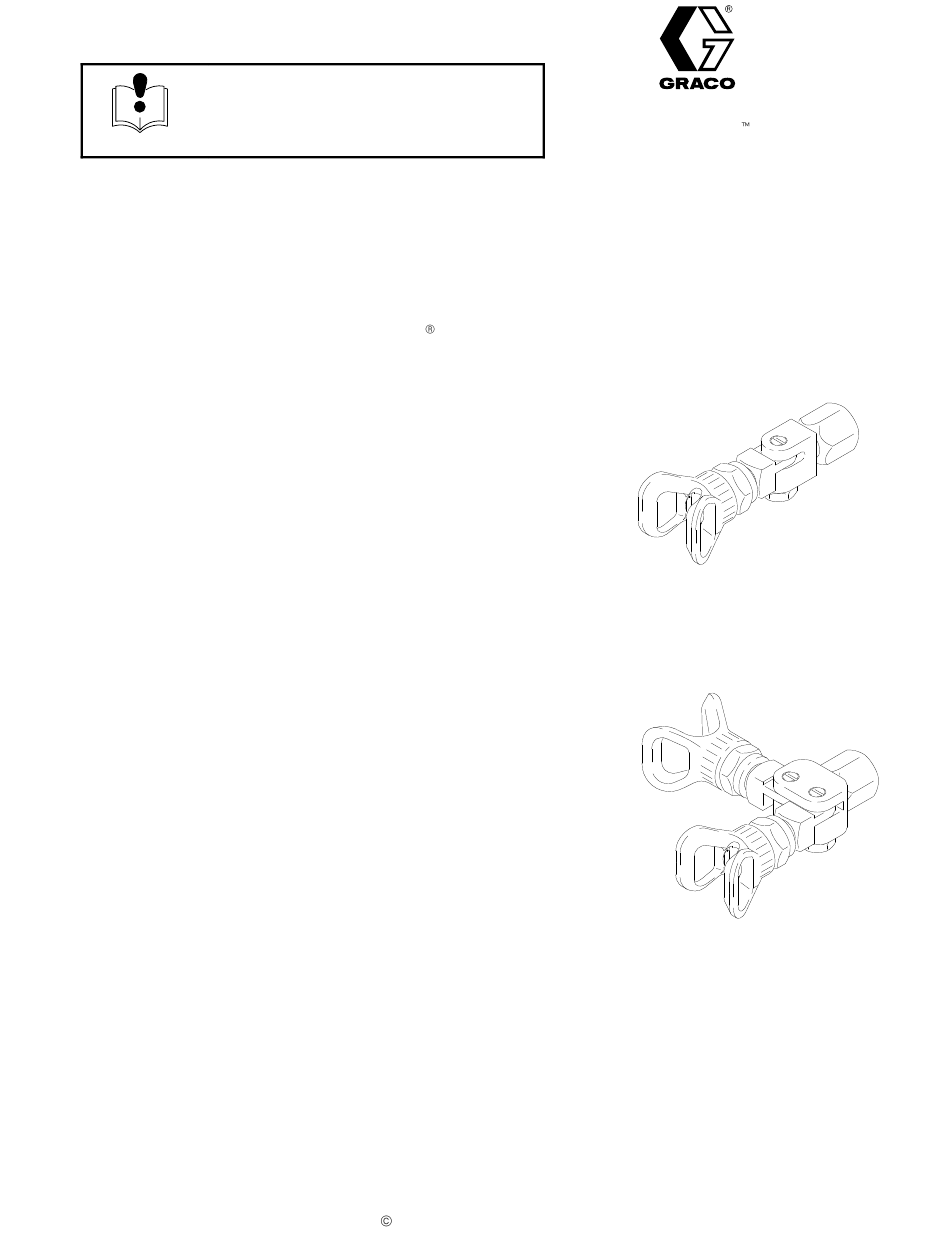

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
DIRECTIONAL
Spray Nozzle Adapters
3000 psi (21.0 MPa) (210 bar) Maximum Working Pressure
Fits Automatic and Hand-held Hydra-Spray , Airless Spray Guns
* Spray tip not included. Order separately.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1997, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
306–788
Supersedes Rev. F
First choice when
quality counts.

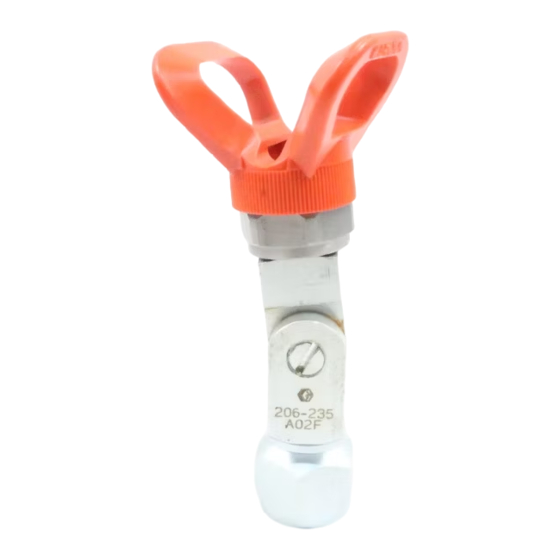

Model 206–235, Series F
Single Nozzle*
Model 206–236 , Series F
Dual Nozzle*
Rev. G
06415
