Check (Level)
Engine oil and oil filter replacement must be
completed in accordance with the service schedules.
Failure to replace the oil and filter at the
recommended interval could cause serious engine
failure.
1. Make the machine safe. Refer to (PIL 01-03).
2. Park the machine on a hard level surface for
accurate measurement of the oil level.
3. Get access to the engine.
4. Check that the oil level is between the two marks
on the dipstick.

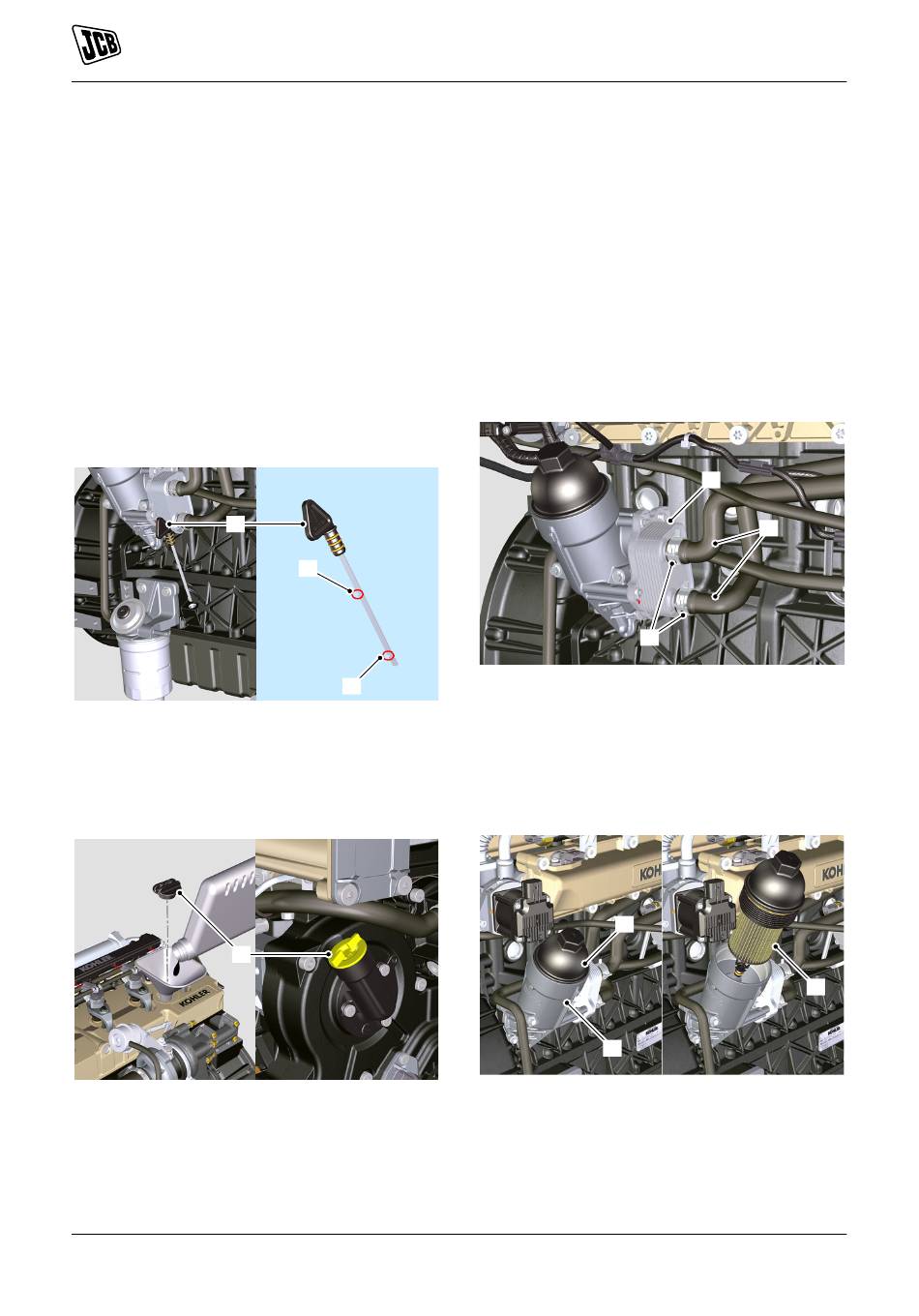

Figure 161.
A
A Dipstick
B Maximum level mark
C Minimum level mark
5. If necessary, add recommended oil through one
of the filler points.
Figure 162.
D
D Oil filler caps
15 - 90
B
C
9813/2700-2
Remove and Install
Before Removal
1. Drain the engine oil, refer to Engine-General,
Drain and Fill (PIL 15-00).
Refer to: Engine > General > General > Drain and
Fill (Page 15-17).
Remove and Install
1. Remove the clamps and remove the pipes from
the oil cooler unit.
Figure 163.
D
D Clamps
E Pipes
F Oil cooler
2. Use a suitable container to recover any residual
oil.
3. Loosen the element holder cap.
Figure 164.
G
H
G Element holder cap
H Oil filter support
J Element
4. Remove the cap and the oil filter element from
the oil filter support.
5. Remove the cartridge from the cap and discard.
15 - Engine
21 - Oil Filter
00 - General
F
E
J
