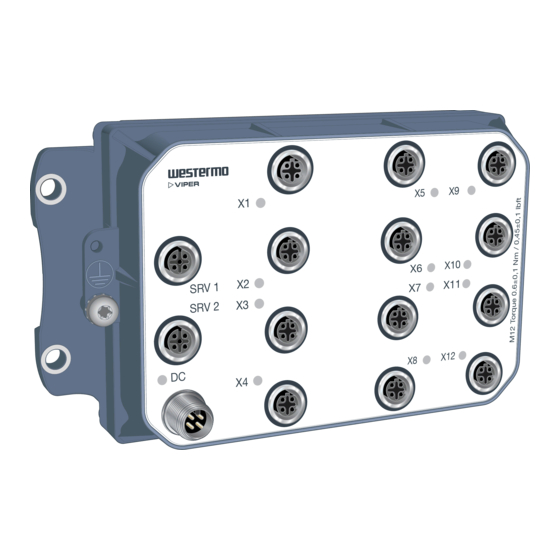

- Page 1 User Guide 6641-2241 Viper-12 s e r i e s SRV 1 SRV 2 X1 2 RST P FRN T CO N X1 2 12-port Ethernet M12 switch www.westermo.com...
-
Page 2: License Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not cover or bring mechanical force to the ventilation membrane on the back of the unit. if the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. -
Page 4: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Type Approval / Compliance eN 61000-6-1, immunity residential environments eN 61000-6-2, immunity industrial environments eN61000-6-3, emission standard for residential, commercial and light-industrial environments eN 61000-6-4, emission industrial environments eN 55022 +A1, emission iT equipment eN 55024, immunity iT equipment FCC part 15 Class B eN 50121-4, railway signaling and telecommunications apparatus eN 50121-3-2:2006 railway applications –rolling stock –... -
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no 12-port unmanaged Ethernet M12 Switch Viper-012 3641-0540 12-port managed Ethernet M12 Switch... -
Page 6: Type Tests And Environmental Conditions
Type tests and environmental conditions Environmental phenomena Basic standard Description Test levels eN 61000-4-2 enclosure Contact: ±6 kV Air: ±8 kV Fast transients eN 61000-4-4 Power port ±5 kV signal ports ±5 kV earth port ±1 kV L-e: ±0.5 kV, 12 Ω, 9 μF, 1.2/50 μs surge eN 61000-4-5 Power port... - Page 7 Description Viper-12 series is a range of switches consisting of managed and unmanaged versions developed for rail and industrial applications. To meet the environmental requirements from rail and harsh industrial applications the switch has rugged M12 ethernet connec- tors and full metal housing. The switch fulfills iP 65 degree of protection when all ports are protected or connected;...
-
Page 8: Interface Specifications
UsB and CON or srV1 and srV2, 1500 VAC rms DC, 1500 VAC rms Connection 4-pin M12 D-code, auto MDi/MDi-X, use e g Westermo cable 3146-1100 M12-M12 – 1 m 3146-1101 M12-M12 – 5 m 3146-1103 rJ45-M12 – 1 m 3146-1104 rJ45-M12 –... - Page 9 1500 VAC rms DC, 1500 VAC rms No isolation to CON Connection 5-pin M12 female A-code, use Westermo UsB plug 3641-0190 CON (Viper-112/212 Managed), Console port electrical specification rs-232 Data rate 115.2 kbit/s Data format...
-
Page 10: Location Of Interface Ports And Led's
Location of interface ports and LED’s Ethernet connection TX (X1 – X12) Position Signal Direction Description No.1 in/Out Transmitted/received data No. 2 in/Out Transmitted/received data No. 3 TX– in/Out Transmitted/received data LeD indicators No. 4 rD– in/Out Transmitted/received data (for details see page 13) Housing shield enclosure of product (ground) - Page 11 Viper-112/212 Managed Viper-012 Unmanaged SRV 1 RSTP FRNT SRV 2 Power Pin number Signal No 1 +DC1 No 2 +DC2 No 3 -COM No 4 -COM Pin number Signal No 1 No 2 VBUs No 3 No 4 No 5 Pin number Signal No 1...
- Page 12 The UsB port can be used to copy configuration and log files to/from the switch. The following steps needs to be taken 1. Connect the UsB plug (use Westermo UsB plug 3641-0190) to the UsB port. 2. Access the switch CLi (via console cable or ssH) 3.
-
Page 13: Led Indicators
LED Indicators Status Description Unit has no power. GreeN All OK, no alarm condition. Alarm condition, or until unit has started up. (Alarm conditions are configurable, see ''WeOs RSTP Management Guide''). FRNT BLiNK Location indicator ("Here i am!"). Activated when connected to iPConfig Tool, or when configur- ing the unit via Web or CLi. -
Page 14: Wall Mounting
Wall mounting There are four 6 mm bore holes intended for mounting the unit. The unit can be mount- ed vertical or horizontal. Use four M6 screws with 12 mm washer on a flat and stable surface. RSTP FRNT Connection of cables recommended tightening torque for the M12 connectors: 0.6 Nm Removal Disconnect all cables and unscrew the unit from the wall. -
Page 15: Getting Started
This product runs Westermo Operating system (WeOs) which provides several management tools that can be used for configuration of the unit. • IPConfig tool This is a custom Westermo tool used for discovery of attached Westermo units. • Web Configuration of the unit using the web browser. -
Page 16: Referring Documents
Referring documents Type Description Document number Management Guide Westermo Os management guide 6101-3201 Factory default on Viper-112/212 it is possible to set the unit to factory default settings by using two standard ethernet M12 cables. 1. Power off the switch and disconnect all ethernet cables. - Page 17 Dimensions Measurements are stated in millimeters. 65,2 53,6 10,9 73,5 48,8 23,3 6,5 (4x) 6641-2241...
- Page 20 9 Chemin de Chilly 91160 CHAMPLAN Phone:+886 2 8911 1710 Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01 e-mail: info@westermo.com e-mail : infos@westermo.fr Westermo Teleindustri AB have distributors in several countries, contact us for further information.
