- Page 1 Viper TBN Series Managed EN 50155 Backbone Routing Switch WeOS...
-
Page 2: Table Of Contents
4.3. Cooling ................17 4.4. Replacement of Product ............17 4.5. EN 45545-2 Mounting Notes ..........18 5. Specifications ................19 5.1. Interface Specifications ............19 5.2. Type Tests and Environmental Conditions ......... 21 6. Revision Notes ................23 Viper TBN Series... -
Page 3: General Information
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
No personal injury Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels Viper TBN Series... -
Page 5: Safety Information
Touch Temperature Limit according to EN/IEC/UL 60950-1. NOTICE - PROTECTIVE EARTHING CONDUCTOR Before powering-up, a protective earthing conductor must be connected to the protective earth terminal with at least AWG15. Viper TBN Series... -
Page 6: Care Recommendations
• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the product. • Do not paint the product. Paint can clog the product and prevent proper operation. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. -
Page 7: Compliance Information
This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a commercial environment. Viper TBN Series... -
Page 8: Simplified Declaration Of Conformity
2.6.3. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information is available at www.westermo.com/support/product-support. -
Page 9: Product Description
Thorough type testing at independent ISO/IEC 17025 and ILAC MRA certified labs, accredited to a wide range of standards, show that the Viper series fulfills EN 50155 and other requirements. The state-of-the-art Westermo production facility ensures the quality of each individual unit, e.g. through temperature cycling burn-in testing. -

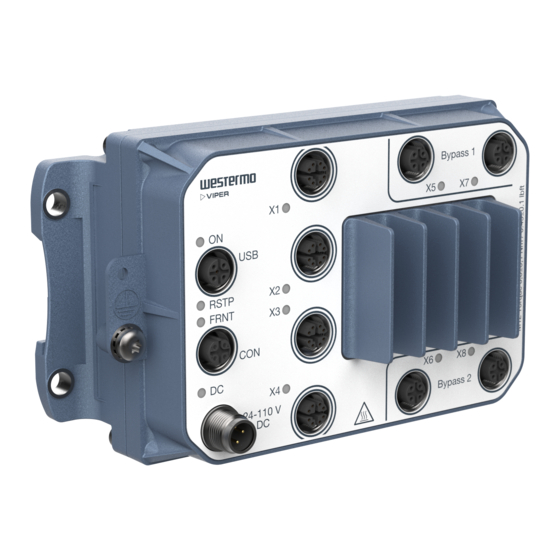

Page 10: Hardware Overview
Figure 3. Location of interface ports and LED indicators Description Description LED indicator Gbps port GORE-TEX ventilation membrane on 100 Mbps port (T4G models only, the rear side Gbps port on T8G models) Power connection Console port Protective earth connection USB port Viper TBN Series... -
Page 11: Connector Pinout
-COM Table 4. Power connector Pin no. Signal Illustration No Connect. Do not connect. Table 5. Console connector Pin no. Signal Illustration VBUS No Connect. Do not connect. Table 6. USB connector Viper TBN Series... -
Page 12: Bypass Functionality
The ports are cross-coupled when in bypass. This is since the main use cases require the use of fixed MDI/MDIX settings. During power loss and connection of the two adjacent switches, the intent is to compensate for the fixed MDI/MDIX settings. Viper TBN Series... - Page 13 X7.3 X5.2 X7.4 X5.3 X7.1 X5.4 X7.2 X5.5 X7.8 X5.6 X7.7 X5.7 X7.6 X5.8 X7.5 X6.1 X8.3 X6.2 X8.4 X6.3 X8.1 X6.4 X8.2 X6.5 X8.8 X6.6 X8.7 X6.7 X8.6 X6.8 X8.5 Table 10. Bypass interfaces Viper TBN Series...
- Page 14 Normally, the Viper can handle longer distances, up to 150 m (500 ft), but this can not be guaranteed and has to be investigated case by case. Cable length data is valid for CAT5e cable. Switch 1 Switch 2 Switch 3 Figure 4. Bypassing of Viper Viper TBN Series...
-
Page 15: Led Indicators
GREEN Data traffic indication FLASH YELLOW Port alarm, or port is set in blocking state by link redundancy protocol L1 to L2 Relays in bypass mode GREEN Relays connected to unit (no bypass) Table 11. LED indicators Viper TBN Series... -
Page 16: Dimensions
3.7. Dimensions Dimensions are stated in mm and applies to both models. 164 ±0,5 82 ±5 Grounding point Screw M5x10 Figure 5. Dimensional drawing Viper TBN Series... -
Page 17: Installation
[17]. For easy replication of the configuration of the original product, it is recommended to have the Westermo USB plug permanently connected to the USB port and move it over to the replacement product before it is powered up. MTTR (Mean Time To Repair), i.e. time for replacement of product is: < 8 minutes. -
Page 18: En 45545-2 Mounting Notes
4.5. EN 45545-2 Mounting Notes Two product can be mounted together and as a single interior non-listed group in the sense of EN 45545-2 definitions. For multiple product, the spacing requirements for interior non-listed groups must be met. Viper TBN Series... -
Page 19: Specifications
Up to 150 m with CAT5e cable or better ≥20 MΩ at 500 VDC Isolation Connector 4-pin, female, M12, D-coded, auto MDI/MDI-X, recommended Westermo cables: 3146-1100 M12-M12 - 1 m 3146-1101 M12-M12 - 5 m 3146-1103 RJ45-M12 - 1 m... - Page 20 Electrical specification USB 2.0 host interface Data rate Up to 480 Mbps (high-speed mode) Maximum supply current 500 mA Connector 5-pin, female, M12, A-coded, recommended Westermo USB plug 3641-0190 Console port Electrical specification RS-232 Data rate 115.2 kbit/s Data format 8 data bits, no parity, 1 stop bit, no flow control ≥20 MΩ...
-
Page 21: Type Tests And Environmental Conditions
Ethernet ports to 2250 VDC, 1 min all other ports Gbps Ethernet 2250 VDC, 1 min ports to all other ports 750 VDC after damp heat, according to EN 50155 Table 12. EMC and electrical conditions Viper TBN Series... - Page 22 Operational at +85°C for a limited time Provided all connectors are connected with IP66 and IP67 cablings or fitted with protective caps (delivered with the unit) and tightened to the specified torque. Table 13. Environmental and mechanical conditions Viper TBN Series...
-
Page 23: Revision Notes
6. Revision Notes Revision Date Change description Rev. B 2019-06 3.1 Product Description updated, 4.4 Replacement of Product updated Rev. A 2018-03 First version Viper TBN Series... - Page 24 Westermo • SE-635 35 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6635-2200 REV. B 2019 06 Westermo Network Technologies AB, Sweden...
