- Page 1 User Guide 6641-2252 Viper-12-PoE s e r i e s RST P FRN T CO N X1 2 12-port Ethernet M12 switch with Power over Ethernet www.westermo.com...
-
Page 2: License Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not cover or bring mechanical force to the ventilation membrane on the back of the unit. if the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. -
Page 4: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Type Approval / Compliance eN 61000-6-1, immunity residential environments eN 61000-6-2, immunity industrial environments eN 61000-6-4, emission industrial environments eN 55022, emission iT equipment eN 55024, immunity iT equipment eN 50121-3-2, railway applications – rolling stock – apparatus eN 50121-4 / ieC 62236-4, railway signaling and telecommunications apparatus FCC part 15 Class A safety... -
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no 12-port managed Ethernet M12 PoE Viper-112-P8, -212-P8 3641-0580, -0590 Switch... -
Page 6: Type Tests And Environmental Conditions
Type tests and environmental conditions Environmental phenomena Basic standard Description Test levels eN 61000-4-2 enclosure Contact: ±6 kV Air: ±8 kV Fast transients eN 61000-4-4 Power port ±4 kV ethernet ports ±2 kV earth port ±1 kV L-e: ±0.5 kV, 12 Ω, 9 μF, 1.2/50 μs surge eN 61000-4-5 Power port... -
Page 7: Product Models
Description Designed for harsh industrial environments The Viper-12-Poe series is a series of managed rugged ethernet switches with Power over ethernet, designed for applications with severe operating conditions and extreme environments. With an ultra robust design, sealed to iP65 and vibration resistant to and exceeding... -
Page 8: Interface Specifications
Other ethernet ports, 1500 VAC rms (not between Poe ports) UsB and CON, 1500 VAC rms DC, 1500 VAC rms Connection 4-pin M12 D-code, auto MDi/MDi-X, use e g Westermo cable 3146-1100 M12-M12 – 1 m 3146-1101 M12-M12 – 5 m 3146-1103 rJ45-M12 – 1 m 3146-1104 rJ45-M12 –... - Page 9 Max 30.8 W on one port Max 61.6 W in total on all ports * Note! As delivered by Power sourcing equipment, i e the Viper-12-Poe switch. Power available at Powered Device is depending on cable resistance. Note that Poe ports will not deliver any power for a certain time when a 10 ms interruption occurs on the power input.

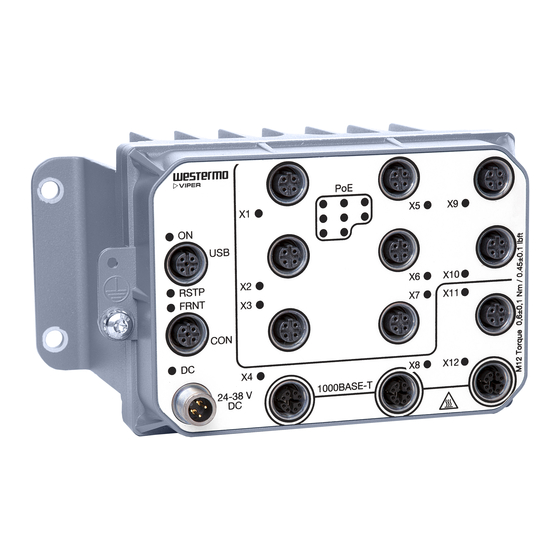

- Page 10 Location of interface ports and LED’s Viper-112-P8 and Viper-212-P8 LED indicators Ethernet connection TX (X1 – X12) (for details see page 13) (for details see page 8 and 11) RSTP FRNT Earth Power connection connection for details see page 8 and 11) Location of interface ports and LED’s Viper-112-T3G-P8 and Viper-212-T3G-P8 LED indicators...
- Page 11 No 1 +DC1 No 2 +DC2 No 3 -COM No 4 -COM Viper-12-Poe supports redundant power connection. The positive inputs are +DC1 and +DC2, the negative input for both supplies are –COM. Pin number Signal No 1 No 2 VBUs...
-
Page 12: Connection To Console Port
The UsB port can be used to copy configuration and log files to/from the switch. The following steps needs to be taken 1. Connect the UsB plug (use Westermo UsB plug 3641-0190) to the UsB port. 2. Access the switch CLi (via console cable or ssH) 3. -
Page 13: Led Indicators
LED Indicators Status Description Unit has no power. GreeN All OK, no alarm condition. Alarm condition, or until unit has started up. (Alarm conditions RSTP are configurable, see ''WeOs FRNT Management Guide''). BLiNK Location indicator ("Here i am!"). Activated when connected to iPConfig Tool, or when configur- ing the unit via Web or CLi. -
Page 14: Wall Mounting
Wall mounting There are four 6 mm bore holes intended for mounting the unit. The unit can be mount- ed vertical or horizontal. Use four M5 screws with 12 mm washer on a flat and stable surface. RSTP FRNT Connection of cables recommended tightening torque for the M12 connectors: 0.6 Nm Removal Disconnect all cables and unscrew the unit from the wall. -
Page 15: Getting Started
• IPConfig tool This is a custom Westermo tool used for discovery of attached Westermo units. Note! Version of iP Config tool must be 10.4.0 or higher. • Web Configuration of the unit using the web browser. -
Page 16: Referring Documents
Referring documents Type Description Document number Management Guide Westermo Os management guide 6101-3201 Factory reset it is possible to set the unit to factory default settings by using two standard ethernet M12 cables. 1. Power off the switch and disconnect all ethernet cables. - Page 17 Dimensions Measurements are stated in millimeters. Description Date Designer Approved Created 130225 PaPu ToDu 177 ±1,5 110,7 ±1,5 164 ±1 99,3 ±1,5 142 ±1 11 ±1 73,5 48,8 23,3 6,5 - 0,5(4x) 6,7 ±1 Pos No Quantity Description Designation / Dimension Material / Remark Denomination Designer...
- Page 20 Tel: +86 21 6145 0400 • Fax: +86 21 6145 0499 Tel: +33 1 69 10 21 00 • Fax: +33 1 69 10 21 01 sales.cn@westermo.com • www.cn.westermo.com infos@westermo.fr • www.westermo.fr Westermo Teleindustri AB have distributors in several countries, contact us for further information.
