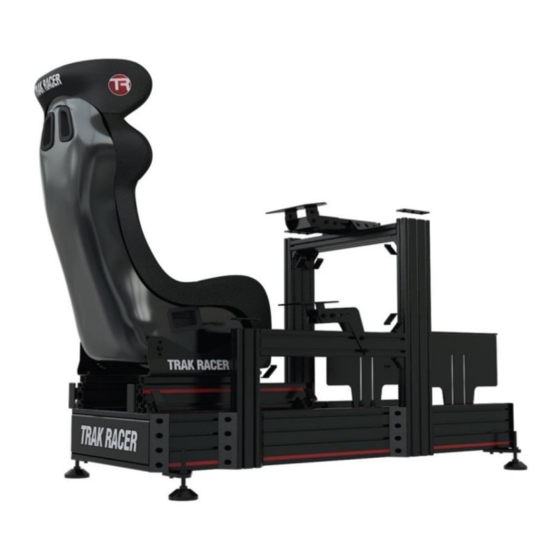

STEP 1 Let’s start building your new simracing rig! Lay out all the individual parts as shown below Note: this list excludes the wheelmount parts those parts can be found on page 12/13/14...
Page 3
Note: in some steps we notify you when longer bolts are needed instead of the standard M8x16. If no bolt size is mentioned the standard M8x16 bolt should be used. STEP 2 Lay down the 1400mm profiles next to each other and remove the red striping from the main profiles.
Page 4
STEP 3 Attach the feet to the main profiles using the listed parts, as shown below The profiles and feet should look like shown in the bottom picture after assembly. Note: M8x25 bolts need to be used on this step. Caster wheels are optional (TR80-WHEELSET)
Page 5
STEP 4 Add the listed parts to the 500mm middle profile before placing it inbetween as shown below Note: make sure to break off the taps in the corner brackets with a flat screwdriver if don’t they sit flush on the aluminium profile as demonstrated here...
Page 6
STEP 5 Attach the 500mm end profile with the listed parts as shown below Note: M8x25 bolts need to be used on this step. the branded plate can be mounted as optional by sliding it in from the side before attaching it to the build. When you completed step 5 your build should look like this:...
Page 7
STEP 6 Place two 580mm profiles on top of the existing square as shown below Note: its usefull to have the cornerbracket all the way to both ends to create a perfect square. This wil help with aligining the seatrails in step 7 After adding the parts in step 6 your build should look like this:...
Page 8
STEP 7 Add the seat slider and brackets as shown below. After fitting the leaver, test if the rails can slide easily without any rubbing. Note:If you are a tall person its advised to use mount the rails as shown below. If you are short its advised to mount the rails on the most forward end of the profile.
Page 9
STEP 8 add the seat (GT style shown below) to the bracket and test if you can freely adjust your seating position with the leaver. Note: If this doesn’t go smoothly realign the seatbrackets to have it mounted without any in or outwards tension. STEP 9 Add the 780mm profiles with the listed parts as shown below.
Page 10
STEP 10 Add the 580mm and 400mm profile with the listed parts as shown below. Note: right side is illustrated but you could also choose to mount this on the left side. Optional: If you want to mount an extra profile this part can be ordered online with TR80-SMEX-BLK partnumber:...
Page 11
STEP 11 Attach the shiftermount to the frame with the listed parts as shown below. Note: 4x M8x20 bolts should be used to mount the shiftermount to the L shaped bracket. 4x M8x16 is used to secure the L shaped bracket to the profile. Before fully tightening the shiftermount see below for adjustability options.
Page 12
STEP 12 This step is for the TR160 with the normal wheeldeck Follow step 13 for the DD wheeldeck or step 14 for Fanatec DD Wheeldeck. Note: for more detailed assembly steps of this wheelmount please consult the TR80-WM-BLK-1 manual online.
Page 13
STEP 13 This step is for the TR160 with the direct drive wheeldeck Note: for more detailed assembly steps of this wheelmount please consult the TR80-DDM manual online.
Page 14
STEP 14 This step is for the TR160 with the Fanatec direct drive wheeldeck Note: for more detailed assembly steps of this wheelmount please consult the TR80-FANDDWM manual online.
Page 15
Following step 16 before adding the pedalplate can be done also (depending on personal preference). Note: a raised pedalplate(as pictured here) for a formula pedal position can be used optional and ordered with partnumber: TR160-F1PEDALUP...
Page 16
STEP 16 Slide the T - Nuts into the main profiles and tighten the upright structure with the handles as shown below.
Page 17
The pedalplate can be adjusted towards your likings as shown below Almost there! Now its time to personalize the seating/wheelmount and pedalplate towards your likings. Every component can be adjusted to personal preference as shown below.
Page 18
Also measure up the red lining and cut this to desired lengths to fit the profile on desired spots. That’s it, you are done! We wish you a lot of fun with your freshly built simulator. Thank you for choosing Trak Racer...
