CalAmp Vanguard 5530 Quick Start Manual

MODEM NETWORK CONNECTION
After the modem has been successfully provisioned and, if applicable, the SIM card has
been accepted, a data connection can be enabled. The SVC LED will indicate when the
cellular connection has been established.
 Steady green indicates a 4G connection.
 Steady amber indicates a 2G/3G connection.
Return to the modem's Unit Status page to verify WAN Status is UP. The WAN IP Address
shows the current IP address assigned to the modem and you are ready to browse the
Web.
BASIC PACKAGE

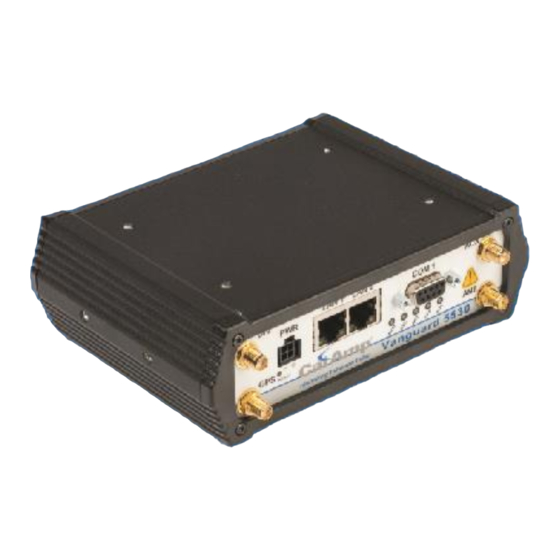

Vanguard 5530 mobile Cellular
Router with GPS and Wi-Fi
Includes one (1) of each item below.
 This Quick Start Guide
(PN 134665-V5530M)
 22 ft. (6,7 m) Fused Power Cable
(PN 150-7001-002)
 Mounting Bracket
U-bracket for top or bottom
mounting*
(PN 817-2225-900)
 22 Pin I/O Cable (PN 5C889)
* U-bracket includes four #8-32 × ½ (3/8-inch tread length) black plated stainless steel slotted hex flange cap
screws to fasten the bracket to the sides of the Vanguard chassis.
ACCESSORY KIT (PN 134751-V5530M)
 110-220 VAC 3-wire Power Supply
(PN 150-7001-005)
 4 in. (10 cm) plastic "Rubber Duck" antenna
(PN 4GF546-8113)
 GPS SMA Mag Mount Antenna
(PN 401-7100-003)

Wi-Fi 7.75 in. Mag Mount Antenna
(PN 401-7100-004)

DB-9 Male to DB-9 Female Serial Cable
(PN L2CAB0002)

Category 5 100Base 7 ft. (2 m)
Red Ethernet Cable
(PN L2CAB0006)
MINIMUM REQUIREMENTS
Interface and configuration of this cellular device requires a user PC with an Ethernet
interface, Microsoft Windows 98 or newer, and a web browser.
Any changes or modifications not expressly approved by the party responsible for compliance (in the country
where used) could void the user's authority to operate the equipment.
CalAmp reserves the right to update its products, software or documentation without obligation to notify any
individual or entity. Product updates may result in differences between the information provided and the
product shipped. For access to the most current product documentation and application notes, visit
www.calamp.com.
UL LISTED MODELS ONLY
Hazardous locations installation instructions. Users are advised to visit
where they can download the complete user manual and review Appendix C – UL
Installation Instructions.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or non-
hazardous locations only.
WARNING — EXPLOSION HAZARD, Do not connect while circuit is live unless
area is known to be non-hazardous.
WARNING –- EXPLOSION HAZZARD, Substitution of components may impair
suitability for Class I, Division 2.
ddddddddd
When operating at elevated temperature extremes, the surface may exceed
+70 Celsius. For user safety, the Vanguard should be installed in a restricted
access location.
The Unit is to be powered with a Listed Class 2 or LPS power supply, rated 10 – 30 Vdc
or equivalent.
Device is open-type and must be installed in a tool only accessible enclosure suitable
for the environment.
All wiring routed outside the housing, except for the antenna, must be installed in
grounded conduit, following acceptable wiring methods based on installation location
and electrical code.
The USB and SIM connector is for temporary connection only during maintenance and
setup of the device. Do not use, connect, or disconnect unless area is known to be non-
hazardous. Connection or disconnection in an explosive atmosphere could result in an
explosion.
Do not operate reset switch unless area is known to be non-hazardous.
1401 North Rice Avenue
Oxnard, CA 93030
Tel: 800-992-7774
email: productsupport@calamp.com
www.calamp.com
© 2012-2015 CalAmp
PN 134665-VG5530M Rev B
Revised July 2015
