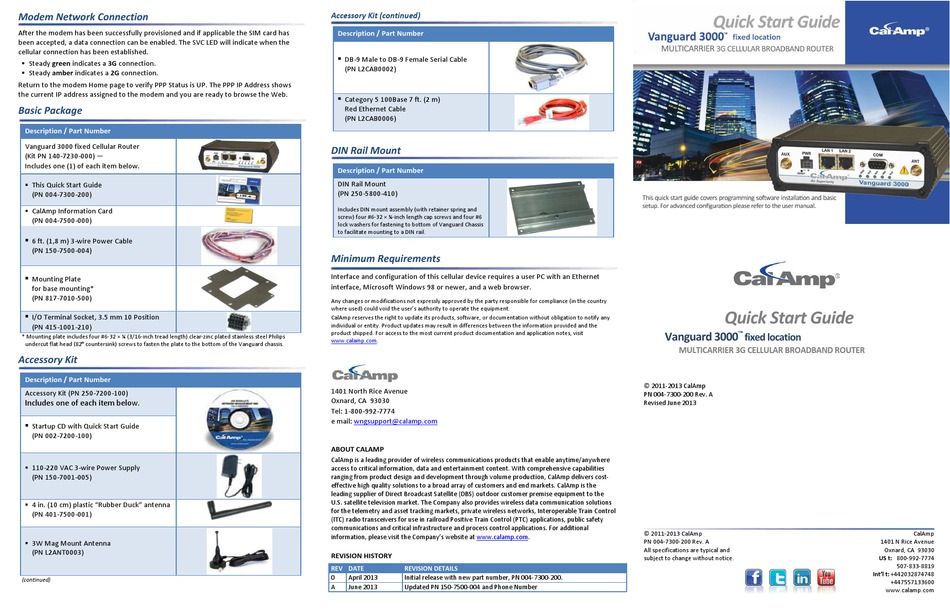

CalAmp Vanguard 3000 Quick Start Manual

Modem Network Connection
After the modem has been successfully provisioned and if applicable the SIM card has
been accepted, a data connection can be enabled. The SVC LED will indicate when the
cellular connection has been established.
 Steady green indicates a 3G connection.
 Steady amber indicates a 2G connection.
Return to the modem Home page to verify PPP Status is UP. The PPP IP Address shows
the current IP address assigned to the modem and you are ready to browse the Web.
Basic Package
Description / Part Number
Vanguard 3000 fixed Cellular Router
(Kit PN 140-7230-000) —
Includes one (1) of each item below.
 This Quick Start Guide
(PN 004-7300-200)
 CalAmp Information Card
(PN 004-7500-000)
 6 ft. (1,8 m) 3-wire Power Cable
(PN 150-7500-004)
 Mounting Plate
for base mounting*
(PN 817-7010-500)
 I/O Terminal Socket, 3.5 mm 10 Position
(PN 415-1001-210)
* Mounting plate includes four #6-32 × ¼ (3/16-inch tread length) clear-zinc plated stainless steel Philips
undercut flat head (82° countersink) screws to fasten the plate to the bottom of the Vanguard chassis.
Accessory Kit
Description / Part Number
Accessory Kit (PN 250-7200-100)
Includes one of each item below.
 Startup CD with Quick Start Guide
(PN 002-7200-100)
 110-220 VAC 3-wire Power Supply
(PN 150-7001-005)
 4 in. (10 cm) plastic "Rubber Duck" antenna
(PN 401-7500-001)
 3W Mag Mount Antenna
(PN L2ANT0003)
(continued)
Accessory Kit (continued)
Description / Part Number

DB-9 Male to DB-9 Female Serial Cable
(PN L2CAB0002)

Category 5 100Base 7 ft. (2 m)
Red Ethernet Cable
(PN L2CAB0006)
DIN Rail Mount
Description / Part Number
DIN Rail Mount
(PN 250-5800-410)
Includes DIN mount assembly (with retainer spring and
screw) four #6-32 × ¼-inch length cap screws and four #6
lock washers for fastening to bottom of Vanguard Chassis
to facilitate mounting to a DIN rail.

Minimum Requirements

Interface and configuration of this cellular device requires a user PC with an Ethernet
interface, Microsoft Windows 98 or newer, and a web browser.
Any changes or modifications not expressly approved by the party responsible for compliance (in the country
where used) could void the user's authority to operate the equipment.
CalAmp reserves the right to update its products, software, or documentation without obligation to notify any
individual or entity. Product updates may result in differences between the information provided and the
product shipped. For access to the most current product documentation and application notes, visit
www.calamp.com.
