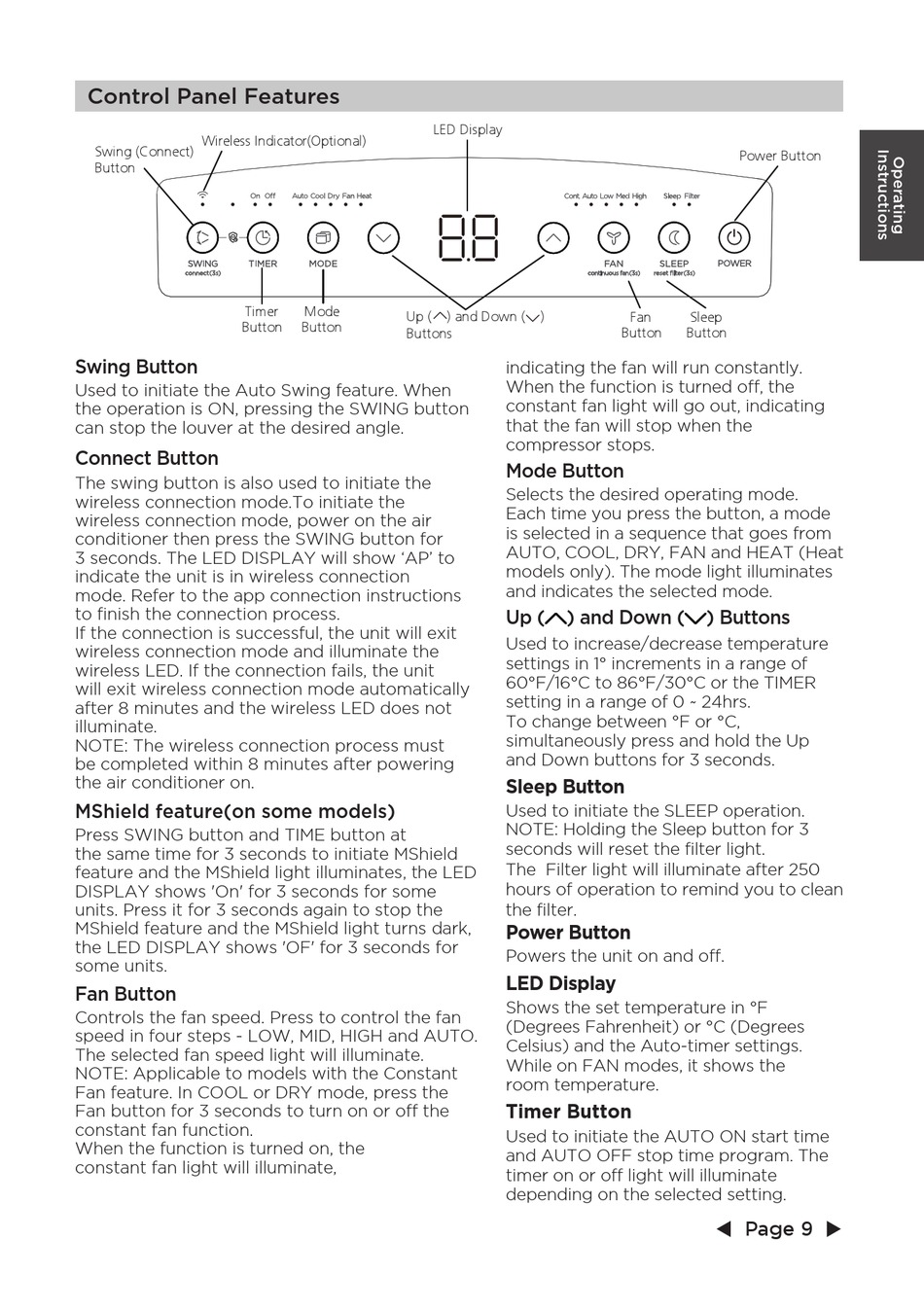

Control Panel Features
Wireless Indicator(Optional)
Swing (Connect)
Button
Timer
Button
Swing Button
Used to initiate the Auto Swing feature. When
the operation is ON, pressing the SWING button
can stop the louver at the desired angle.
Connect Button
The swing button is also used to initiate the
wireless connection mode.To initiate the
wireless connection mode, power on the air
conditioner then press the SWING button for
3 seconds. The LED DISPLAY will show 'AP' to
indicate the unit is in wireless connection
mode. Refer to the app connection instructions
to finish the connection process.
If the connection is successful, the unit will exit
wireless connection mode and illuminate the
wireless LED. If the connection fails, the unit
will exit wireless connection mode automatically
after 8 minutes and the wireless LED does not
illuminate.
NOTE: The wireless connection process must
be completed within 8 minutes after powering
the air conditioner on.
MShield feature(on some models)
Press SWING button and TIME button at
the same time for 3 seconds to initiate MShield
feature and the MShield light illuminates, the LED
DISPLAY shows 'On' for 3 seconds for some
units. Press it for 3 seconds again to stop the
MShield feature and the MShield light turns dark,
the LED DISPLAY shows 'OF' for 3 seconds for
some units.
Fan Button
Controls the fan speed. Press to control the fan
speed in four steps - LOW, MID, HIGH and AUTO.
The selected fan speed light will illuminate.
NOTE: Applicable to models with the Constant
Fan feature. In COOL or DRY mode, press the
Fan button for 3 seconds to turn on or off the
constant fan function.
When the function is turned on, the
constant fan light will illuminate,
LED Display
Mode
Up ( ) and Down (
Button
Buttons
) Fan
Button
indicating the fan will run constantly.
When the function is turned off, the
constant fan light will go out, indicating
that the fan will stop when the
compressor stops.
Mode Button
Selects the desired operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
AUTO, COOL, DRY, FAN and HEAT (Heat
models only). The mode light illuminates
and indicates the selected mode.
Up ( ) and Down (
Used to increase/decrease temperature
settings in 1° increments in a range of
60°F/16°C to 86°F/30°C or the TIMER
setting in a range of 0 ~ 24hrs.
To change between °F or °C,
simultaneously press and hold the Up
and Down buttons for 3 seconds.
Sleep Button
Used to initiate the SLEEP operation.
NOTE: Holding the Sleep button for 3
seconds will reset the filter light.
The Filter light will illuminate after 250
hours of operation to remind you to clean
the filter.
Power Button
Powers the unit on and off.
LED Display
Shows the set temperature in °F
(Degrees Fahrenheit) or °C (Degrees
Celsius) and the Auto-timer settings.
While on FAN modes, it shows the
room temperature.
Timer Button
Used to initiate the AUTO ON start time
and AUTO OFF stop time program. The
timer on or off light will illuminate
depending on the selected setting.
Power Button
Sleep
Button
) Buttons
