Watts 2300 Series Installation Instructions Manual

ENGLISH INSTRUCTIONS
Series 2300

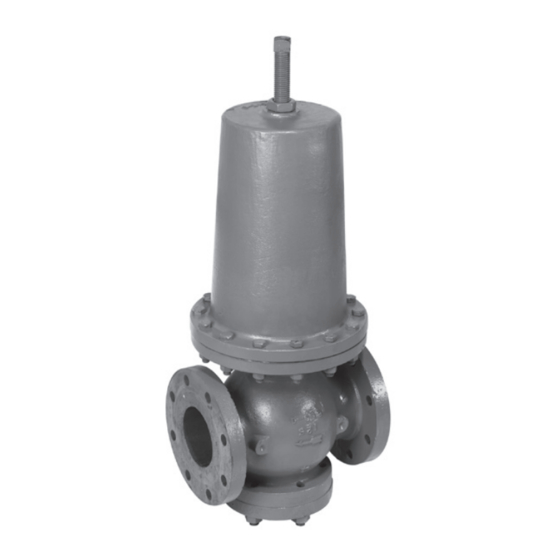

Water Pressure Reducing Valve
Sizes: 3"– 4" (80-100mm)
WARNING
!
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use information
can result in death, serious personal injury, property
damage, or damage to the equipment.
Keep this Manual for future reference.
WARNING
!
Local building or plumbing codes may require modifica-
tions to the information provided. You are required to
consult the local building and plumbing codes prior
to installation. If the information provided here is not
consistent with local building or plumbing codes, the
local codes should be followed. This product must be
installed by a licensed contractor in accordance with
local codes and ordinances.
WARNING
!
Need for Periodic Inspection/Maintenance: This product
must be tested periodically in compliance with local codes,
but at least once per year or more as service conditions
warrant. All products must be retested once maintenance
has been performed. Corrosive water conditions and/or
unauthorized adjustments or repair could render the product
ineffective for the service intended. Regular checking and
cleaning of the product's internal components helps assure
maximum life and proper product function.
RATED FLOW COEFFICIENTS (Cv)
Valve Size
3
C 32
v
SIZE ANSI
IN. MM NPT
3 80 —
4 100 —
4
52
DIMENSIONS (inches) AND WEIGHTS (pounds)
FACE TO FACE
E
ANSI ANSI
125 250
10 10 ⁄
3
4
11 ⁄ 12 ⁄
7 1
8 2
Installation Instructions:
The 2300 Direct Operated Reducing Valve is designed for dead-
end water service where the flow is intermittent and changes
rapidly, as on domestic water systems. It is especially effective
in regulating the flow of water to such fast acting equipment as
flushometers and snap cocks. The design is self contained, no
control pipe is required.
The preferred position for the 2300 is in a horizontal line with the
spring chamber up. When so mounted, the tendency of sedi-
ment to settle in the control ports is practically eliminated.
RATINGS (Maximum Inlet Conditions)
Valve Ends
❑
ANSI 250 Flanged
SPRING RANGES
❑ 30 to 80 psig (207-552 kPa)
OTHER DIMENSIONS
A B C
6 21 ⁄ 9
3
4
6 ⁄ 26 ⁄ 11 ⁄
5 5 1
8 8 4
Series 2300
Pressure Bar (Temperature)
200 psig 13.8 (200°F) 93°C
APPROX. WEIGHT
ANSI ANSI ANSI
NPT 125 250
— 108 128
198 225
IS-2300
