Installation, Operation and
Maintenance Manual
Deringer
™
Double Check Valve/Double
Check Detector Assemblies
Size: 20/30: 6"&8"
20X/30X: 4"&6"
WA R NI N G
!
Read this manual BEFORE using this equipment.
Failure to read and follow all safety and use information can
result in death, serious personal injury, property damage, or
damage to the equipment.
Keep this manual for future reference.
WARNING
!
You are required to consult the local building and plumbing
codes prior to installation. If the information in this manual
is not consistent with local building or plumbing codes,
the local codes should be followed. Inquire with governing
authorities for additional local requirements.
20/20X/30/30X
IOM-A-Deringer 20/20X/30/30X_6-8
Advertisement
Related Manuals for Watts AMES Deringer 20X
Summary of Contents for Watts AMES Deringer 20X

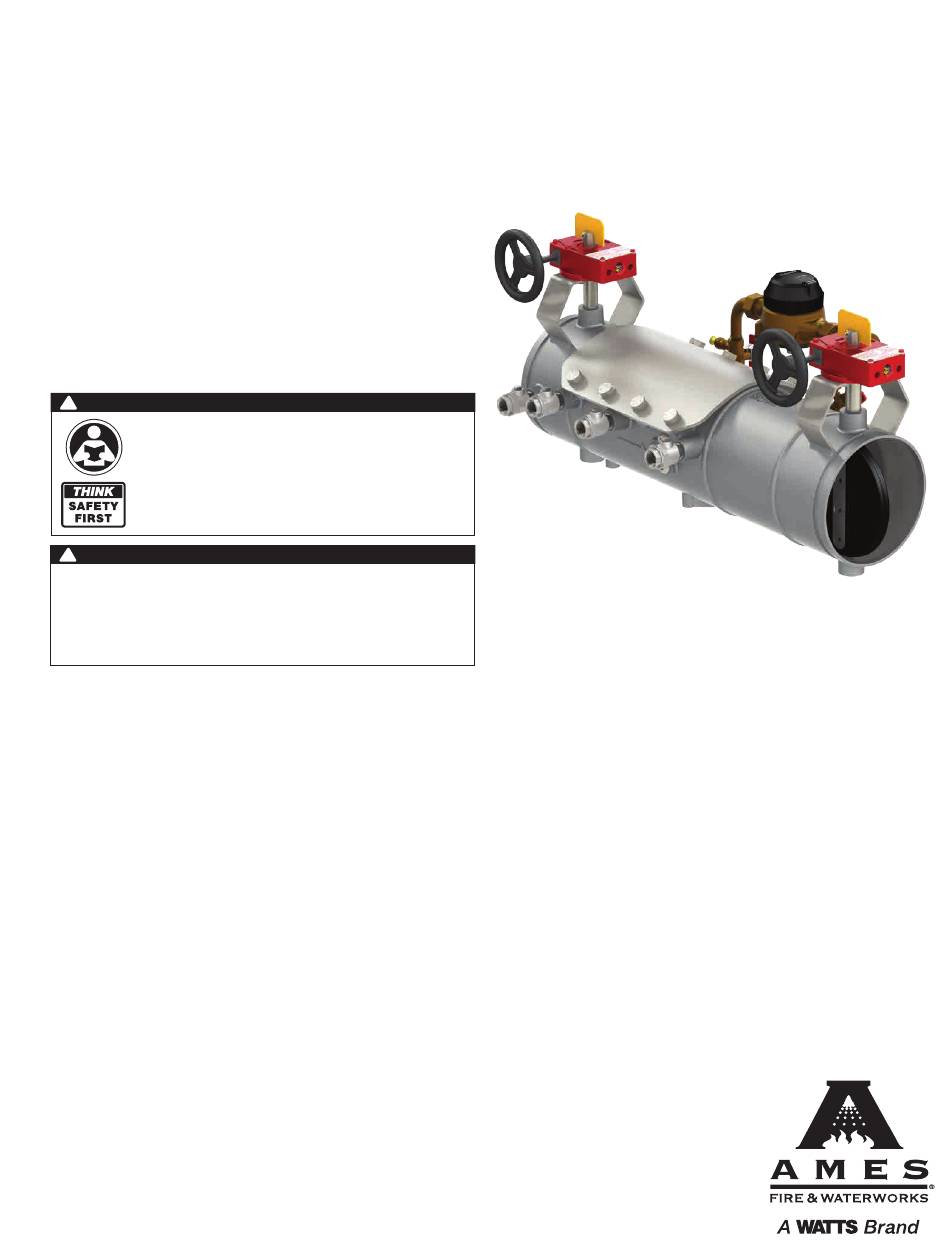

- Page 1 IOM-A-Deringer 20/20X/30/30X_6-8 Installation, Operation and Maintenance Manual Deringer 20/20X/30/30X ™ Double Check Valve/Double Check Detector Assemblies Size: 20/30: 6"&8" 20X/30X: 4"&6" WA R NI N G Read this manual BEFORE using this equipment. Failure to read and follow all safety and use information can result in death, serious personal injury, property damage, or damage to the equipment.
-
Page 2: Tools Required
#2 Flathead Screwdriver #2 Phillips Head Screwdriver Ratchet Adjustable Wrench Deringer Test Cock Wrench Slip-joint Pliers " Socket Wood Block 2" x 4" x 5" Wood Block 1" x 2" x 16" " Socket IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts... - Page 3 1. 6. Using the Deringer test cock Main Test Cock Bypass Test Cock wrench or a small adjustable wrench open main test cock number 2. Closed Open Closed Open IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 4 (C), gently push the second check module in the upstream direction until the second check module can easily be removed from the access port by hand. FLOW IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 5 2. Remove disk retaining washer (B). 6. Reverse the order of the instructions on the previous page to 3. Use a flathead screwdriver to remove the gasket from reassemble bypass check assembly. poppet cavity (C). IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 6 • Elastomer disk must be flat in clapper (H) cavity before 3. Should elastomer disk (D) need replacement unscrew disk tightening disk retainer screws (F). retainer screws (F) and remove disk retainer (G). Carefully • Do not cross thread disk retaining screws (F). IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 7 Orient seat protrusions as shown the seat. In order to maintain the performance of the valve pay attention to the proper orientation of the check module. Tower Bosses Spring Arms IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 8 The second check module must be fully seated to ensure retainer screws do not bind against check seat. Binding retainer screws against check seat will result in permanent damage to second check modules. Binding Not Binding FLOW IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 9 The first check module must be fully seated to ensure FLOW retainer screws do not bind against check towers. Binding retainer screws against check towers will result in permanent damage to first check modules. Binding Not Binding IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 10 4. Double check to be certain of the following: • All cover bolts are tightened (E) • Deringer 30/30X: Bypass check valve cover is tightened (F) FLOW • Deringer 30/30X: Bypass meter coupling nuts are tightened (G) Open Closed Open Closed IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 11 2. Slowly rotate the number 2 shutoff valve operation handle (B) counter clockwise to the open position. NOTICE Yellow/Orange Position Indicator Flags must be parallel to mainline water flow for Backflow Valve to be functional (C). FLOW IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
- Page 12 USA: Backflow T: (978) 689-6066 • F: (978) 975-8350 • AmesFireWater.com USA: Control Valves T: (713) 943-0688 • F: (713) 944-9445 • AmesFireWater.com Canada: T: (888) 208-8927 • F: (888) 479-2887 • AmesFireWater.ca Latin America: T: (55) 4122-0138 • AmesFireWater.com IOM-A-Deringer 20/20X/30/30X 2020-05 EDP2916001 © 2020 Watts...
