Installation, Operation and
Maintenance Manual

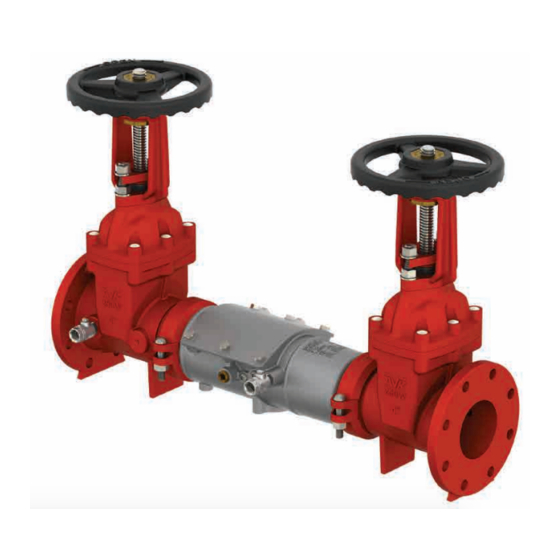

Deringer
™
Double Check Valve/Double
Check Detector Assemblies
Size: 20G/30G: 6"&8"
20GX/30GX: 4"&6"
WA R NI N G
!
Read this manual BEFORE using this equipment.
Failure to read and follow all safety and use information can
result in death, serious personal injury, property damage, or
damage to the equipment.
Keep this manual for future reference.
WARNING
!
You are required to consult the local building and plumbing
codes prior to installation. If the information in this manual
is not consistent with local building or plumbing codes,
the local codes should be followed. Inquire with governing
authorities for additional local requirements.

Tools Required

This list is the recommended tools for installation. Other
versions of the same tool can be used. For example, allen
wrenches instead of allen drive sockets.
#2 Phillips Head Screwdriver
Adjustable Wrench
/ " Socket
15
16
1 / " Socket
1
8
20G/20GX/30G/30GX
#2 Flathead Screwdriver
Deringer Test Cock Wrench
Wood Block 2" x 4" x 5"
Wood Block 1" x 2" x 16"
IOM-A-Deringer 20G/20GX/30G/30GX_6-8
Ratchet
Slip-joint Pliers
