Teltonika FTC961 Quick Manual

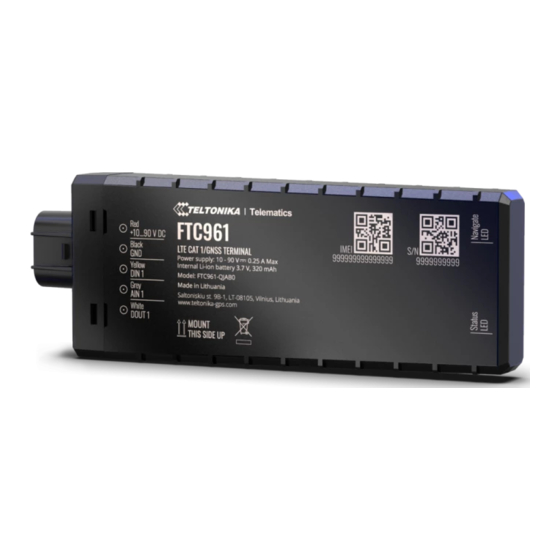

Special and small waterproof tracker
Hide thumbs
Also See for FTC961:
- First start-up quick start manual (2 pages) ,
- Quick manual (21 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Teltonika FTC961
Summary of Contents for Teltonika FTC961
- Page 1 FTC961 Special and small waterproof tracker Quick Manual v1.0...
-
Page 2: Table Of Contents
CONTENT Know your device ........................................3 Pinout ...........................................4 Set up your device ......................................5 PC Connection (Windows) ....................................6 How to install USB drivers (Windows) ................................6 Configuration (Windows) ....................................7 Mounting recommendations.....................................8 Safety information ......................................9 Quick Manual v1.0 // FTC961... -
Page 3: Know Your Device
KNOW YOUR DEVICE BOTTOM VIEW (WITHOUT COVER) TOP VIEW (WITHOUT COVER) TOP VIEW BATTERY NAVIGATE GNSS SOCKET ANTENA STATUS SLOT Quick Manual v1.0 // FTC961... -
Page 4: Pinout
DIN1 DIN1 channel 1. DEDICATED FOR IGNITION INPUT AIN1 (White) Analog input, AIN1 channel 1. Input range: +10...70 V DC 0-70 V DC (Red) Power supply VCC (10-70) VDC (+) (+10-70 V DC) FTC961 pinout Quick Manual v1.0 // FTC961... -
Page 5: Set Up Your Device
Insert SIM card as shown. Make sure Nano-SIM card cut-off corner is pointing towards SIM slot. BATTERY CONNECTION DEVICE IS READY Battery is already connected, so after Device is ready to be mounted. configuring device fully close casing. Quick Manual v1.0 // FTC961... -
Page 6: Pc Connection (Windows)
PC CONNECTION (WINDOWS) Power- up FTC961 with DC voltage (10-70V) power supply using power wires. LEDs should start blinking. “How to install USB drivers (Windows) ” Connect device to computer using Micro-USB cable and install USB driver, see Page 6, "How to install USB drivers"... -
Page 7: Configuration (Windows)
CONFIGURATION (WINDOWS) At first FTC961 device will have default factory settings set. These settings should be changed according to the user's needs. Main configuration can be performed via Teltonika Configurator tool (TCT). wiki.teltonika-gps.com/view/QSG_New_platform MS .NET REQUIREMENTS Operating system MS .NET Framework version... -
Page 8: Mounting Recommendations
If the wire is fixed with the bolt, the loop must be connected to the end of the wire. • Device ground wire is designed to be directly connected to the negative terminal fastener of the vehicle battery. Quick Manual v1.0 // FTC961... -
Page 9: Safety Information
Dispose of used batteries according to the instructions. Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose them to battery recycle bin found in stores. Quick Manual v1.0 // FTC961...
